PTH05030W Series

30 A, 5-V Input Wide-Output Adjust Plug-in Power Module

Catalog

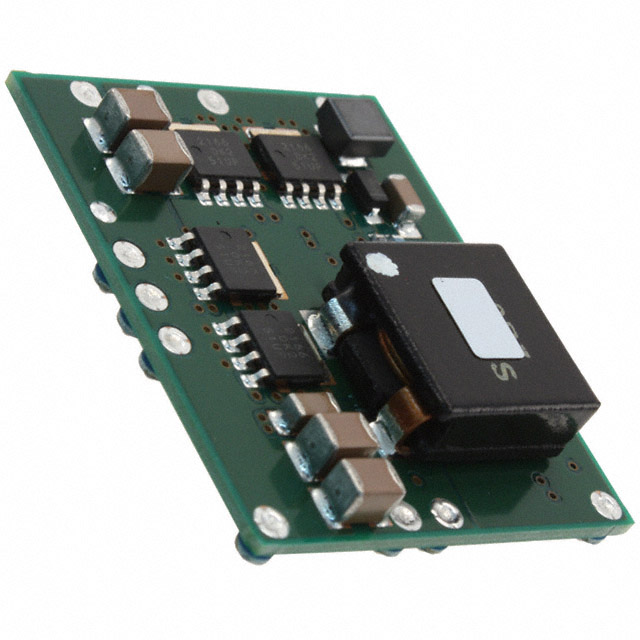

30 A, 5-V Input Wide-Output Adjust Plug-in Power Module

Part	Voltage - Input (Min) [Min]	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Package / Case	Voltage - Input (Max) [Max]	Type	Mounting Type	Number of Outputs	Applications

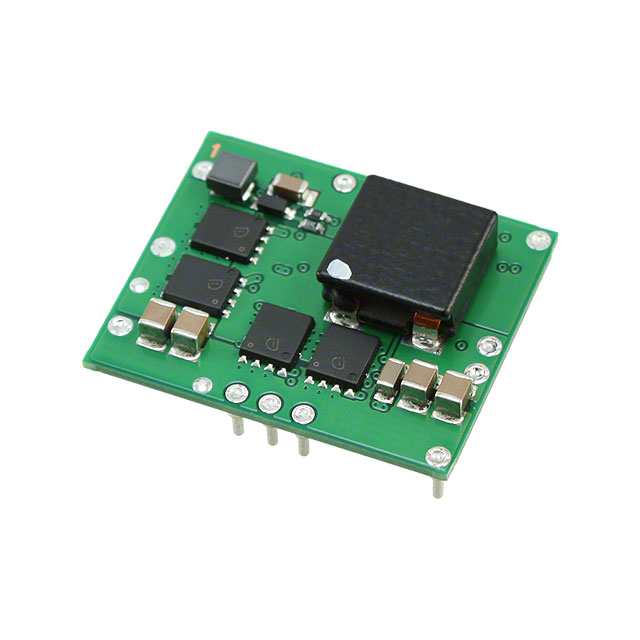

Texas Instruments PTH05030WAH	4.5 V	UVLO	0.35 "	34.8 mm	1.37 in	8.9 mm	1.12 in	28.4 mm	94 %	85 °C	-40 °C	30 A	0.8 V	3.6 V	13-DIP Module	5.5 V	Non-Isolated PoL Module	Through Hole	1	ITE (Commercial)
Texas Instruments PTH05030WAD	4.5 V		0.35 "	34.8 mm	1.37 in	8.9 mm	1.12 in	28.4 mm	94 %	85 °C	-40 °C	30 A	0.8 V	3.6 V	13-DIP Module	5.5 V	Non-Isolated PoL Module	Through Hole	1	ITE (Commercial)
Texas Instruments PTH05030WAST	4.5 V	OCP OTP Remote On/Off UVLO	0.38 in	34.8 mm	1.37 in	9.6 mm	1.12 in	28.5 mm	94 %	85 °C	-40 °C	30 A	0.8 V	3.6 V	13-SMD Module	5.5 V	Non-Isolated PoL Module	Surface Mount	1	ITE (Commercial)
Texas Instruments PTH05030WAS	4.5 V	OCP OTP Remote On/Off UVLO	0.38 in	34.8 mm	1.37 in	9.6 mm	1.12 in	28.5 mm	94 %	85 °C	-40 °C	30 A	0.8 V	3.6 V	13-SMD Module	5.5 V	Non-Isolated PoL Module	Surface Mount	1	ITE (Commercial)
Texas Instruments PTH05030WAZ	4.5 V	OCP OTP Remote On/Off UVLO	0.38 in	34.8 mm	1.37 in	9.6 mm	1.12 in	28.5 mm	94 %	85 °C	-40 °C	30 A	0.8 V	3.6 V	13-SMD Module	5.5 V	Non-Isolated PoL Module	Surface Mount	1	ITE (Commercial)
Texas Instruments PTH05030WAZT	4.5 V	OCP OTP Remote On/Off UVLO	0.38 in	34.8 mm	1.37 in	9.6 mm	1.12 in	28.5 mm	94 %	85 °C	-40 °C	30 A	0.8 V	3.6 V	13-SMD Module	5.5 V	Non-Isolated PoL Module	Surface Mount	1	ITE (Commercial)

Catalog

30 A, 5-V Input Wide-Output Adjust Plug-in Power Module

Key Features

• Up to 30 A Output Current5-V Input VoltageWide-Output Voltage Adjust (0.8 V to 3.6 V)180 W/in³ Power DensityOn/Off InhibitEfficiencies up to 94%Pre-Bias StartupMargin Up/Down ControlsUnder-Voltage LockoutAuto-Track™ SequencingOutput Over-Current Protection (Non-Latching, Auto-Reset)Over-Temperature ProtectionOperating Temp: –40 to +85°CSafety Agency Approvals:UL 1950, CSA 22.2 950, EN60950 VDE (Pending)Point-of-Load Alliance (POLA) CompatibleUp to 30 A Output Current5-V Input VoltageWide-Output Voltage Adjust (0.8 V to 3.6 V)180 W/in³ Power DensityOn/Off InhibitEfficiencies up to 94%Pre-Bias StartupMargin Up/Down ControlsUnder-Voltage LockoutAuto-Track™ SequencingOutput Over-Current Protection (Non-Latching, Auto-Reset)Over-Temperature ProtectionOperating Temp: –40 to +85°CSafety Agency Approvals:UL 1950, CSA 22.2 950, EN60950 VDE (Pending)Point-of-Load Alliance (POLA) Compatible

Description

The PTH05030 is a high-current non-isolated power modules from Texas Instruments. This product is characterized by high efficiencies, and up to 30 A of output current, while occupying a mere 1.64 in² of PCB area. In terms of cost, size, and performance, the series provides OEM’s with a flexible module that meets the requirements of the most complex and demanding mixed-signal applications. These include the most densly populated, multi-processor systems that incorporate high-speed DSP’s, microprocessors, and ASICs. The series uses double-sided surface mount construction and provides high-performance step-down power conversion from a 5-V input bus voltage. The output voltage of the PTH05030W can be set to any value over the range 0.8 V to 3.6 V, using a single resistor. This series includes Auto-Track™. Auto-Track simplifies power-up and power-down supply voltage sequencing in a system by enabling modules to track each other, or any other external voltage. Each model also includes an on/off inhibit, output voltage adjust (trim), and margin up/down controls. An output voltage sense ensures tight load regulation, and an output over-current and thermal shutdown feature provide for protection against external load faults. Package options inlude both through-hole and surface mount connfigurations. The PTH05030 is a high-current non-isolated power modules from Texas Instruments. This product is characterized by high efficiencies, and up to 30 A of output current, while occupying a mere 1.64 in² of PCB area. In terms of cost, size, and performance, the series provides OEM’s with a flexible module that meets the requirements of the most complex and demanding mixed-signal applications. These include the most densly populated, multi-processor systems that incorporate high-speed DSP’s, microprocessors, and ASICs. The series uses double-sided surface mount construction and provides high-performance step-down power conversion from a 5-V input bus voltage. The output voltage of the PTH05030W can be set to any value over the range 0.8 V to 3.6 V, using a single resistor. This series includes Auto-Track™. Auto-Track simplifies power-up and power-down supply voltage sequencing in a system by enabling modules to track each other, or any other external voltage. Each model also includes an on/off inhibit, output voltage adjust (trim), and margin up/down controls. An output voltage sense ensures tight load regulation, and an output over-current and thermal shutdown feature provide for protection against external load faults. Package options inlude both through-hole and surface mount connfigurations.
