ACS724 Series
Manufacturer: Allegro MicroSystems
Beta
⌘K
SENSOR CURRENT HALL 5A 8SOIC
| Part | Current - Sensing | Response Time | Current - Supply (Max) [Max] | Accuracy | Sensor Type | Operating Temperature [Min] | Operating Temperature [Max] | Polarization | Linearity | Output | Sensitivity | Number of Channels [custom] | For Measuring | Supplier Device Package | Current - Sensing [Min] | Current - Sensing [Max] | Package / Case | Package / Case | Package / Case | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Frequency | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Allegro MicroSystems | 5 A | 4 µs | 14 mA | 0.6 % | Hall Effect Open Loop | -40 C | 150 °C | Bidirectional | 1.5 % | Ratiometric Voltage | 400 nF/%RH | 1 | AC DC | 8-SOIC | 0 A | 5 A | 0.154 in | 8-SOIC | 3.9 mm | 5.5 V | 4.5 V | Surface Mount | |||
 Allegro MicroSystems | 10 A | 4 µs | 14 mA | 1 % | Hall Effect Open Loop | -40 C | 150 °C | Unidirectional | 1.5 % | Ratiometric Voltage | 400 nF/%RH | 1 | DC | 8-SOIC | 0.154 in | 8-SOIC | 3.9 mm | 5.5 V | 4.5 V | Surface Mount | 120 kHz | ||||
 Allegro MicroSystems | 12 A | 4 µs | 14 mA | 1 % | Hall Effect Differential | -40 C | 125 °C | Bidirectional | 1 % | Ratiometric Voltage | 166 mV/A | 1 | AC DC | 16-SOIC | 0.295 " | 16-SOIC | 7.5 mm | 5.5 V | 4.5 V | Surface Mount | Automotive | AEC-Q100 | |||

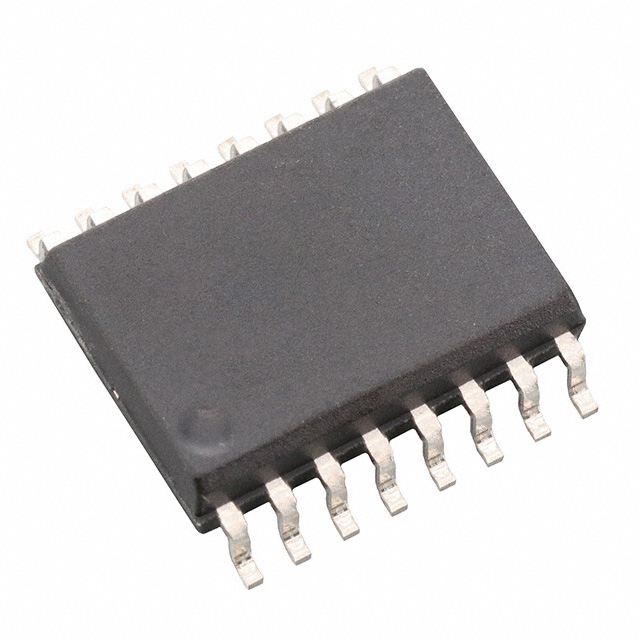

 Allegro MicroSystems | 65 A | 4 µs | 14 mA | 1 % | Hall Effect Differential | -40 C | 150 °C | Bidirectional | 1.5 % | Ratiometric Voltage | 30.75 mV/A | 1 | AC DC | 16-SOIC | 0.295 " | 16-SOIC | 7.5 mm | 5.5 V | 4.5 V | Surface Mount | Automotive | AEC-Q100 |
