629-47W Series
Manufacturer: EDAC Inc.
Beta
⌘K

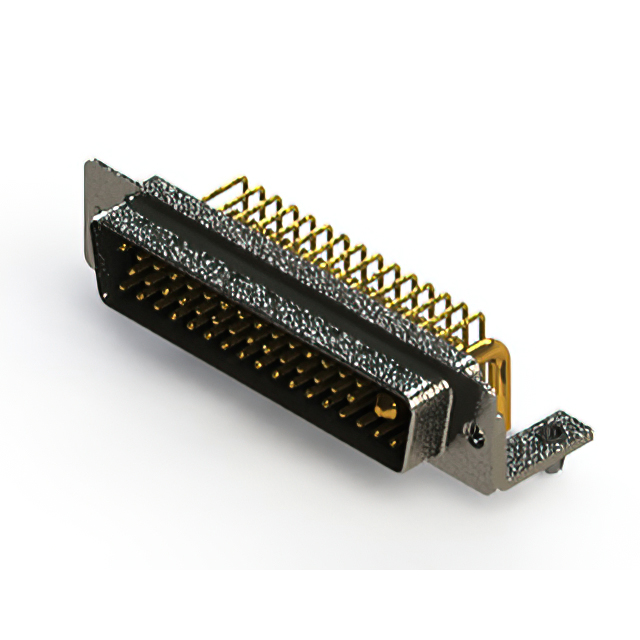

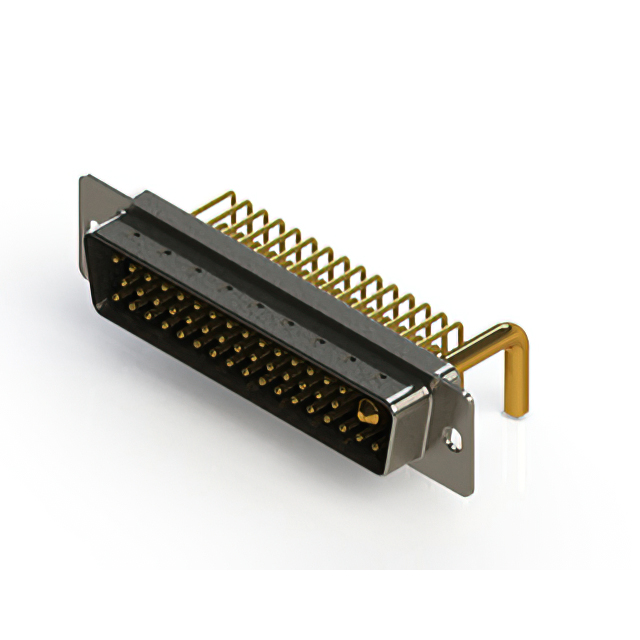

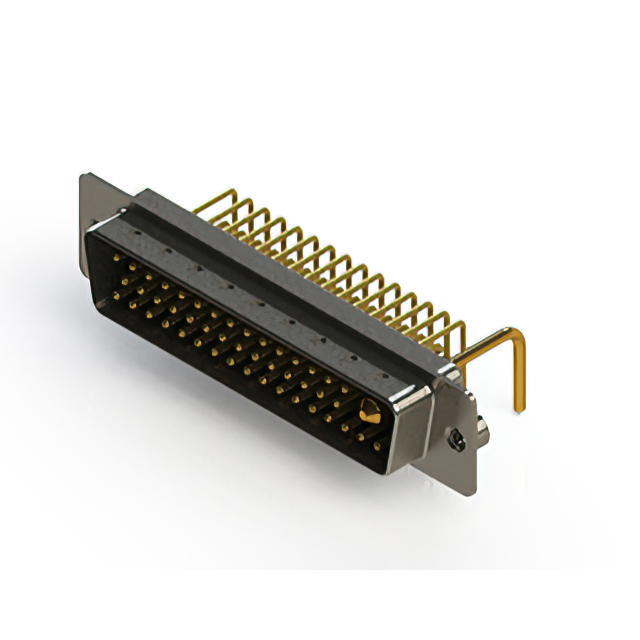

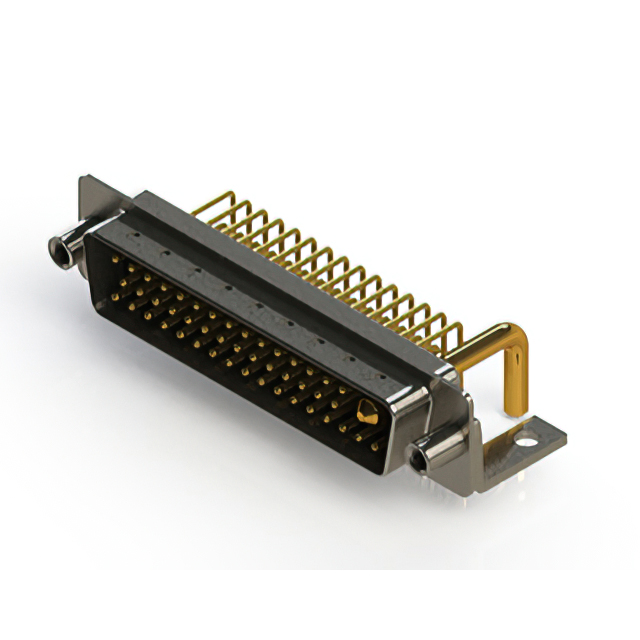

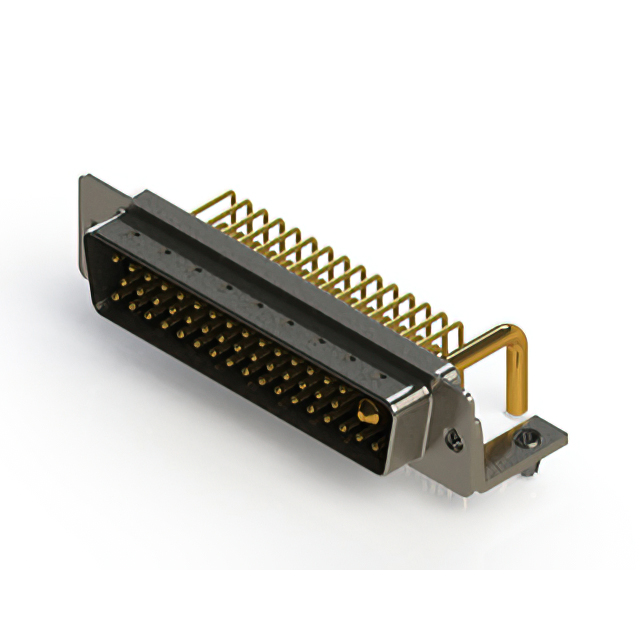

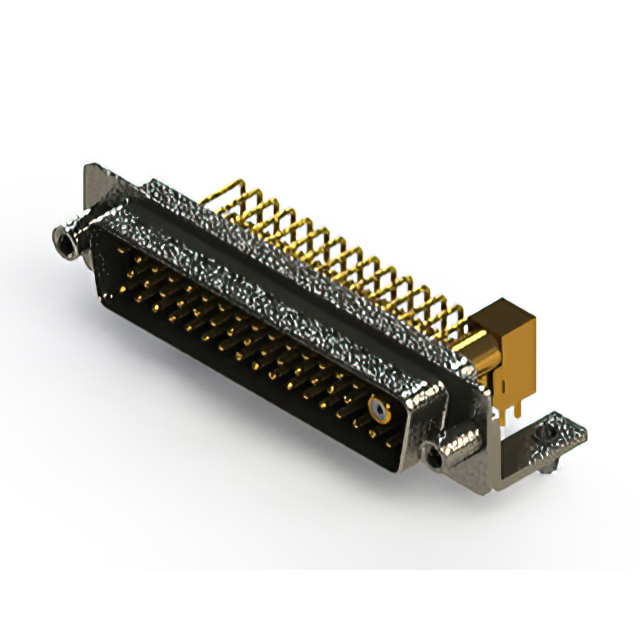

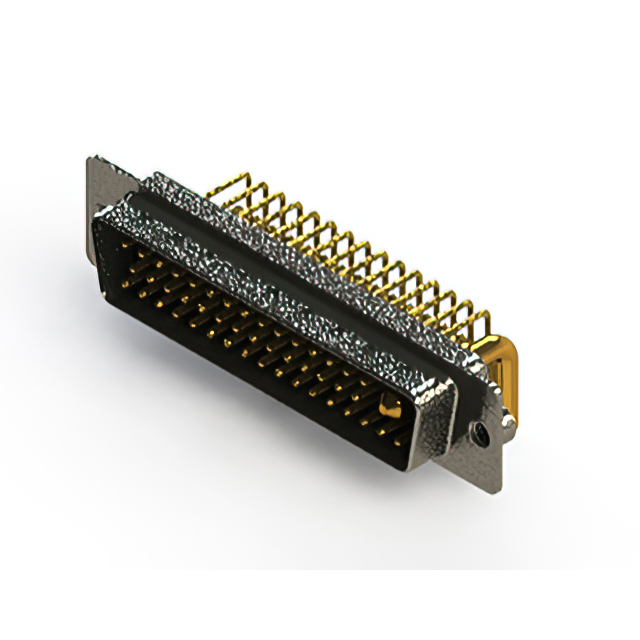

CONN D-SUB PLUG 47POS R/A SLDR
| Part | Color | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Contact Material | Shell Size, Connector Layout | Shell Size, Connector Layout | Number of Positions | Contact Finish | Termination | Connector Style | Shell Material, Finish | Material Flammability Rating | Mounting Type | Number of Rows [custom] | Current Rating (Amps) | Flange Feature | Backset Spacing | Backset Spacing | Contact Finish Thickness | Contact Type | Features | Connector Type | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Black | -55 C | 125 °C | 125 VDC | Polyester Thermoplastic | Copper Alloy | 47W1 D DD | 5 | 47 | Gold | Solder | Combo D-Sub | Nickel Plated Steel | UL94 V-0 | Right Angle Through Hole | 3 | 20A 5A | Housing/Shell (M3) | 9.4 mm | 0.37 in | Flash | Signal and Power | Board Lock Grounding Indents Mounting Brackets | Plug Male Pins | ||||
 EDAC Inc. | Black | -55 C | 125 °C | 125 VDC | Polyester Thermoplastic | Copper Alloy | 47W1 D DD | 5 | 47 | Gold | Solder | Combo D-Sub | Nickel Plated Steel | UL94 V-0 | Right Angle Through Hole | 3 | Housing/Shell | 9.4 mm | 0.37 in | Signal and Power | Grounding Indents Mounting Brackets | Plug Male Pins | 5 A 30 A | 30 Áin | 0.76 Ám | 4-40 | ||
 EDAC Inc. | Black | -55 C | 125 °C | 125 VDC | Polyester Thermoplastic | Copper Alloy | 47W1 D DD | 5 | 47 | Gold | Solder | Combo D-Sub | UL94 V-0 | Right Angle Through Hole | 3 | 20A 5A | Housing/Shell (Unthreaded) | 9.4 mm | 0.37 in | Flash | Signal and Power | Grounding Indents Shielded | Plug Male Pins | |||||
 EDAC Inc. | Black | -55 C | 125 °C | 125 VDC | Polyester Thermoplastic | Copper Alloy | 47W1 D DD | 5 | 47 | Gold | Solder | Combo D-Sub | UL94 V-0 | Right Angle Through Hole | 3 | Board Side (M3) | 9.4 mm | 0.37 in | Flash | Signal and Power | Grounding Indents | Plug Male Pins | 5 A 30 A | |||||
 EDAC Inc. | Black | -55 C | 125 °C | 125 VDC | Polyester Thermoplastic | Copper Alloy | 47W1 D DD | 5 | 47 | Gold | Solder | Combo D-Sub | Nickel Plated Steel | UL94 V-0 | Right Angle Through Hole | 3 | Housing/Shell (Unthreaded) | 9.4 mm | 0.37 in | Signal and Power | Grounding Indents Shielded | Plug Male Pins | 5 A 30 A | 30 Áin | 0.76 Ám | |||
 EDAC Inc. | Black | -55 C | 125 °C | 125 VDC | Polyester Thermoplastic | Copper Alloy | 47W1 D DD | 5 | 47 | Gold | Solder | Combo D-Sub | Nickel Plated Steel | UL94 V-0 | Right Angle Through Hole | 3 | Housing/Shell (Unthreaded) | 9.4 mm | 0.37 in | Signal and Power | Grounding Indents Shielded | Plug Male Pins | 5 A 40 A | 30 Áin | 0.76 Ám | |||
 EDAC Inc. | Black | -55 C | 125 °C | 125 VDC | Polyester Thermoplastic | Copper Alloy | 47W1 D DD | 5 | 47 | Gold | Solder | Combo D-Sub | Nickel Plated Steel | UL94 V-0 | Right Angle Through Hole | 3 | 4-40 | 9.4 mm | 0.37 in | Coax Signal | Board Lock Grounding Indents Mounting Brackets | Plug Male Pins | 30 Áin | 0.76 Ám | ||||
 EDAC Inc. | Black | -55 C | 125 °C | 125 VDC | Polyester Thermoplastic | Copper Alloy | 47W1 D DD | 5 | 47 | Gold | Solder | Combo D-Sub | Nickel Plated Steel | UL94 V-0 | Right Angle Through Hole | 3 | M3 | 9.4 mm | 0.37 in | Signal and Power | Grounding Indents Mounting Brackets | Plug Male Pins | 5 A 30 A | 30 Áin | 0.76 Ám | |||
 EDAC Inc. | Black | -55 C | 125 °C | 125 VDC | Polyester Thermoplastic | Copper Alloy | 47W1 D DD | 5 | 47 | Gold | Solder | Combo D-Sub | UL94 V-0 | Right Angle Through Hole | 3 | 20A 5A | Housing/Shell (M3) | 9.4 mm | 0.37 in | Signal and Power | Board Lock Grounding Indents Mounting Brackets | Plug Male Pins | 30 Áin | 0.76 Ám | ||||
 EDAC Inc. | Black | -55 C | 125 °C | 125 VDC | Polyester Thermoplastic | Copper Alloy | 47W1 D DD | 5 | 47 | Gold | Solder | Combo D-Sub | Nickel Plated Steel | UL94 V-0 | Right Angle Through Hole | 3 | 20A 5A | Housing/Shell | 9.4 mm | 0.37 in | Flash | Signal and Power | Grounding Indents Mounting Brackets | Plug Male Pins | 4-40 |
