H3492 Series
Manufacturer: Harwin Inc.
Beta
⌘K

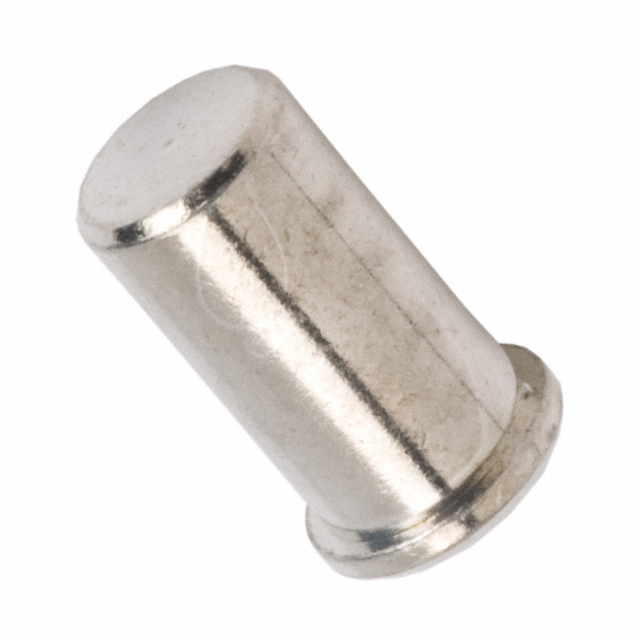

2MM SOCKET ASSY ROHS COMPLIANT: YES
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Force [Min] | Insertion Force [Max] | Termination | Contact Finish | Socket Depth [x] | Socket Depth [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Material | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Min] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Length - Overall | Length - Overall [x] | Tail Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | -55 C | 125 °C | 3 N | 6 N | Solder | Gold | 4.09 mm | 0.161 in | 0.187 in | 4.75 mm | Beryllium Copper | 4.01 mm | 0.162 in | 4.12 mm | 0.158 in | 2 mm | 0.091 in | 0.079 in | 2.3 mm | 8 mm | 0.315 in | No Tail |
