133-3711 Series
Manufacturer: Cinch Connectivity Solutions Johnson
Beta
⌘K

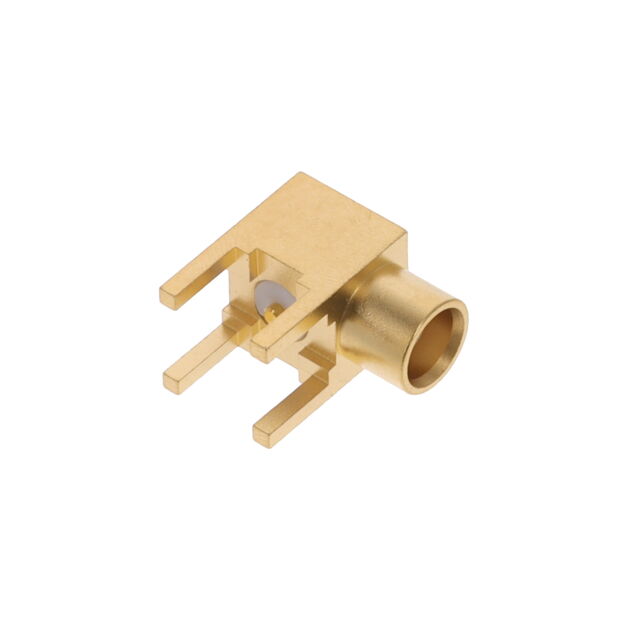

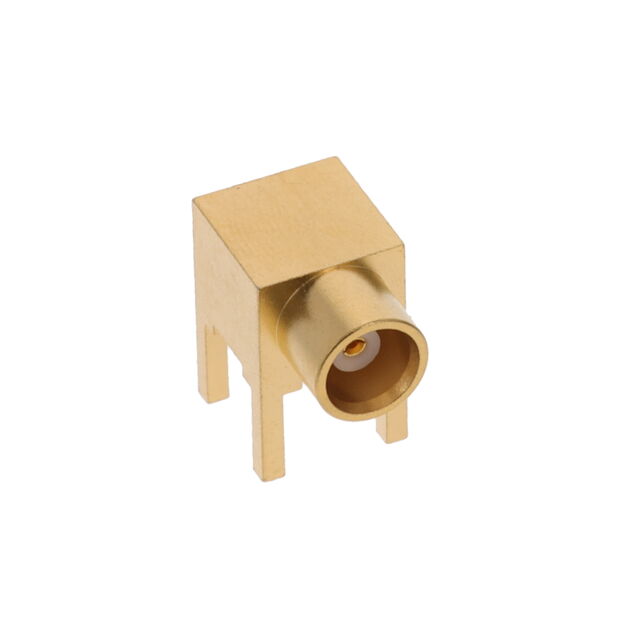

CONN MCX JACK R/A 50OHM SMD
| Part | Body Finish | Body Material | Mating Cycles | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Housing Color | Contact Termination | Shield Termination | Connector Style | Center Contact Material | Number of Ports | Mounting Type | Connector Type | Impedance | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions Johnson | Gold | Brass | 500 | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Gold | Gold | Solder | Solder | MCX | Beryllium Copper | 1 | Right Angle Through Hole | Female Socket Jack | 50 Ohms | 6000 MHz |
