PM20206VB Series

Catalog

CONN HEADER SMD 6POS 2.54MM

Part	Contact Finish - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Number of Rows	Mounting Type	Number of Positions	Termination	Insulation Color	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Connector Type	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Material	Contact Type	Insulation Material

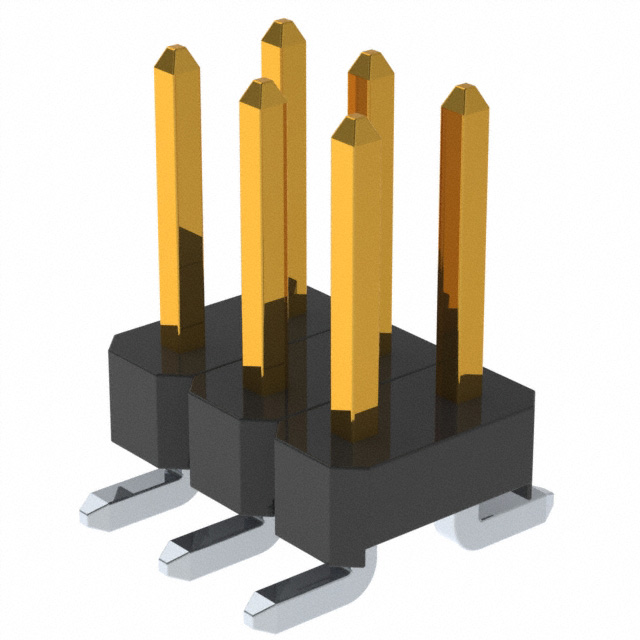

METZ CONNECT USA Inc. PM20206VBDN	Gold	Flash	-40 °C	105 ░C	Unshrouded	3 A	6 mm	0.236 in	All	2	Surface Mount	6	Solder	Black	Push-Pull	2.54 mm	0.1 in	0.098 in	2.5 mm	Header	Square	0.1 in	2.54 mm	Copper Zinc	Male Pin	Polyethylene

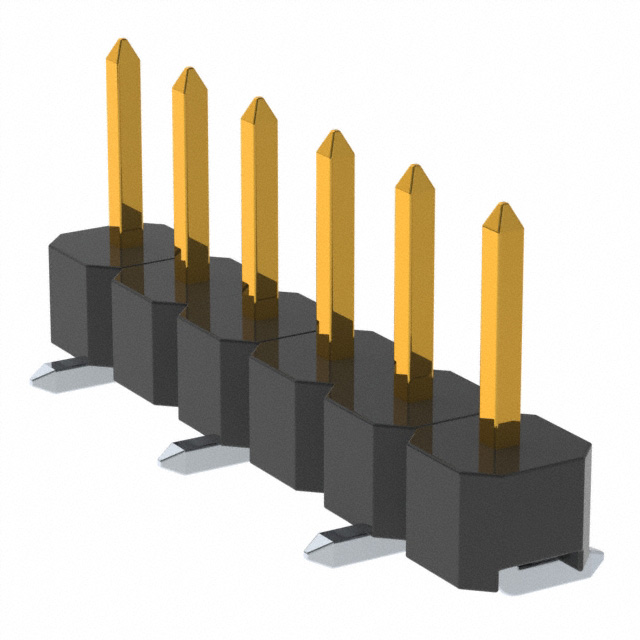

METZ CONNECT USA Inc. PM20206VBNN	Gold	Flash	-40 °C	105 ░C	Unshrouded	3 A	6 mm	0.236 in	All	1	Surface Mount	6	Solder	Black	Push-Pull			0.098 in	2.5 mm	Header	Square	0.1 in	2.54 mm	Copper Zinc	Male Pin	Polyethylene
