TLV709 Series

150-mA 30-V low-dropout (LDO) linear regulator with 3.2-μA supply current

Catalog

150-mA 30-V low-dropout (LDO) linear regulator with 3.2-μA supply current

Part	Output Type	PSRR	Number of Regulators	Supplier Device Package	Output Configuration	Voltage - Output (Min/Fixed)	Package / Case	Current - Supply (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Current - Output	Protection Features	Mounting Type	Voltage Dropout (Max) [Max]	Control Features	Output Type	Voltage - Output (Max)
Texas Instruments TLV709A33DBVR	1.81 mOhm	60 dB	1	SOT-23-5	Positive	3.3 V	SC-74A SOT-753	10 µA	-40 °C	125 ¯C	30 V	150 mA	Over Current Reverse Current	Surface Mount	1.6 V

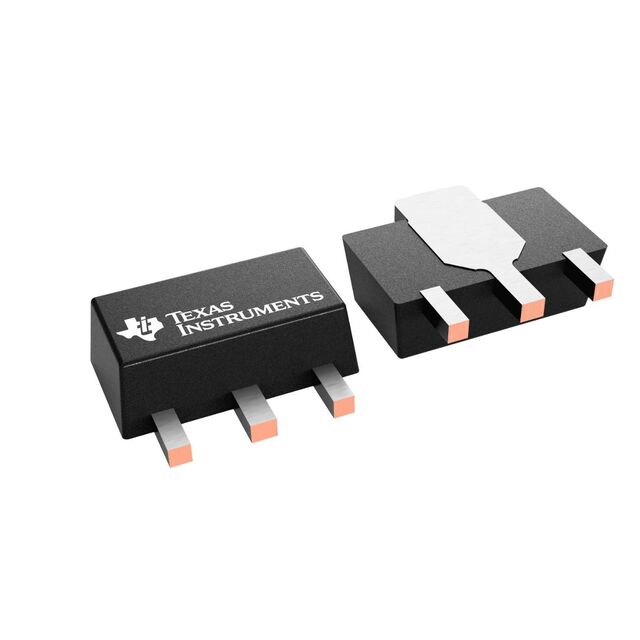

Texas Instruments TLV709A33PKR	1.81 mOhm	60 dB	1	SOT-89-3	Positive	3.3 V	TO-243AA	10 µA	-40 °C	125 ¯C	30 V	150 mA	Over Current	Surface Mount	1.6 V	Soft Start

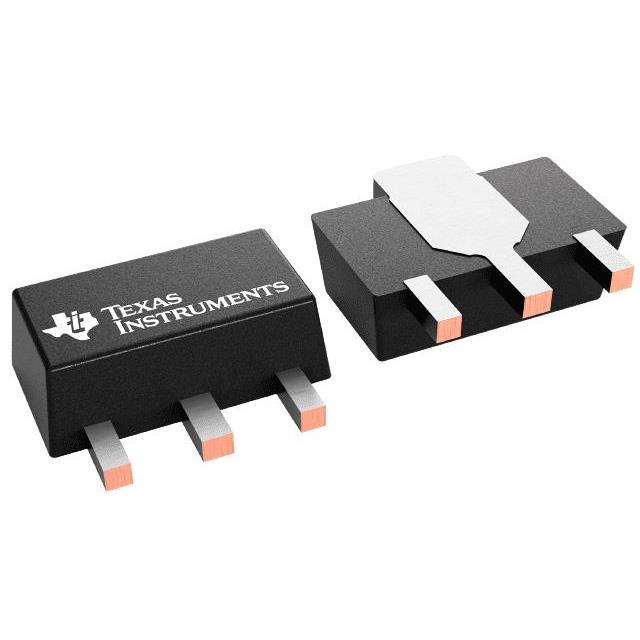

Texas Instruments TLV70933PKR	1.81 mOhm	60 dB	1	SOT-89-3	Positive	3.3 V	TO-243AA	5.8 µA	-40 °C	125 ¯C	30 V	150 mA	Over Current	Surface Mount	1.6 V
Texas Instruments TLV709A01DBVR		60 dB	1	SOT-23-5	Positive	1.2 V	SC-74A SOT-753	10 µA	-40 °C	125 ¯C	30 V	150 mA	Over Current	Surface Mount	1.6 V	Soft Start	Adjustable	28 V
Texas Instruments TLV709A50DBVR	1.81 mOhm	60 dB	1	SOT-23-5	Positive	5 V	SC-74A SOT-753	10 µA	-40 °C	125 ¯C	30 V	150 mA	Over Current Reverse Current	Surface Mount	1.6 V
Texas Instruments TLV70950PKR	1.81 mOhm	60 dB	1	SOT-89-3	Positive	5 V	TO-243AA	5.8 µA	-40 °C	125 ¯C	30 V	150 mA	Over Current	Surface Mount	1.6 V

Catalog

150-mA 30-V low-dropout (LDO) linear regulator with 3.2-μA supply current

Key Features

• Input voltage range: 2.5V to 30VAvailable output voltage options:Fixed: 1.2V to 5VAdjustable: 1.2V to 28VOutput current: Up to 150mAVery-low IQ: 3.2µA at 150mA load currentStable with output capacitor ≥ 0.47µFOvercurrent protectionPackages:4-pin SOT-89 (PK) (fixed configuration only)5-pin SOT-23 (DBV) (both fixed and adjustable configurations)Operating junction temperature: –40°C to +125°CInput voltage range: 2.5V to 30VAvailable output voltage options:Fixed: 1.2V to 5VAdjustable: 1.2V to 28VOutput current: Up to 150mAVery-low IQ: 3.2µA at 150mA load currentStable with output capacitor ≥ 0.47µFOvercurrent protectionPackages:4-pin SOT-89 (PK) (fixed configuration only)5-pin SOT-23 (DBV) (both fixed and adjustable configurations)Operating junction temperature: –40°C to +125°C

Description

The TLV709 low-dropout (LDO) linear voltage regulator is a low quiescent current device. This device offers the benefits of a wide input voltage range and low-power operation in miniaturized packaging. The TLV709 is optimized to power microcontrollers and other low power loads for battery-powered applications. The TLV709 LDO supports a low dropout of typically 600mV at 100mA of load current. The low quiescent current (3.2µA typically) does not vary across the entire range of output load current (0mA to 150mA). The TLV709 also features an internal soft-start to lower inrush current during start-up. The built-in overcurrent limit protection helps protect the regulator in the event of a load short or fault condition. The TLV709 is available in a 2.9mm × 2.8mm, 5-pin SOT-23 (DBV) package for fixed and adjustable outputs. The TLV709 is also available in a 4.5mm × 2.5mm, 3-pin SOT-89 (PK) package for fixed outputs. The TLV709 low-dropout (LDO) linear voltage regulator is a low quiescent current device. This device offers the benefits of a wide input voltage range and low-power operation in miniaturized packaging. The TLV709 is optimized to power microcontrollers and other low power loads for battery-powered applications. The TLV709 LDO supports a low dropout of typically 600mV at 100mA of load current. The low quiescent current (3.2µA typically) does not vary across the entire range of output load current (0mA to 150mA). The TLV709 also features an internal soft-start to lower inrush current during start-up. The built-in overcurrent limit protection helps protect the regulator in the event of a load short or fault condition. The TLV709 is available in a 2.9mm × 2.8mm, 5-pin SOT-23 (DBV) package for fixed and adjustable outputs. The TLV709 is also available in a 4.5mm × 2.5mm, 3-pin SOT-89 (PK) package for fixed outputs.
