073171 Series

Manufacturer: Molex

Catalog

CONN MINI-BNC 0HZ TO 3GHZ 75OHM SOLDER ST THRU-HOLE RCP GOLD TRAY

Part	Contact Termination	Body Material	Impedance	Dielectric Material	Center Contact Plating	Fastening Type	Shield Termination	Housing Color	Mating Cycles	Number of Ports	Mounting Type	Center Contact Material	Body Finish	Connector Style	Connector Type	Mounting Feature	Includes	Frequency - Max [Max]
Molex 0731712730	Solder	Brass	75 Ohms	Polytetrafluoroethylene (PTFE)	Gold	Bayonet Lock	Solder	Silver	500	1	Through Hole	Beryllium Copper	Nickel	BNC Mini	Female Socket Jack
Molex 0731714030
Molex 0731711900	Solder	Zinc Alloy	75 Ohms		Gold	Bayonet Lock	Solder	Silver	500	1	Through Hole	Phosphor Bronze	Nickel	BNC	Female Socket Jack
Molex 0731712741	Solder	Brass	75 Ohms	Polytetrafluoroethylene (PTFE)	Gold	Bayonet Lock	Solder	Silver	500	1	Board Edge End Launch Panel Mount	Beryllium Copper	Nickel	BNC Mini	Female Socket Jack	Bulkhead - Front Side Nut	1 Connector 1 Lockwasher 1 Nut
Molex 0731714000
Molex 0731710700	Solder	Zinc	75 Ohms	Polypropylene (PP)	Gold	Bayonet Lock	Solder	Silver	500	1	Panel Mount Right Angle Through Hole	Phosphor Bronze	Nickel	BNC	Female Socket Jack	Bulkhead - Front Side Nut	1 Connector 1 Lockwasher 1 Nut
Molex 0731713356	Solder	Zinc Alloy	75 Ohms	Polytetrafluoroethylene (PTFE)	Gold	Bayonet Lock	Solder	Silver	500	1	Panel Mount Right Angle Through Hole	Phosphor Bronze	Tin	BNC	Female Socket Jack	Bulkhead - Front Side Nut	1 Connector 1 Nut	3 GHz
Molex 0731713760

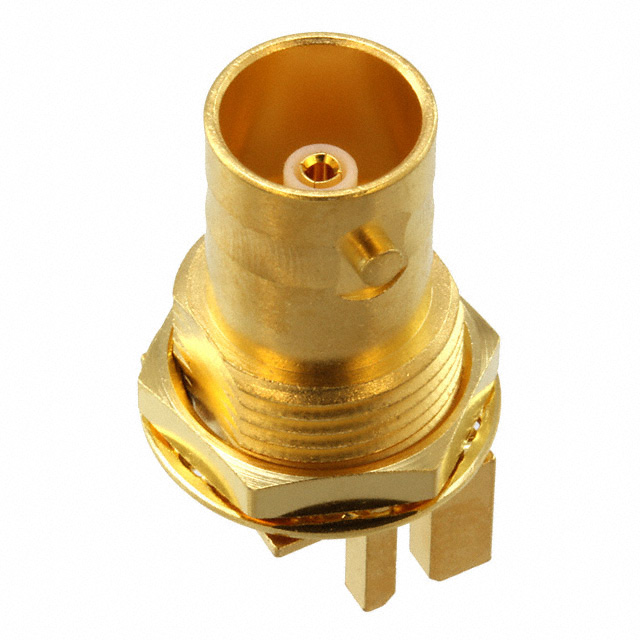

Molex 0731712601	Solder	Brass	75 Ohms	Polytetrafluoroethylene (PTFE)	Gold	Bayonet Lock	Solder	Gold	500	1	Board Edge End Launch Panel Mount	Beryllium Copper	Gold	BNC	Female Socket Jack	Bulkhead - Front Side Nut	1 Connector 1 Lockwasher 1 Nut	3 GHz
Molex 0731711870
