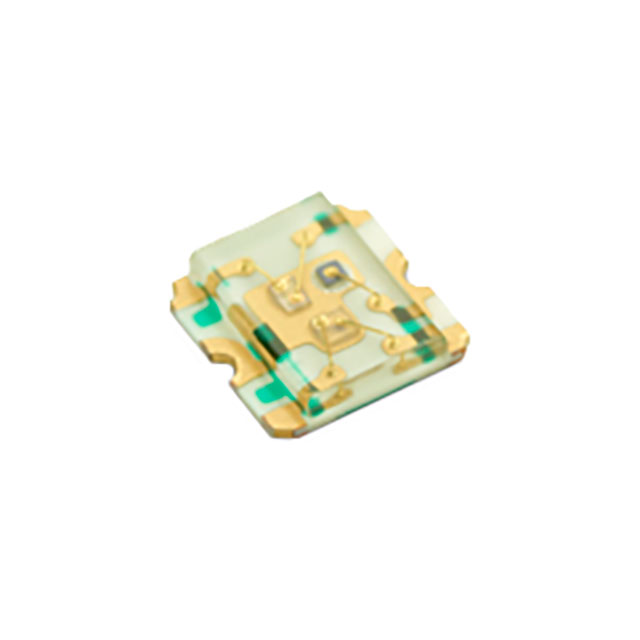

HSMF-C125 Series
Manufacturer: Broadcom Limited
Beta
⌘K
LED RGB CHIP TOP MNT SMD
| Part | Viewing Angle [custom] | Viewing Angle [custom] | Viewing Angle [custom] | Voltage - Forward (Vf) (Typ) | Package / Case | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Lens Style | Wavelength - Dominant [custom] | Wavelength - Dominant [custom] | Wavelength - Dominant [custom] | Wavelength - Peak | Current - Test [custom] | Current - Test [custom] | Current - Test [custom] | Lens Size [y] | Lens Size [x] | Height (Max) [z] | Configuration | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 130 ° | 150 ° | 150 ° | 2.15 V 3.415 V 3.425 V | 0606 (1616 Metric) | Surface Mount | 1.6 mm | 1.6 mm | Rectangle with Flat Top | 623 nm | 522 nm | 467 nm | 461 nm 515 nm 630 nm | 10 mA | 10 mA | 10 mA | 1.15 mm | 1.6 mm | 0.5 mm | Independent | Blue Green Red |
