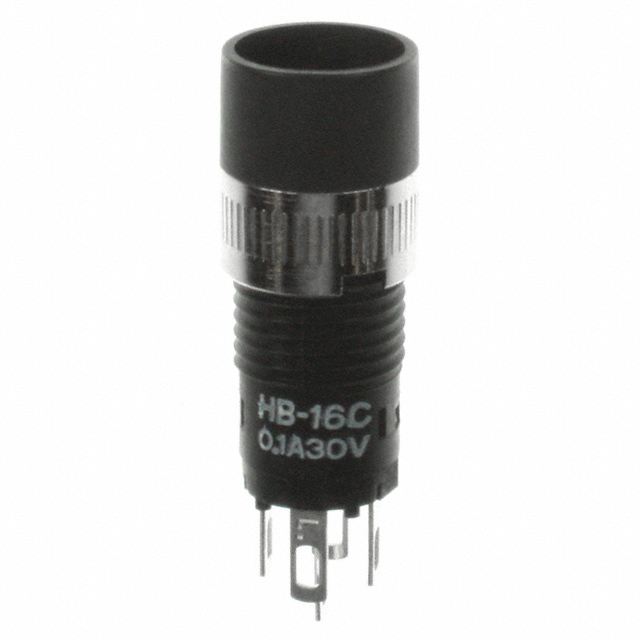

HB16CKW01 Series

Catalog

SWITCH PUSH SPDT 0.1A 30V

Part	Electrical Life	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Voltage Rating - DC	Termination Style	Current Rating (Amps)	Actuator Marking	Panel Cutout Dimensions [diameter]	Type	Illumination Voltage (Nominal)	Illumination Type, Color	Circuit	Actuator Type	Mounting Type	Switch Function	Voltage Rating - AC

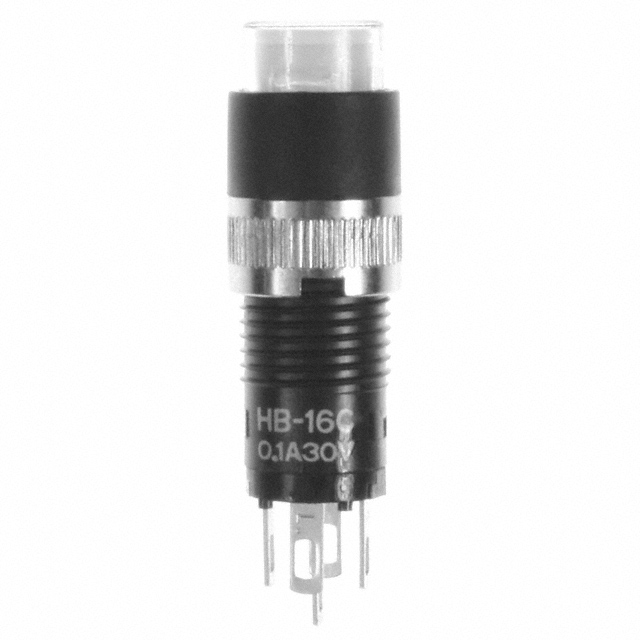

NKK Switches HB16CKW01-6B-JB	50000 Cycles	100000 Cycles	50 °C	-25 °C	Clear	30 V	Solder Lug	100 mA	No Marking	8 mm	Illuminated Standard	3.3 VDC	LED White	SPDT	Button Round	Panel Mount Front	On-On	30 V
NKK Switches HB16CKW01-G	50000 Cycles	100000 Cycles	70 °C	-25 °C	Blue	30 V	Solder Lug	100 mA	No Marking	8 mm	Standard			SPDT	Button Round	Panel Mount Front	On-On	30 V
NKK Switches HB16CKW01-5C-CB	50000 Cycles	100000 Cycles	50 °C	-25 °C	Red	30 V	Solder Lug	100 mA	No Marking	8 mm	Illuminated Standard	2.1 VDC	LED Red	SPDT	Button Round	Panel Mount Front	On-On	30 V

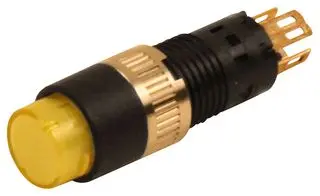

NKK Switches HB16CKW01-5D-DB	50000 Cycles	100000 Cycles	50 °C	-25 °C	Amber	30 V	Solder Lug	100 mA	No Marking	8 mm	Illuminated Standard	2.05 VDC	Amber LED	SPDT	Button Round	Panel Mount Front	On-On	30 V
NKK Switches HB16CKW01-6G-JB	50000 Cycles	100000 Cycles	50 °C	-25 °C	Clear	30 V	Solder Lug	100 mA	No Marking	8 mm	Illuminated Standard	3.6 VDC	Blue LED	SPDT	Button Round	Panel Mount Front	On-On	30 V
NKK Switches HB16CKW01-E	50000 Cycles	100000 Cycles	70 °C	-25 °C	Yellow	30 V	Solder Lug	100 mA	No Marking	8 mm	Standard			SPDT	Button Round	Panel Mount Front	On-On	30 V

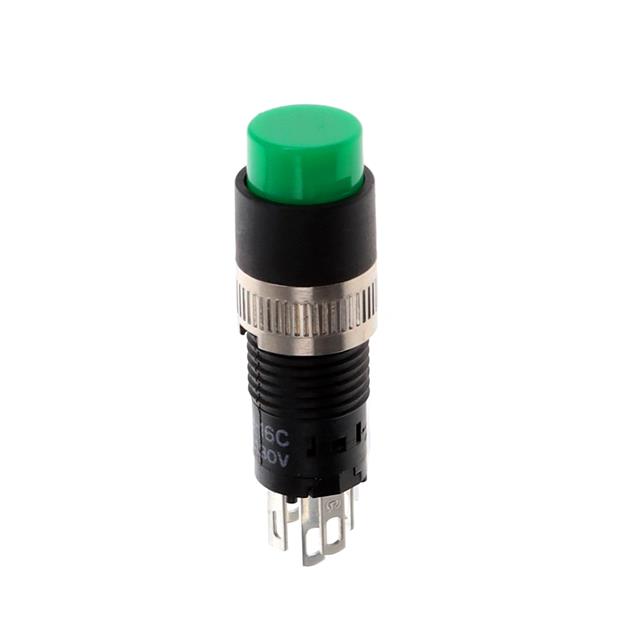

NKK Switches HB16CKW01-F	50000 Cycles	100000 Cycles	70 °C	-25 °C	Green	30 V	Solder Lug	100 mA	No Marking	8 mm	Standard			SPDT	Button Round	Panel Mount Front	On-On	30 V

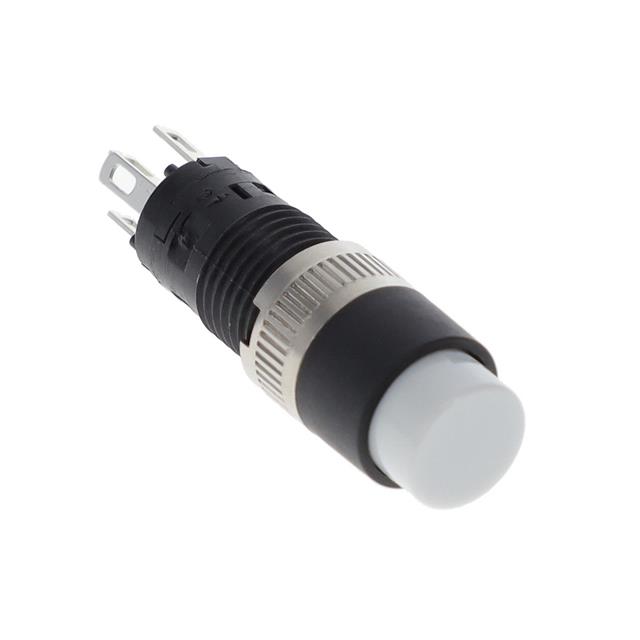

NKK Switches HB16CKW01-B	50000 Cycles	100000 Cycles	70 °C	-25 °C	White	30 V	Solder Lug	100 mA	No Marking	8 mm	Standard			SPDT	Button Round	Panel Mount Front	On-On	30 V
NKK Switches HB16CKW01-5D-JB	50000 Cycles	100000 Cycles	50 °C	-25 °C	Clear	30 V	Solder Lug	100 mA	No Marking	8 mm	Illuminated Standard	2.05 VDC	Amber LED	SPDT	Button Round	Panel Mount Front	On-On	30 V
NKK Switches HB16CKW01-5C-JB	50000 Cycles	100000 Cycles	50 °C	-25 °C	Clear	30 V	Solder Lug	100 mA	No Marking	8 mm	Illuminated Standard	2.1 VDC	LED Red	SPDT	Button Round	Panel Mount Front	On-On	30 V
