4314N Series

Catalog

FAN AXIAL 119X32MM 24VDC WIRE

Part	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Lifetime @ Temp.	Voltage - Rated	Fan Type	Bearing Type	Ingress Protection	Width [y]	Air Flow	Air Flow	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight	RPM	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Power (Watts)	Weight [custom]	Weight [custom]	Approval Agency

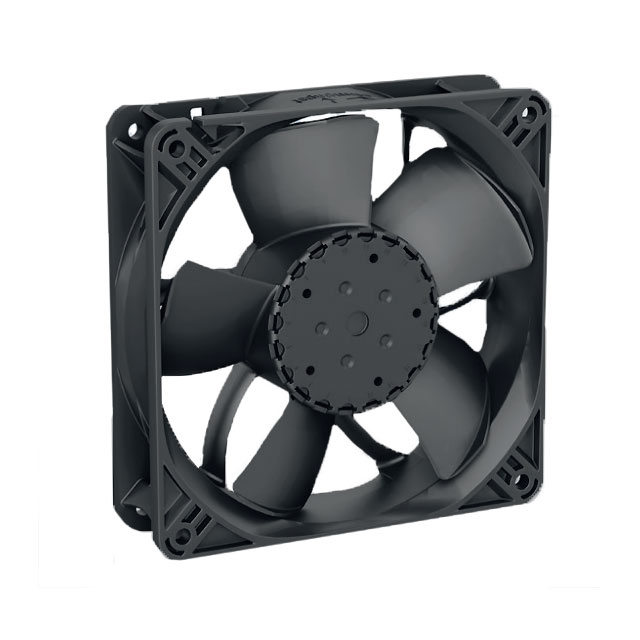

ebm-papst Inc. 4314NN	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	28 V	12 VDC	Polyamide (PA) Nylon Fiberglass Reinforced	72500 Hrs	24 VDC	Tubeaxial	Ball	IP20	32 mm	112 CFM	3.14 mł/min	Square	119 mm	119 mm	0.553 lb	250.84 g	2700 RPM	2 Wire Leads	-4 °F	167 °F	43 dB	4.1 W

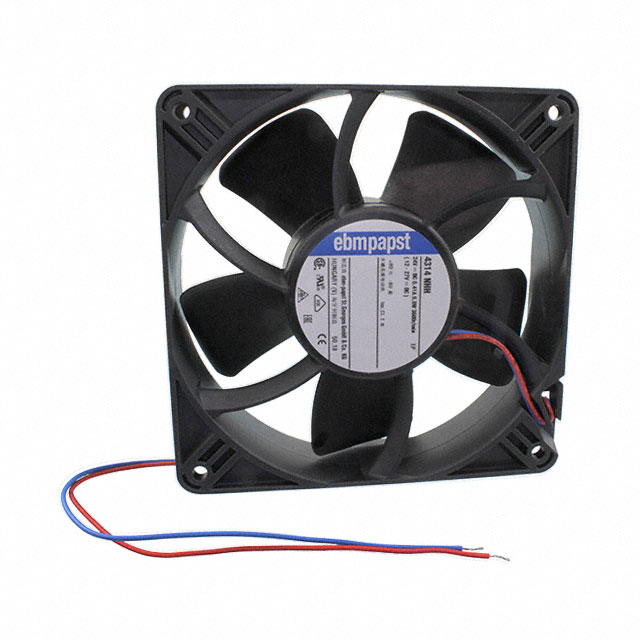

ebm-papst Inc. 4314NHH	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	28 V	12 VDC	Polyamide (PA) Nylon Fiberglass Reinforced	57500 Hrs	24 VDC	Tubeaxial	Ball		32 mm	116.5 CFM	3.26 m³/min	Square	119 mm	119 mm			3600 RPM	2 Wire Leads	-20 ░C	70 °C	49 dB	6 W	0.507 lb	229.97 g	CE CSA UL VDE
ebm-papst Inc. 4314NM	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	28 V	12 VDC	Polyamide (PA) Nylon Fiberglass Reinforced	85000 Hrs	24 VDC	Tubeaxial	Ball		32 mm	88.2 CFM	2.47 m³/min	Square	119 mm	119 mm	0.553 lb	250.84 g	2100 RPM	2 Wire Leads	-4 °F	167 °F	36 dB	2.4 W

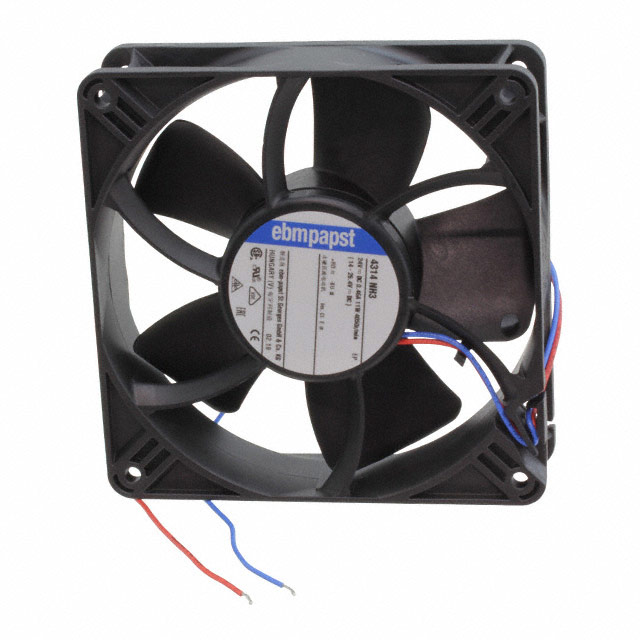

ebm-papst Inc. 4314NH3	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	26.4 VDC	14 VDC	Polyamide (PA) Nylon Fiberglass Reinforced	45000 Hrs	24 VDC	Tubeaxial	Ball		32 mm	167 CFM	4.68 m³/min	Square	119 mm	119 mm	0.553 lb	250.84 g	4050 RPM	2 Wire Leads	-4 °F	167 °F	55 dB(A)	11 W
ebm-papst Inc. 4314NL	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	28 V	12 VDC	Polyamide (PA) Nylon Fiberglass Reinforced	95000 Hrs	24 VDC	Tubeaxial	Ball		32 mm	58.8 CFM	1.64 m³/min	Square	119 mm	119 mm	0.553 lb	250.84 g	1450 RPM	2 Wire Leads	-4 °F	167 °F	25 dB(A)				CE CSA UL VDE
