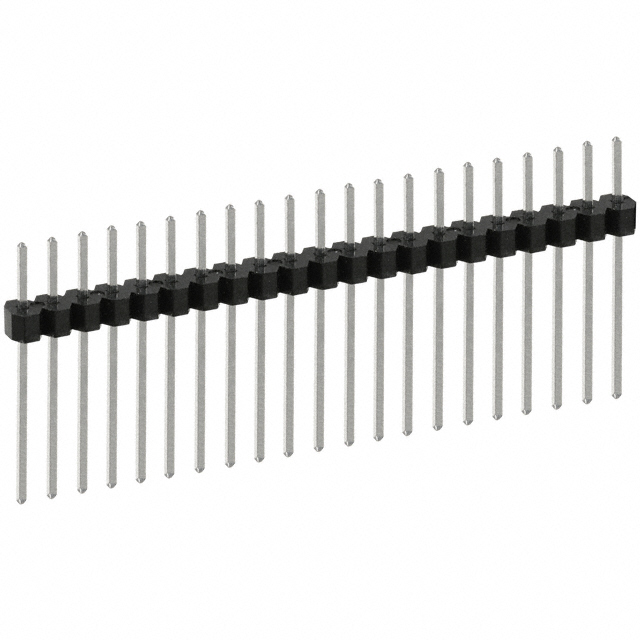

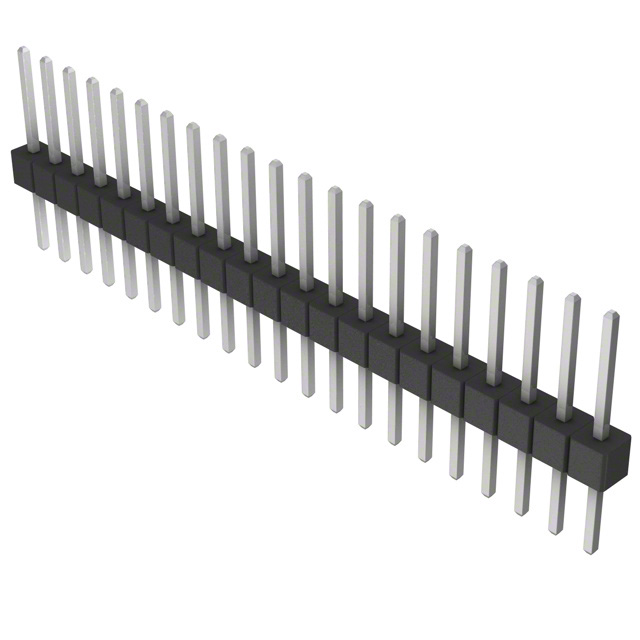

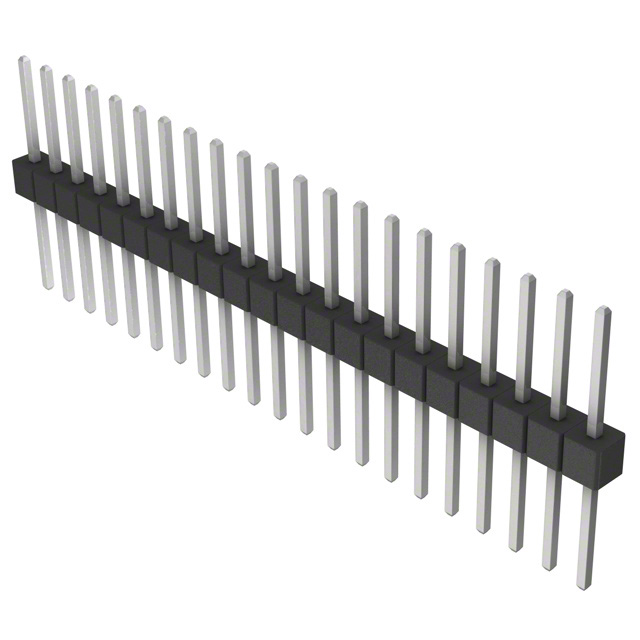

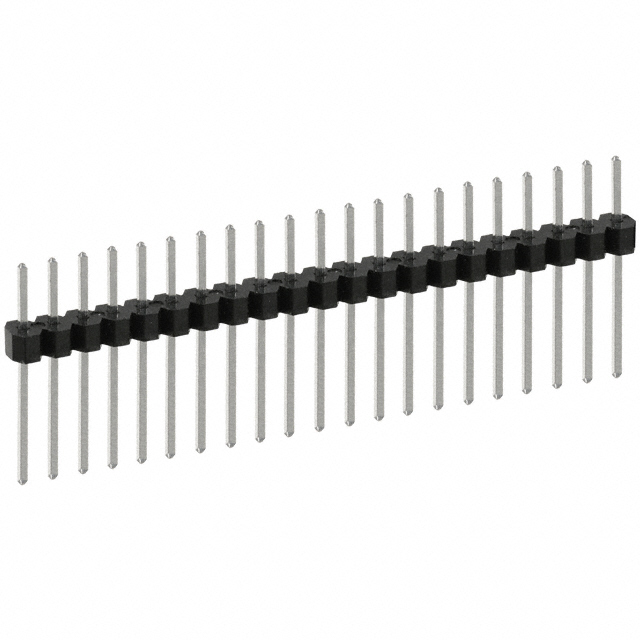

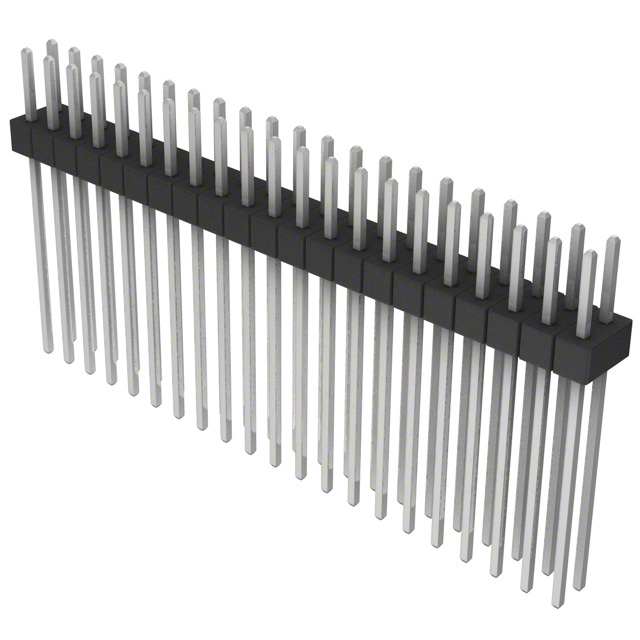

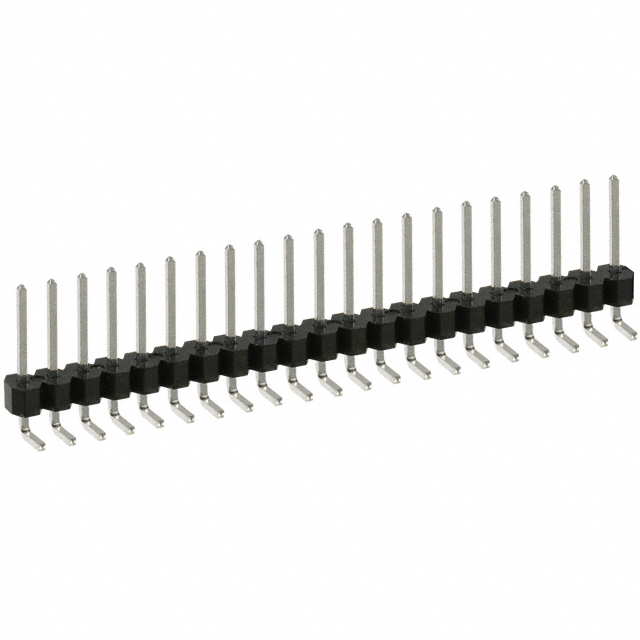

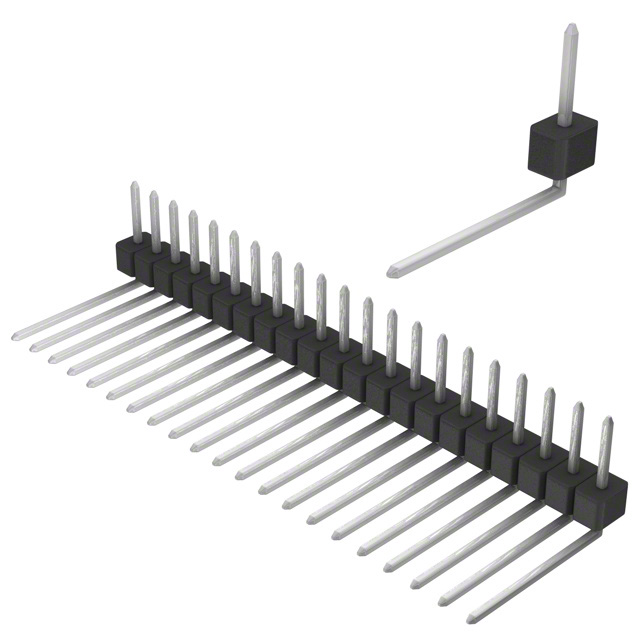

PEC21 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 21POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Insulation Height	Insulation Height	Connector Type	Current Rating (Amps)	Mounting Type	Termination	Contact Type	Style	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Shape	Number of Positions	Shrouding	Contact Length - Mating	Contact Length - Mating	Insulation Color	Contact Material	Insulation Material	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Overall Contact Length [x]	Overall Contact Length [x]	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [custom]	Contact Length - Post [custom]	Overall Contact Length
Sullins Connector Solutions PEC21SAEN	2.54 µm	100 µin	1	-65 ░C	125 °C	UL94 V-0	0.1 in	2.54 mm	Header Breakaway	3 A	Through Hole	Solder	Male Pin	Board to Board Cable	Tin	100 çin	2.54 çm	Push-Pull	0.1 "	2.54 mm	Square	21	Unshrouded	0.23 in	5.84 mm	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)	0.85 in	21.59 mm	All	0.52 in	13.21 mm
Sullins Connector Solutions PEC21SADN	2.54 µm	100 µin	1	-65 ░C	125 °C	UL94 V-0	0.1 in	2.54 mm	Header Breakaway	3 A	Through Hole	Solder	Male Pin	Board to Board Cable	Tin	100 çin	2.54 çm	Push-Pull	0.1 "	2.54 mm	Square	21	Unshrouded	0.23 in	5.84 mm	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)			All	0.42 in	10.67 mm	19.05 mm	0.75 in
Sullins Connector Solutions PEC21SAAN	2.54 µm	100 µin	1	-65 ░C	125 °C	UL94 V-0	0.1 in	2.54 mm	Header Breakaway	3 A	Through Hole	Solder	Male Pin	Board to Board Cable	Tin	100 çin	2.54 çm	Push-Pull	0.1 "	2.54 mm	Square	21	Unshrouded	0.23 in	5.84 mm	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)			All	0.12 in	3.05 mm	11.43 mm	0.45 in
Sullins Connector Solutions PEC21SGAN	2.54 µm	100 µin	1	-65 ░C	125 °C	UL94 V-0	0.14 in	3.56 mm	Header Breakaway	3 A	Right Angle Through Hole	Solder	Male Pin	Board to Board Cable	Tin	100 çin	2.54 çm	Push-Pull	0.1 "	2.54 mm	Square	21	Unshrouded	0.318 in	8.08 mm	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)			All	0.1 in	2.54 mm
Sullins Connector Solutions PEC21DBCN	2.54 µm	100 µin		-65 ░C	125 °C	UL94 V-0			Header Breakaway	3 A	Right Angle Through Hole	Solder	Male Pin	Board to Board Cable	Tin	100 çin	2.54 çm	Push-Pull	0.1 "	2.54 mm	Square	42	Unshrouded	0.23 in	5.84 mm	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)			All	0.3 in	7.62 mm			2	6.1 mm	0.24 in	0.1 in	2.54 mm
Sullins Connector Solutions PEC21DAHN	2.54 µm	100 µin		-65 ░C	125 °C	UL94 V-0	0.1 in	2.54 mm	Header Breakaway	3 A	Through Hole	Solder	Male Pin	Board to Board Cable	Tin	100 çin	2.54 çm	Push-Pull	0.1 "	2.54 mm	Square	42	Unshrouded	0.23 in	5.84 mm	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)	1.15 in	29.21 mm	All	0.82 in	20.83 mm			2			0.1 in	2.54 mm
Sullins Connector Solutions PEC21DGBN	2.54 µm	100 µin		-65 ░C	125 °C	UL94 V-0			Header Breakaway	3 A	Right Angle Through Hole	Solder	Male Pin	Board to Board Cable	Tin	100 çin	2.54 çm	Push-Pull	0.1 "	2.54 mm	Square	42	Unshrouded	0.318 in	8.08 mm	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)			All					2	6.1 mm	0.24 in	0.1 in	2.54 mm	5.08 mm	0.2 "
Sullins Connector Solutions PEC21SBEN	2.54 µm	100 µin	1	-65 ░C	125 °C	UL94 V-0	0.14 in	3.56 mm	Header Breakaway	3 A	Right Angle Through Hole	Solder	Male Pin	Board to Board Cable	Tin	100 çin	2.54 çm	Push-Pull	0.1 "	2.54 mm	Square	21	Unshrouded	0.23 in	5.84 mm	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)			All	0.5 "	12.7 mm
Sullins Connector Solutions PEC21DBEN	2.54 µm	100 µin		-65 ░C	125 °C	UL94 V-0			Header Breakaway	3 A	Right Angle Through Hole	Solder	Male Pin	Board to Board Cable	Tin	100 çin	2.54 çm	Push-Pull	0.1 "	2.54 mm	Square	42	Unshrouded	0.23 in	5.84 mm	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)			All	0.5 "	12.7 mm			2	6.1 mm	0.24 in	0.1 in	2.54 mm
Sullins Connector Solutions PEC21SFCN	2.54 µm	100 µin	1	-65 ░C	125 °C	UL94 V-0	0.1 in	2.54 mm	Header Breakaway	3 A	Through Hole	Solder	Male Pin	Board to Board Cable	Tin	100 çin	2.54 çm	Push-Pull	0.1 "	2.54 mm	Square	21	Unshrouded	0.318 in	8.08 mm	Black	Phosphor Bronze	Polybutylene Terephthalate (PBT)		18.75 mm	All	0.32 in	8.13 mm										0.738 in
