SC10-21 Series

Catalog

DISPLAY 7-SEG 1" SGL YLW 10DIP

Part	Number of Characters	Digit/Alpha Size	Digit/Alpha Size	Power Dissipation (Max) [Max]	Package / Case	Package / Case	Display Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Color	Current - Test	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Common Pin	Power Dissipation (Max)
Kingbright SC10-21SYKWA	1	1 in	25.4 mm	75 mw	1.197 in 30.4 mm	10-DIP	7-Segment	0.413 in	0.551 in	1.339 in	14 mm	34 mm	10.5 mm	Yellow	20 mA	590 nm	2 V	400 mcd	Common Cathode

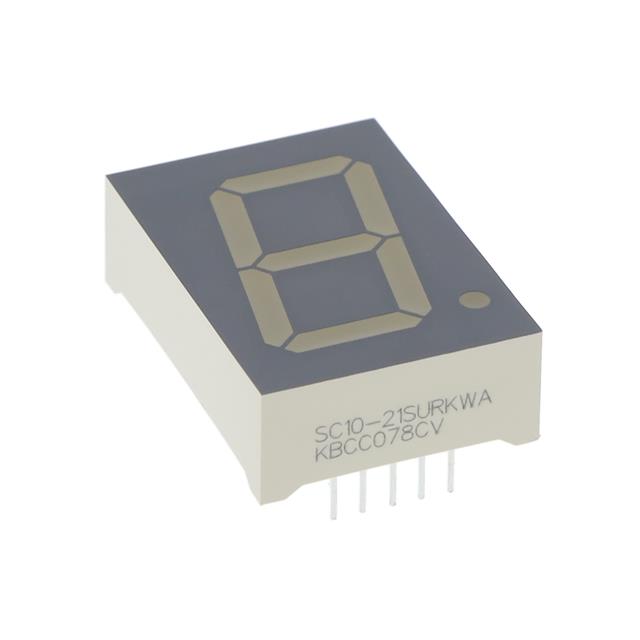

Kingbright SC10-21SURKWA	1	1 in	25.4 mm	75 mw	1.197 in 30.4 mm	10-DIP	7-Segment	1.339 in	0.945 "	0.413 in	24 mm	10.5 mm	34 mm	Red	20 mA	645 nm	1.95 V	260 mcd	Common Cathode
Kingbright SC10-21GWA	1	1 in	25.4 mm	125 mW		10-DIP (1.200" 30.48mm)	7-Segment	1.339 in	0.945 "	0.413 in	24 mm	10.5 mm	34 mm	Green	20 mA	565 nm	4.4 V	37 mcd	Common Cathode
Kingbright SC10-21YWA	1	1 in	25.4 mm			10-DIP (1.200" 30.48mm)	7-Segment	1.339 in	0.945 "	0.413 in	24 mm	10.5 mm	34 mm	Yellow	20 mA	590 nm	4.2 V	23 mcd	Common Cathode	150 mW
Kingbright SC10-21CGKWA	1	1 in	25.4 mm		1.197 in 30.4 mm	10-DIP	7-Segment	0.413 in	0.551 in	1.339 in	14 mm	34 mm	10.5 mm	Green	20 mA		4.2 V	95 mcd	Common Cathode	150 mW
Kingbright SC10-21EWA	1	1 in	25.4 mm			10-DIP (1.200" 30.48mm)	7-Segment	1.339 in	0.945 "	0.413 in	24 mm	10.5 mm	34 mm	Red	20 mA	627 nm	4 V	23 mcd	Common Cathode	150 mW
Kingbright SC10-21SRWA	1	1 in	25.4 mm	75 mw	1.197 in 30.4 mm	10-DIP 10-DIP (1.200" 30.48mm)	7-Segment	1.339 in	0.945 "	0.413 in	24 mm	10.5 mm	34 mm	Red	10 mA 20 mA	655 nm 660 nm	3.6 V 3.7 V	120 mcd	Common Cathode	150 mW
