THS401 Series

Catalog

EVAL MOD FOR THS4012

Part	-3db Bandwidth	Output Type	Channels per IC	Current - Output / Channel	Amplifier Type	Supplied Contents	Slew Rate	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Utilized IC / Part	Current - Supply (Main IC)	Board Type	Current - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply Span (Max) [Max]	Current - Input Bias	Supplier Device Package	Voltage - Input Offset	Package / Case	Package / Case [y]	Package / Case [x]	Mounting Type	Gain Bandwidth Product	Number of Circuits

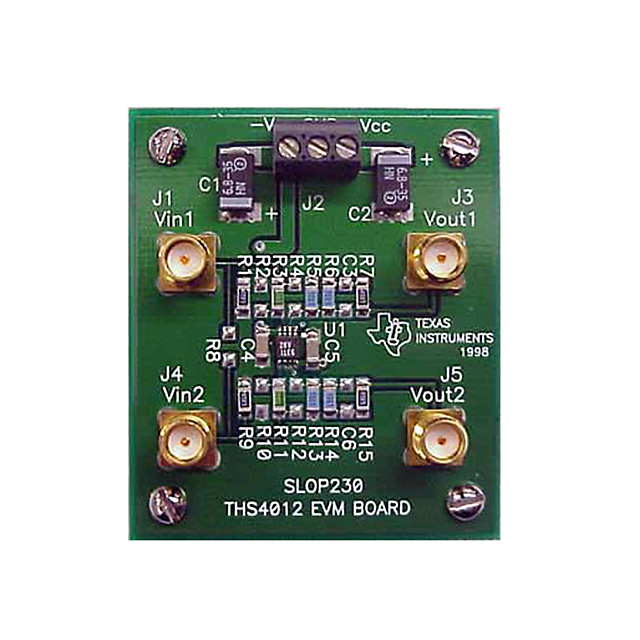

Texas Instruments THS4012EVM	290 MHz	Single-Ended	1 - Single	110 mA	Voltage Feedback	Board(s)	310 V/µs	16 V 32 V	-4.5 V 9 V	THS4012	7.8 mA	Fully Populated
Texas Instruments THS4011IDRG4	290 MHz			110 mA	Voltage Feedback		310 V/µs						7.8 mA	85 °C	-40 °C	32 V	2 µA	8-SOIC	1 mV	8-SOIC	3.9 mm	0.154 in	Surface Mount	290 MHz	1
Texas Instruments THS4011IDR	290 MHz			110 mA	Voltage Feedback		310 V/µs						7.8 mA	85 °C	-40 °C	32 V	2 µA	8-SOIC	1 mV	8-SOIC	3.9 mm	0.154 in	Surface Mount	290 MHz	1
Texas Instruments THS4012IDRG4	290 MHz			110 mA	Voltage Feedback		310 V/µs						7.8 mA	85 °C	-40 °C	32 V	2 µA	8-SOIC	1 mV	8-SOIC	3.9 mm	0.154 in	Surface Mount	290 MHz	2
Texas Instruments THS4012IDR	290 MHz			110 mA	Voltage Feedback		310 V/µs						7.8 mA	85 °C	-40 °C	32 V	2 µA	8-SOIC	1 mV	8-SOIC	3.9 mm	0.154 in	Surface Mount	290 MHz	2
