GP3004SF Series

Manufacturer: Bergquist

Catalog

THERM PAD 457.2X228.6MM GRAY

Part	Adhesive	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Shelf Life	Shelf Life Start	Shape	Thickness	Thickness	Outline [y]	Outline [x]	Color	Thermal Conductivity	Usage	Material	Backing, Carrier [custom]	Backing, Carrier [custom]	Type	Thickness
Bergquist GP3004SF-0.030-01-0918	Tacky - Both Sides Tacky - One Side	25 C	77 F	270 Days	Date of Manufacture	Rectangular	0.03 in	0.762 mm	228.6 mm	457.2 mm	Gray	3 W/m-K	Thermally Conductive	Non-Silicone	Fiberglass	Fiberglass	Gap Filler Pad Sheet
Bergquist GP3004SF-0.125-01-0918	Tacky - Both Sides Tacky - One Side	25 C	77 F	270 Days	Date of Manufacture	Rectangular	0.125 in	3.18 mm	228.6 mm	457.2 mm	Gray	3 W/m-K	Thermally Conductive	Non-Silicone	Fiberglass	Fiberglass	Gap Filler Pad Sheet
Bergquist GP3004SF-0.080-01-0918	Tacky - Both Sides	25 C	77 F	270 Days	Date of Manufacture	Rectangular	0.08 in	80 mils	228.6 mm	457.2 mm	Gray	3 W/m-K	Thermally Conductive	Non-Silicone	Fiberglass	Fiberglass	Gap Filler Pad Sheet
Bergquist GP3004SF-0.023-01-0918	Tacky - Both Sides Tacky - One Side	25 C	77 F	270 Days	Date of Manufacture	Rectangular	0.023 in	0.584 mm	228.6 mm	457.2 mm	Gray	3 W/m-K	Thermally Conductive	Non-Silicone	Fiberglass	Fiberglass	Gap Filler Pad Sheet

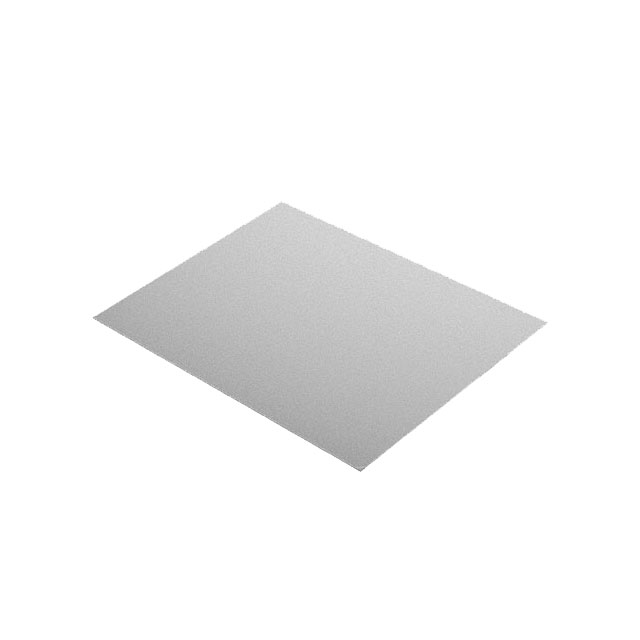

Bergquist GP3004SF-0.010-01-0918	Tacky - Both Sides Tacky - One Side	25 C	77 F	270 Days	Date of Manufacture	Rectangular		10 mils	228.6 mm	457.2 mm	Gray	3 W/m-K	Thermally Conductive	Non-Silicone	Fiberglass	Fiberglass	Gap Filler Pad Sheet	0.01 in
Bergquist GP3004SF-0.100-01-0918	Tacky - Both Sides Tacky - One Side	25 C	77 F	270 Days	Date of Manufacture	Rectangular	0.1 in	2.54 mm	228.6 mm	457.2 mm	Gray	3 W/m-K	Thermally Conductive	Non-Silicone	Fiberglass	Fiberglass	Gap Filler Pad Sheet
Bergquist GP3004SF-0.060-01-0918	Tacky - Both Sides Tacky - One Side	25 C	77 F	270 Days	Date of Manufacture	Rectangular	0.06 in	1.524 mm	228.6 mm	457.2 mm	Gray	3 W/m-K	Thermally Conductive	Non-Silicone	Fiberglass	Fiberglass	Gap Filler Pad Sheet
Bergquist GP3004SF-0.016-01-0918	Tacky - Both Sides Tacky - One Side	25 C	77 F	270 Days	Date of Manufacture	Rectangular	0.016 "	0.406 mm	228.6 mm	457.2 mm	Gray	3 W/m-K	Thermally Conductive	Non-Silicone	Fiberglass	Fiberglass	Gap Filler Pad Sheet
Bergquist GP3004SF-0.040-01-0918	Tacky - Both Sides Tacky - One Side	25 C	77 F	270 Days	Date of Manufacture	Rectangular	0.04 in	1.016 mm	228.6 mm	457.2 mm	Gray	3 W/m-K	Thermally Conductive		Fiberglass	Fiberglass	Gap Filler Pad Sheet
