181-M15 Series
Manufacturer: NorComp Inc.
Beta
⌘K
D SUB CONNECTOR, RIGHT ANGLE, HD15, RECEPTACLE, 181 M SERIES, 15 CONTACTS, DE, THROUGH HOLE
| Part | Color | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Shell Material, Finish | Features | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Contact Finish Thickness | Current Rating (Amps) | Number of Positions | Termination | Mounting Type | Number of Rows [custom] | Flange Feature | Flange Feature | Contact Finish | Backset Spacing | Backset Spacing | Material Flammability Rating | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

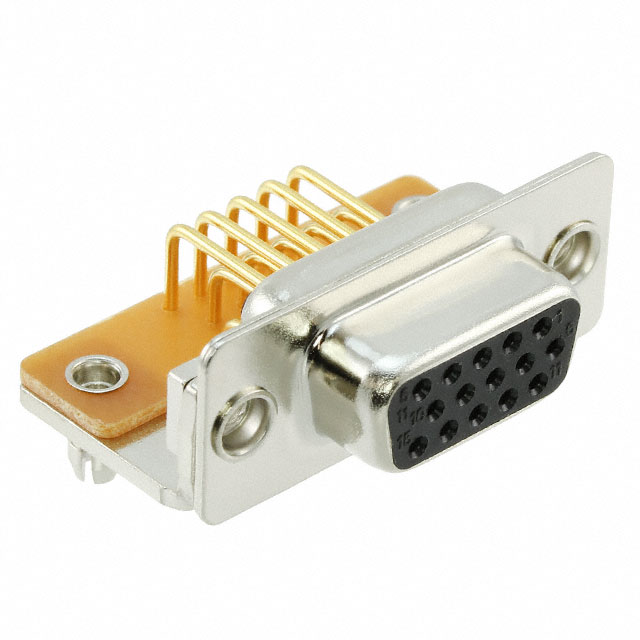

 NorComp Inc. | Black | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Brass | Nickel Plated Steel | Board Lock Shielded | Receptacle Female Sockets | (DE E) High Density | 1 | Signal | Flash | 5 A | 15 | Solder | Panel Mount Right Angle Through Hole | 3 | Housing/Shell | 4-40 | Gold | 8.89 mm | 0.35 in | UL94 V-0 | D-Sub High Density |

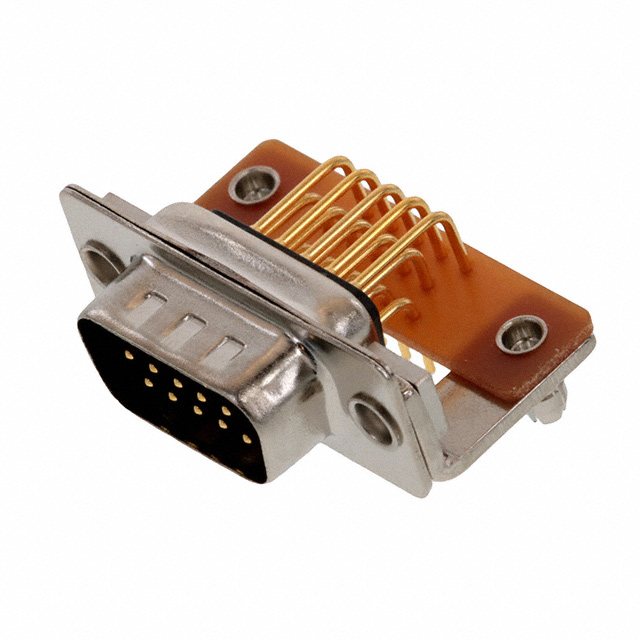

 NorComp Inc. | Black | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Brass | Nickel Plated Steel | Board Lock Grounding Indents Shielded | Plug Male Pins | (DE E) High Density | 1 | Signal | Flash | 5 A | 15 | Solder | Panel Mount Right Angle Through Hole | 3 | Housing/Shell | 4-40 | Gold | 8.89 mm | 0.35 in | UL94 V-0 | D-Sub High Density |
