TR9KE5000 Series

Catalog

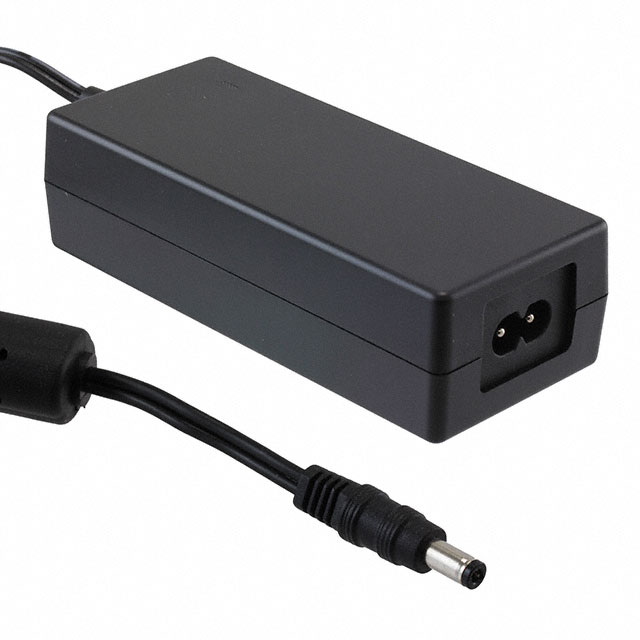

AC/DC DESKTOP ADAPTER 12V 60W

Part	Approval Agency	Input Type	Input Connector	Region Utilized	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Output Connector [diameter]	Output Connector	Output Connector [x]	No Load Power Consumption	Voltage - Output	Cord Length	Cord Length	Standard Number	Power (Watts)	Applications	Efficiency	Form	Polarization	Voltage - Input [Max]	Voltage - Input [Min]
GlobTek, Inc. TR9KE5000LCP-N(R6B)	CB CCC CE cULus EAC FCC GS LPS PSE RCM UkrSEPRO VCCI	Cord (Sold Separately)	IEC 320-C8	International	1.3 in	121 mm	4.76 "	2.05 in	33 mm	52 mm	40 °C	0 °C	5 A	2.5 mm 5.5 mm	Barrel Plug	11 mm	150 mW	12 V	1.2 m	47.2 in	60335-1 60950-1	60 W	Household Appliances ITE (Commercial)	Level VI	Desktop (Class II)	Positive Center	264 VAC	90 VAC
GlobTek, Inc. TR9KE5000CCP-N(R6B)	CB CCC CE cULus EAC FCC GS LPS PSE RCM UkrSEPRO VCCI	Cord (Sold Separately)	IEC 320-C8	International	1.3 in	121 mm	4.76 "	2.05 in	33 mm	52 mm	40 °C	0 °C	5 A	2.1 mm 5.5 mm	Barrel Plug	11 mm		12 V	1.2 m	47.2 in	60335-1 60950-1	60 W	Household Appliances ITE (Commercial)	Level VI	Desktop (Class II)	Positive Center	264 VAC	90 VAC
