HT 1/16 Series
Manufacturer: MM Newman Corporation
Beta
⌘K

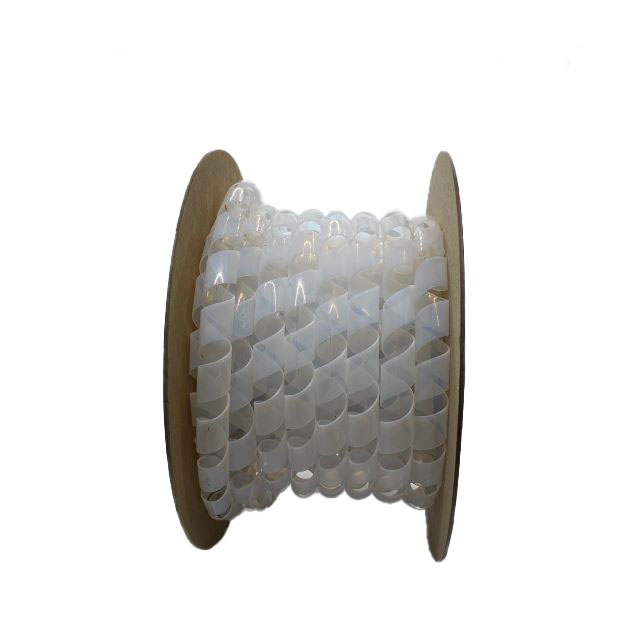

SPIRAL WRAP 0.03" X 100' NAT
| Part | Material | Length | Length | Heat Protection | Color | Diameter - Outside, Non-Expanded [diameter] | Diameter - Outside, Non-Expanded | Material Flammability Rating | Diameter - Inside, Non-Expanded [diameter] | Diameter - Inside, Non-Expanded [diameter] | Features | Type | Abrasion Protection | Operating Temperature [Max] | Operating Temperature [Min] | Wall Thickness [x] | Wall Thickness [x] | Diameter - Inside, Expanded [diameter] | Diameter - Inside, Expanded [diameter] | Type Attributes | Environment Protection [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MM Newman Corporation | Polytetrafluoroethylene (PTFE) | 100 ' | 30.48 m | Fire Resistant | Natural | 0.063 " | 1.59 mm | UL VW-1 UL94 V-0 | 0.03 in | 0.76 mm | Chemical Resistant Solvent Resistant | Spiral Wrap | Abrasion Resistant | 260 °C | -268 °C | 0.4 mm | 0.016 " | 0.125 in | 3.18 mm | Harness | UV Resistant |
