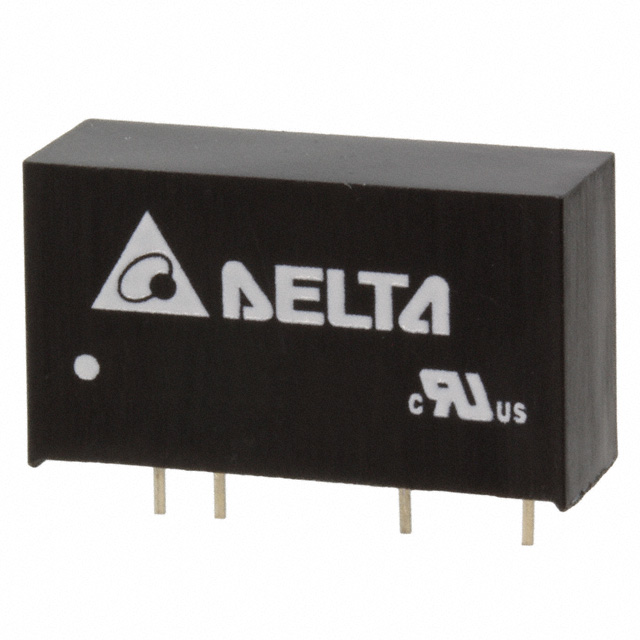

PI01S Series
Manufacturer: Delta Electronics
Beta
⌘K
DC DC CONVERTER 15V 1W
| Part | Number of Outputs | Efficiency | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Type | Features | Voltage - Output 1 | Package / Case | Mounting Type | Applications | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 1 | 66 % | 0.49 " | 0.3 " | 0.87 in | 22 mm | 7.5 mm | 12.5 mm | 4.5 V | 5.5 V | 65 mA | 85 °C | -25 °C | Isolated Module | SCP | 15 V | 7-SIP Module 5 Leads | Through Hole | Medical | 6000 VDC |
Delta Electronics | 1 | 66 % | 0.49 " | 0.3 " | 0.87 in | 22 mm | 7.5 mm | 12.5 mm | 10.8 V | 13.2 V | 80 mA | 85 °C | -25 °C | Isolated Module | SCP | 12 V | 7-SIP Module 5 Leads | Through Hole | Medical | 6000 VDC |
Delta Electronics | 1 | 66 % | 0.49 " | 0.3 " | 0.87 in | 22 mm | 7.5 mm | 12.5 mm | 4.5 V | 5.5 V | 80 mA | 85 °C | -25 °C | Isolated Module | SCP | 12 V | 7-SIP Module 5 Leads | Through Hole | Medical | 6000 VDC |
