8620 Series
Manufacturer: Belden Inc.
Beta
⌘K

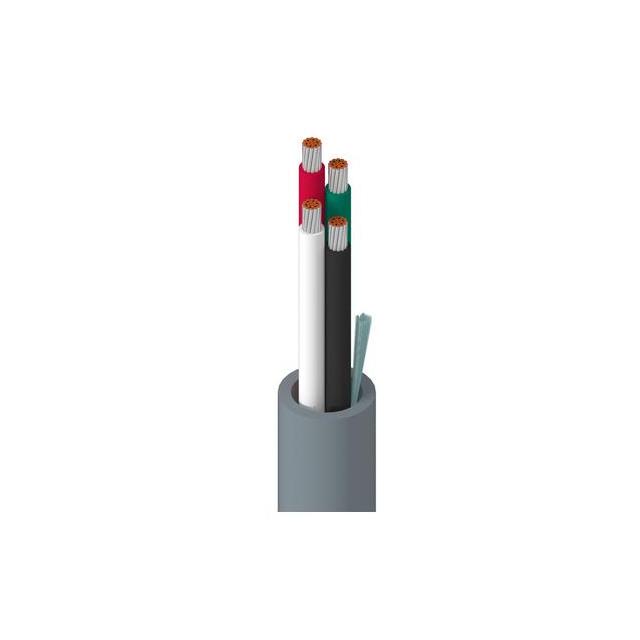

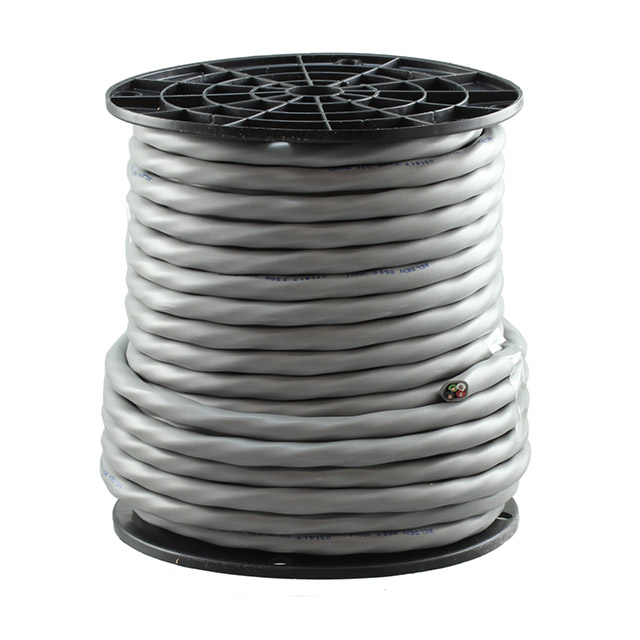

CABLE 4COND 16AWG CHROME
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Usage | Conductor Insulation | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Conductor Material | Cable Type | Length [x] | Length [x] | Length | Length | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 19 | 29 | Poly-Vinyl Chloride (PVC) | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | 4 | 80 °C | -20 ░C | 16 AWG | 0.042 in | 1.067 mm | 0.376 in | 9.55 mm | Chrome | Copper Tinned | Multi-Conductor | 100 ft | 30.5 m | |||
 Belden Inc. | 19 | 29 | Poly-Vinyl Chloride (PVC) | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | 4 | 80 °C | -20 ░C | 16 AWG | 0.042 in | 1.067 mm | 0.376 in | 9.55 mm | Chrome | Copper Tinned | Multi-Conductor | 152.4 m | 500 ft | 600 V | ||
Belden Inc. | 19 | 29 | Poly-Vinyl Chloride (PVC) | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | 4 | 80 °C | -20 ░C | 16 AWG | 0.042 in | 1.067 mm | 0.376 in | 9.55 mm | Chrome | Copper Tinned | Multi-Conductor | 304.8 m | 1000 ft | 600 V |
