D37P13 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

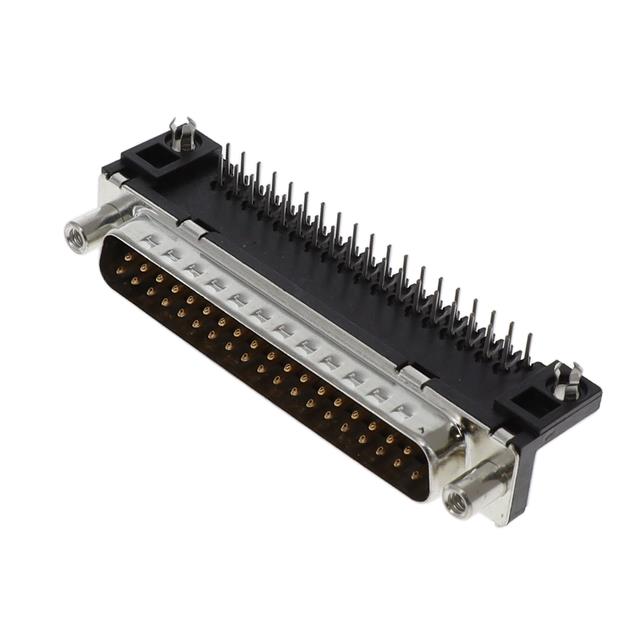

CONN D-SUB PLUG 37POS R/A SLDR
| Part | Termination | Features | Contact Type | Mounting Type | Shell Material, Finish | Current Rating (Amps) | Contact Finish | Backset Spacing | Backset Spacing | Connector Style | Color | Flange Feature | Connector Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Shell Size, Connector Layout | Contact Material | Material Flammability Rating | Number of Rows | Voltage Rating | Contact Finish Thickness | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Solder | Board Lock Grounding Indents Mounting Brackets | Signal | Through Hole Right Angle | Steel Tin-Nickel Plated | 5 A | Gold | 0.409 in | 10.4 mm | D-Sub | Black | Female Screwlock (4-40) Mating Side | Male Pins Plug | 37 | -55 °C | 125 °C | Polybutylene Terephthalate (PBT) | 4 (DC C) | Brass | UL94 V-0 | 2 | 300 VDC | 0.76 Ám | 30 Áin | ||
Amphenol ICC (FCI) | Solder | Grounding Indents | Signal | Through Hole Right Angle | 5 A | Gold | 0.409 in | 10.4 mm | D-Sub | Black | Female Screwlock (4-40) Mating Side | Male Pins Plug | 37 | -55 °C | 125 °C | Thermoplastic | 4 (DC C) | Brass | UL94 V-0 | 2 | 300 VDC | Flash | ||||
Amphenol ICC (FCI) | Solder Paste | Board Guide Grounding Indents Mounting Brackets | Signal | Through Hole Right Angle | Nickel Plated Steel | 5 A | Gold | 0.409 in | 10.4 mm | D-Sub | Black | Female Screwlock (4-40) Mating Side | Male Pins Plug | 37 | Thermoplastic Glass Filled | 4 (DC C) | Brass | UL94 V-0 | 2 | 300 VDC | 0.76 Ám | 30 Áin | -55 °C | |||
Amphenol ICC (FCI) | Solder | Grounding Indents Mounting Brackets | Signal | Through Hole Right Angle | 5 A | Gold | 0.409 in | 10.4 mm | D-Sub | Black | Female Screwlock (4-40) Mating Side | Male Pins Plug | 37 | -55 °C | 125 °C | Polyester | 4 (DC C) | Brass | UL94 V-0 | 2 | 300 VDC | Flash | ||||
Amphenol ICC (FCI) | Solder | Board Lock Grounding Indents Mounting Brackets | Signal | Through Hole Right Angle | 5 A | Gold | 0.409 in | 10.4 mm | D-Sub | Black | Female Screwlock (4-40) Mating Side | Male Pins Plug | 37 | -55 °C | 125 °C | Polybutylene Terephthalate (PBT) | 4 (DC C) | Brass | UL94 V-0 | 2 | 300 VDC | Flash | ||||
Amphenol ICC (FCI) | Solder Paste | Board Guide Grounding Indents Mounting Brackets | Signal | Through Hole Right Angle | Nickel Plated Steel | 5 A | Gold | 0.409 in | 10.4 mm | D-Sub | Black | Housing/Shell (M3) | Male Pins Plug | 37 | Thermoplastic Glass Filled | 4 (DC C) | Brass | UL94 V-0 | 2 | 300 VDC | 0.76 Ám | 30 Áin | -55 °C | |||
Amphenol ICC (FCI) | Solder | Board Lock Grounding Indents | Signal | Through Hole Right Angle | 5 A | Gold | 0.409 in | 10.4 mm | D-Sub | Black | Housing/Shell (Unthreaded) | Male Pins Plug | 37 | -55 °C | 125 °C | Polybutylene Terephthalate (PBT) | 4 (DC C) | Brass | UL94 V-0 | 2 | 300 VDC | Flash | ||||
Amphenol ICC (FCI) | Solder | Grounding Indents | Signal | Through Hole Right Angle | 5 A | Gold | 0.409 in | 10.4 mm | D-Sub | Black | Housing/Shell (Unthreaded) | Male Pins Plug | 37 | -55 °C | 125 °C | Polybutylene Terephthalate (PBT) | 4 (DC C) | Brass | UL94 V-0 | 2 | 300 VDC | Flash | ||||
Amphenol ICC (FCI) | Solder | Board Lock Grounding Indents Mounting Brackets | Signal | Through Hole Right Angle | 5 A | Gold | 0.409 in | 10.4 mm | D-Sub | Black | Housing/Shell (M3) | Male Pins Plug | 37 | -55 °C | 125 °C | Polybutylene Terephthalate (PBT) | 4 (DC C) | Brass | UL94 V-0 | 2 | 300 VDC | Flash | ||||
Amphenol ICC (FCI) | Solder | Board Lock Grounding Indents Mounting Brackets | Signal | Through Hole Right Angle | Steel Tin-Nickel Plated | 5 A | Gold | 0.409 in | 10.4 mm | D-Sub | Black | Female Screwlock (4-40) Mating Side | Male Pins Plug | 37 | -55 °C | 125 °C | Thermoplastic | 4 (DC C) | Brass | UL94 V-0 | 2 | 300 VDC | Flash |
