VG.VD Series

Catalog

GEARMOTOR 135 RPM 24V

Part	Size / Dimension [diameter]	Size / Dimension	Size / Dimension [diameter]	Mounting Hole Spacing [custom]	Mounting Hole Spacing [custom]	Voltage - Rated	Gear Reduction Ratio	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Type	RPM	Operating Temperature [Max]	Motor Type	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Length - Shaft and Bearing	Length - Shaft and Bearing	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]

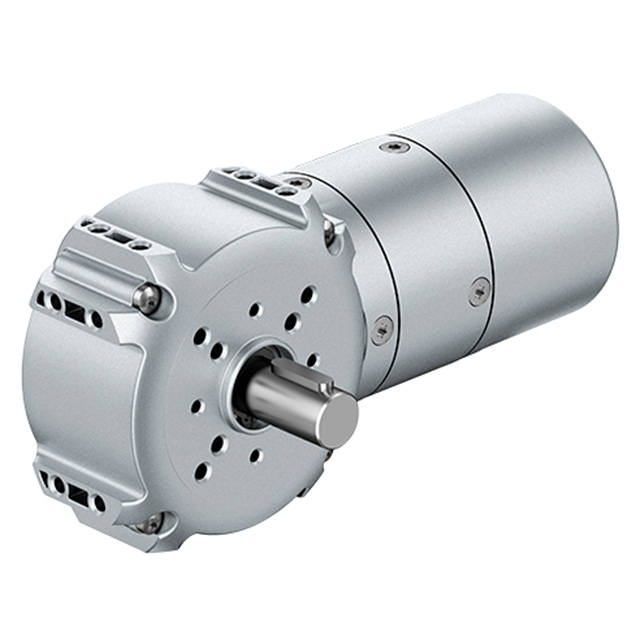

ebm-papst Inc. VG.VD4915BK1.EC75.2.33	1.929 in	Round	49 mm	52 mm	2.047 in	24 VDC	33.3	7826 mNm	1108 oz-in	DC Motor	135 RPM	40 °C	Brushless (BLDC)	15 mm	0.591 in	1.181 in	30 mm

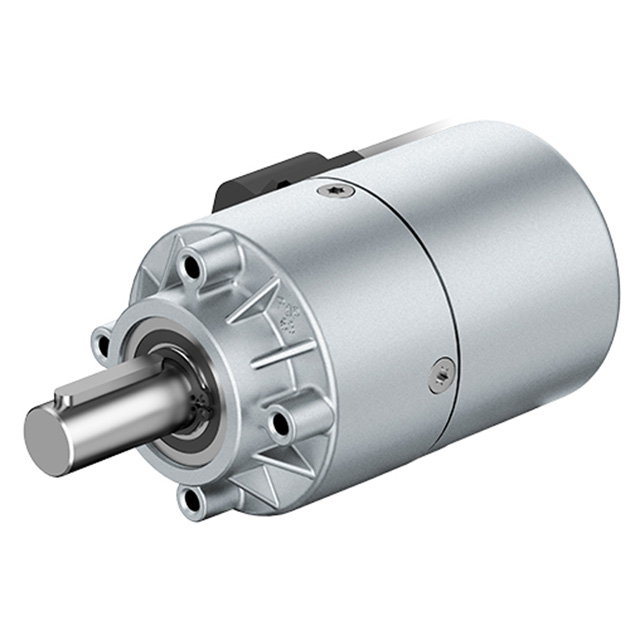

ebm-papst Inc. VG.VD4915BK1.P63.1.5	1.929 in	Round	49 mm	52 mm	2.047 in	24 VDC	5	1175 mNm	166.4 oz-in	DC Motor	900 RPM	40 °C	Brushless (BLDC)	15 mm	0.591 in			39 mm	1.535 "

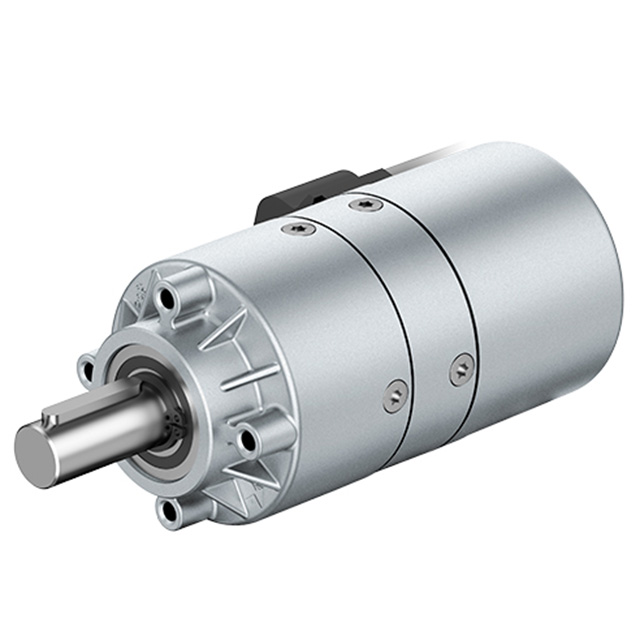

ebm-papst Inc. VG.VD4915BK1.P63.2.30	1.929 in	Round	49 mm	52 mm	2.047 in	24 VDC	30	7050 mNm	998.6 oz-in	DC Motor		40 °C	Brushless (BLDC)	15 mm	0.591 in			39 mm	1.535 "
