KSC621 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 32V

Part	Switch Function	Operating Force	Illumination	Contact Rating @ Voltage	Mounting Type	Circuit	Ingress Protection	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Height off PCB, Vertical	Actuator Orientation	Mechanical Life	Termination Style	Switch Travel	Outline [y]	Outline [x]

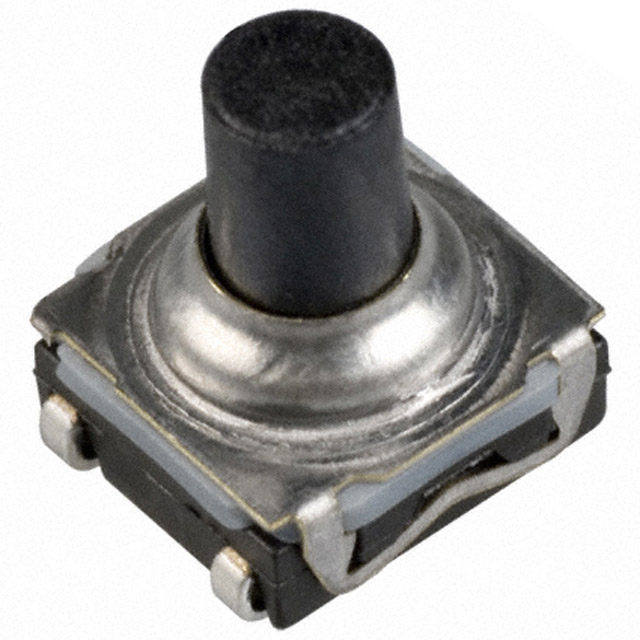

Littelfuse/Commercial Vehicle Products KSC621J	Off-Mom	170 gf	Non-Illuminated	0.05 A	Surface Mount	SPST-NO	IP67 - Dust Tight Waterproof	Standard	85 °C	-40 °C	7.7 mm	Top Actuated	300000 Cycles	J Lead	0.4 mm	6.2 mm	6.2 mm
Littelfuse/Commercial Vehicle Products KSC621J LFS	Off-Mom	170 gf	Non-Illuminated	0.05 A	Surface Mount	SPST-NO	IP67 - Dust Tight Waterproof	Standard	85 °C	-40 °C	7.7 mm	Top Actuated	300000 Cycles	J Lead	0.4 mm	6.2 mm	6.2 mm
Littelfuse/Commercial Vehicle Products KSC621V	Off-Mom	170 gf	Non-Illuminated	0.05 A	Surface Mount Right Angle	SPST-NO	IP67 - Dust Tight Waterproof	Standard	85 °C	-40 °C		Side Actuated		SMD (SMT) Tab		3.8 mm	7.4 mm
