V7815 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 15V 15W

Part	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Features	Mounting Type	Efficiency	Voltage - Output 1	Type	Package / Case	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Current - Output (Max) [Max]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Control Features

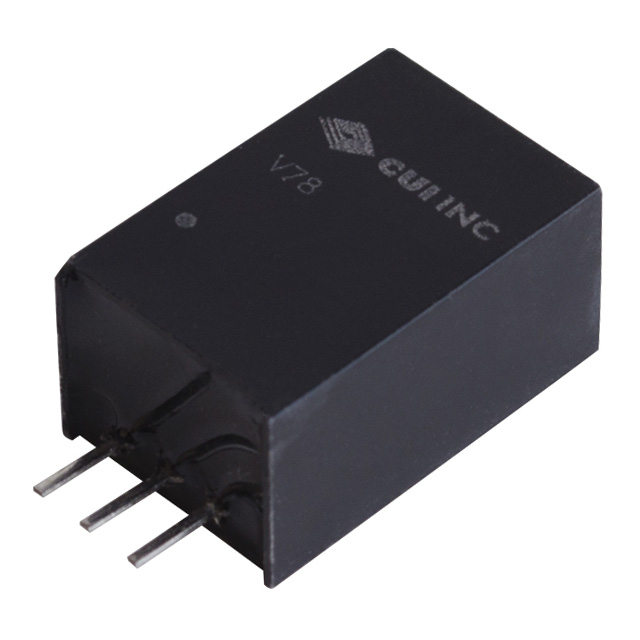

CUI Inc. V7815-1000	20 V	32 V	OTP SCP	Through Hole	94 %	15 V	Linear Regulator Replacement	3-SIP Module	9 mm	0.69 in	0.35 in	0.45 "	11.5 mm	17.5 mm	15 W	1 A	ITE (Commercial)	85 °C	-40 C	1
CUI Inc. V7815W-500R	20 V	72 V	OTP SCP	Right Angle Through Hole	94 %	15 V	Linear Regulator Replacement	3-SIP Module	11.5 mm	0.35 in	0.45 in	0.69 in	17.5 mm	9 mm	7.5 W	500 mA	ITE (Commercial)	85 °C	-40 C	1
CUI Inc. V7815-500	18 V	32 V	OTP SCP	Through Hole	96 %	15 V	Linear Regulator Replacement	3-SIP Module	7.6 mm	0.4 "	0.3 "	0.45 "	11.4 mm	10.2 mm	7.5 W	500 mA	ITE (Commercial)	85 °C	-40 C	1

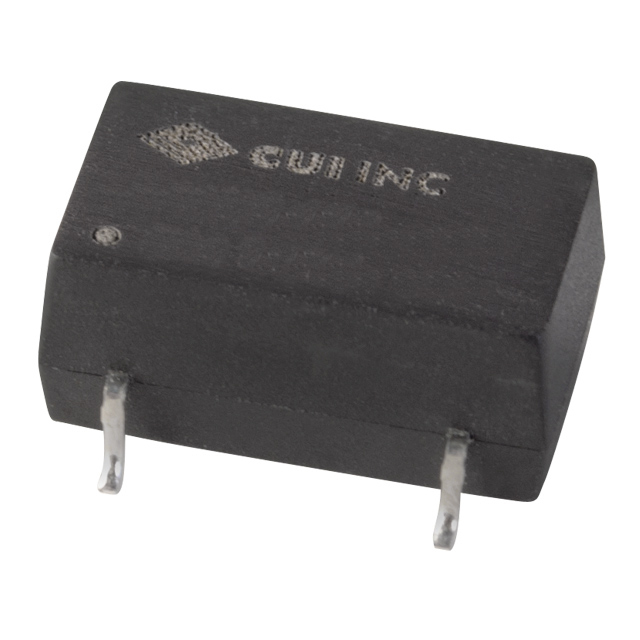

CUI Inc. V7815-500-SMT-TR	17 V	28 V	OTP Remote On/Off SCP	Surface Mount	96 %	15 V	Linear Regulator Replacement	10-SMD Module 6 Leads	8.3 mm	0.29 in	0.33 "	0.6 "	15.2 mm	7.3 mm	7.5 W	500 mA	ITE (Commercial)	85 °C	-40 C	1	Active High Enable
CUI Inc. V7815W-500	20 V	72 V	OTP SCP	Through Hole	94 %	15 V	Linear Regulator Replacement	3-SIP Module	9 mm	0.69 in	0.35 in	0.45 "	11.5 mm	17.5 mm	7.5 W	500 mA	ITE (Commercial)	85 °C	-40 C	1
CUI Inc. V7815-1000R	20 V	32 V	OTP SCP	Through Hole	94 %	15 V	Linear Regulator Replacement	3-SIP Module	9 mm	0.69 in	0.35 in	0.45 "	11.5 mm	17.5 mm	15 W	1 A	ITE (Commercial)	85 °C	-40 C	1
