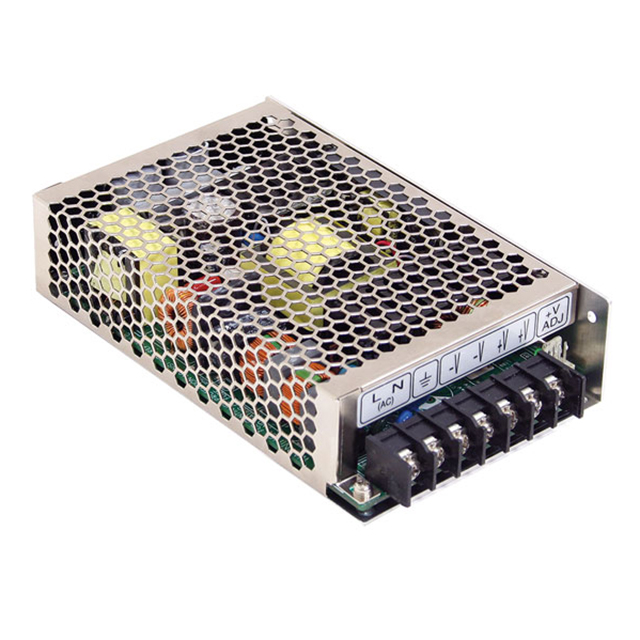

MSP-100 Series

Catalog

AC/DC CONVERTER 7.5V 101W

Part	Number of Outputs	Voltage - Output 1	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Type	Applications	Mounting Type	Current - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Voltage - Isolation	Features	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)
MEAN WELL USA Inc. MSP-100-7.5	1	7.5 V	CB CE cURus TUV	-40 °C	60 °C	Enclosed	Medical	Chassis Mount	13.5 A	1.5 in	6.26 in	159 mm	3.82 in	38 mm	97 mm	84 %	4000 V	Adjustable Output PFC Remote On/Off Universal Input	85 VAC 120 VDC	264 VAC 370 VDC	101 W
MEAN WELL USA Inc. MSP-100-12	1	12 V	CB CE cURus TUV	-40 °C	60 °C	Enclosed	Medical	Chassis Mount		1.5 in	6.26 in	159 mm	3.82 in	38 mm	97 mm	87.5 %	4000 V	Adjustable Output PFC Remote On/Off Universal Input	85 VAC 120 VDC	264 VAC 370 VDC	102 W
MEAN WELL USA Inc. MSP-100-15	1	15 V	CB CE cURus TUV	-40 °C	60 °C	Enclosed	Medical	Chassis Mount	7 A	1.5 in	6.26 in	159 mm	3.82 in	38 mm	97 mm	88 %	4000 V	Adjustable Output PFC Remote On/Off Universal Input	85 VAC 120 VDC	264 VAC 370 VDC	105 W
MEAN WELL USA Inc. MSP-100-5	1	5 V	CB CE cURus TUV	-40 °C	60 °C	Enclosed	Medical	Chassis Mount	17 A	1.5 in	6.26 in	159 mm	3.82 in	38 mm	97 mm	83 %	4000 V	Adjustable Output PFC Remote On/Off Universal Input	85 VAC 120 VDC	264 VAC 370 VDC	85 W
MEAN WELL USA Inc. MSP-100-3.3	1	3.3 V	CB CE cURus TUV	-40 °C	60 °C	Enclosed	Medical	Chassis Mount	20 A	1.5 in	6.26 in	159 mm	3.82 in	38 mm	97 mm	78 %	4000 V	Adjustable Output PFC Remote On/Off Universal Input	85 VAC 120 VDC	264 VAC 370 VDC	66 W
MEAN WELL USA Inc. MSP-100-24	1	24 V	CB CE cURus TUV	-40 °C	60 °C	Enclosed	Medical	Chassis Mount	4.5 A	1.5 in	6.26 in	159 mm	3.82 in	38 mm	97 mm	88.5 %	4000 V	Adjustable Output PFC Remote On/Off Universal Input	85 VAC 120 VDC	264 VAC 370 VDC	108 W
