PV4F230 Series

Manufacturer: E-Switch

Catalog

SWITCH PUSHBUTTON SPDT 2A 24V

Part	Electrical Life	Mechanical Life	Actuator Type	Panel Cutout Dimensions [diameter]	Ingress Protection	Voltage Rating - DC	Circuit	Illumination Voltage (Nominal)	Switch Function	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Current Rating (Amps)	Mounting Type	Color - Actuator/Cap	Type	Actuator Marking

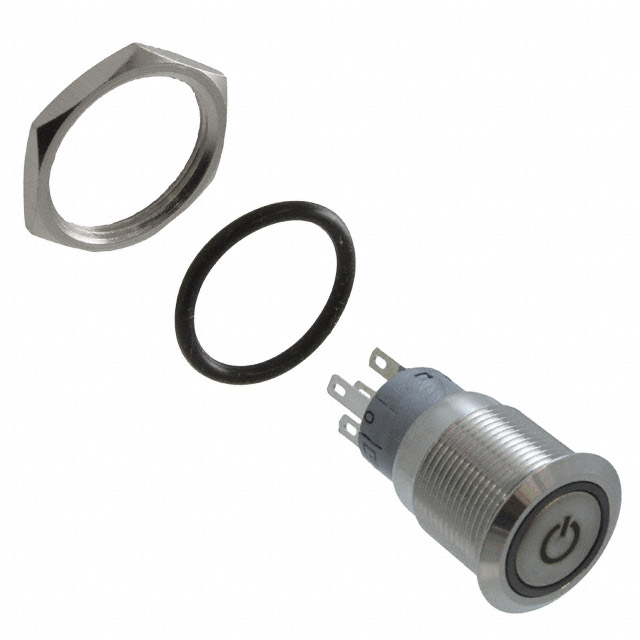

E-Switch PV4F230SS-3K1-M01	50000 Cycles	1000000 Cycles	Button Flush Round	19 mm	IP65 - Dust Tight Water Resistant	24 V	SPDT	1.8 VDC 2.8 VDC	On-On	Green/Orange LED	55 °C	-20 ░C	Solder Quick Connect - 0.110" (2.8mm)	2 A	Panel Mount Front	Silver	Anti-Vandal Illuminated	Power Symbol

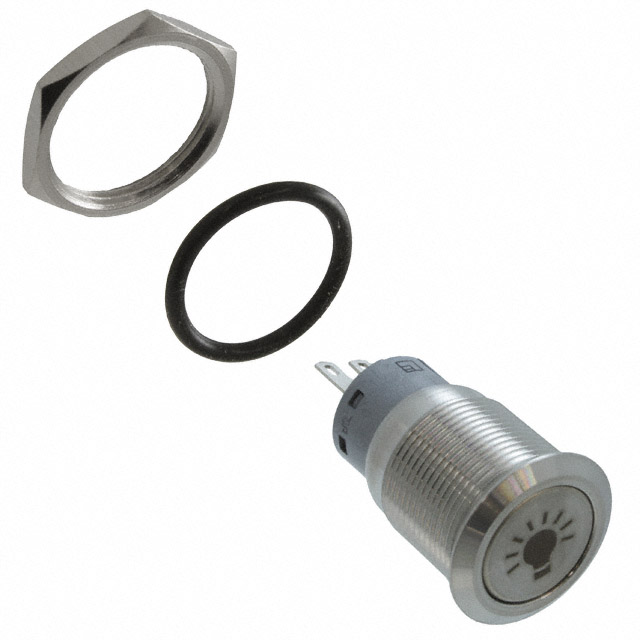

E-Switch PV4F230SS-M05	50000 Cycles	1000000 Cycles	Button Flush Round	19 mm	IP65 - Dust Tight Water Resistant	24 V	SPDT		On-On		55 °C	-20 ░C	Solder Quick Connect - 0.110" (2.8mm)	2 A	Panel Mount Front	Silver	Anti-Vandal	No Marking
E-Switch PV4F230SS-324	50000 Cycles	1000000 Cycles	Button Flush Round	19 mm	IP65 - Dust Tight Water Resistant	24 V	SPDT	12 VDC	On-On	LED Orange	55 °C	-20 ░C	Solder Quick Connect - 0.110" (2.8mm)	2 A	Panel Mount Front	Silver	Anti-Vandal Illuminated	No Marking

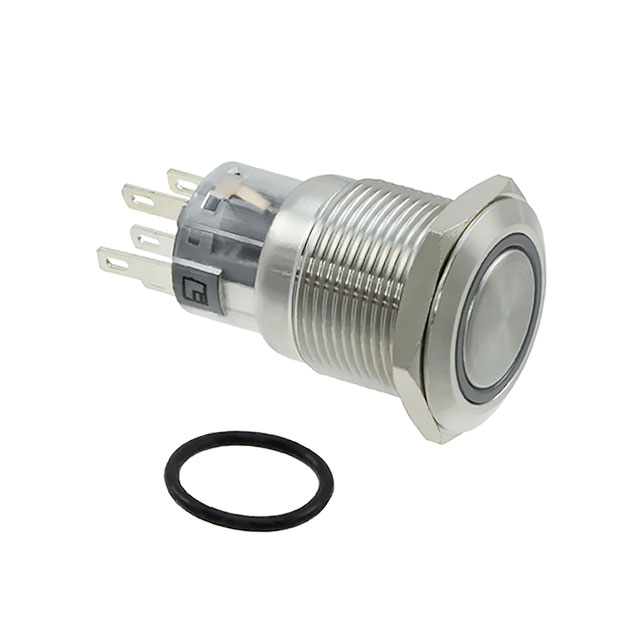

E-Switch PV4F230SS-301	50000 Cycles	1000000 Cycles	Button Flush Round	19 mm	IP65 - Dust Tight Water Resistant	24 V	SPDT	2.8 VDC	On-On	LED White	55 °C	-20 ░C	Solder Quick Connect - 0.110" (2.8mm)	2 A	Panel Mount Front	Silver	Anti-Vandal Illuminated	No Marking
E-Switch PV4F230SS-345	50000 Cycles	1000000 Cycles	Button Flush Round	19 mm	IP65 - Dust Tight Water Resistant	24 V	SPDT	24 V	On-On	Blue LED	55 °C	-20 ░C	Solder Quick Connect - 0.110" (2.8mm)	2 A	Panel Mount Front	Silver	Anti-Vandal Illuminated	No Marking

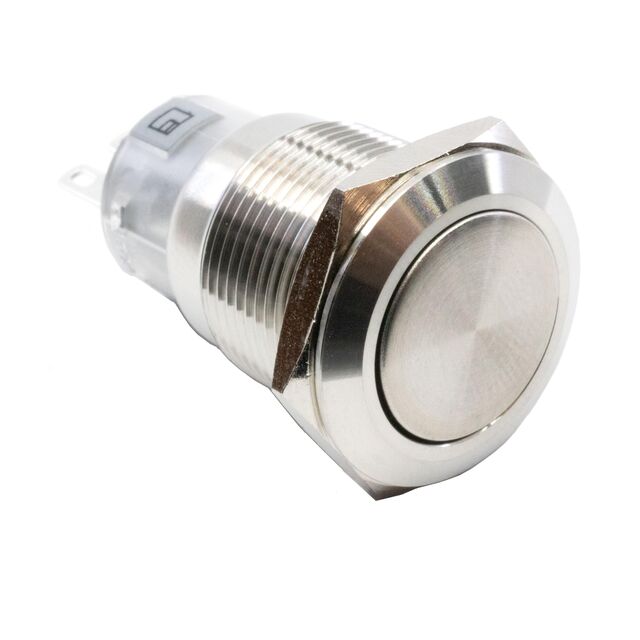

E-Switch PV4F230SS	50000 Cycles	1000000 Cycles	Button Flush Round	19 mm	IP65 - Dust Tight Water Resistant	24 V	SPDT		On-On		55 °C	-20 ░C	Solder Quick Connect - 0.110" (2.8mm)	2 A	Panel Mount Front	Silver	Anti-Vandal	No Marking
E-Switch PV4F230SS-325	50000 Cycles	1000000 Cycles	Button Flush Round	19 mm	IP65 - Dust Tight Water Resistant	24 V	SPDT	24 V	On-On	LED Orange	55 °C	-20 ░C	Solder Quick Connect - 0.110" (2.8mm)	2 A	Panel Mount Front	Silver	Anti-Vandal Illuminated	No Marking
E-Switch PV4F230SS-346	50000 Cycles	1000000 Cycles	Button Flush Round	19 mm	IP65 - Dust Tight Water Resistant	24 V	SPDT	125 VAC	On-On	Blue LED	55 °C	-20 ░C	Solder Quick Connect - 0.110" (2.8mm)	2 A	Panel Mount Front	Silver	Anti-Vandal Illuminated	No Marking
E-Switch PV4F230SS-315	50000 Cycles	1000000 Cycles	Button Flush Round	19 mm	IP65 - Dust Tight Water Resistant	24 V	SPDT	24 V	On-On	LED Red	55 °C	-20 ░C	Solder Quick Connect - 0.110" (2.8mm)	2 A	Panel Mount Front	Silver	Anti-Vandal Illuminated	No Marking
E-Switch PV4F230SS-335	50000 Cycles	1000000 Cycles	Button Flush Round	19 mm	IP65 - Dust Tight Water Resistant	24 V	SPDT	24 V	On-On	Green LED	55 °C	-20 ░C	Solder Quick Connect - 0.110" (2.8mm)	2 A	Panel Mount Front	Silver	Anti-Vandal Illuminated	No Marking
