337-072 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 72POS 0.156

...

Part	Termination Rows [custom]	Material - Insulation	Color	Number of Rows [custom]	Mounting Type	Features	Pitch	Pitch	Flange Feature	Number of Positions/Bay/Row	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Contact Type	Read Out	Contact Material	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Gender	Termination	Flange Feature [diameter]	Flange Feature [diameter]

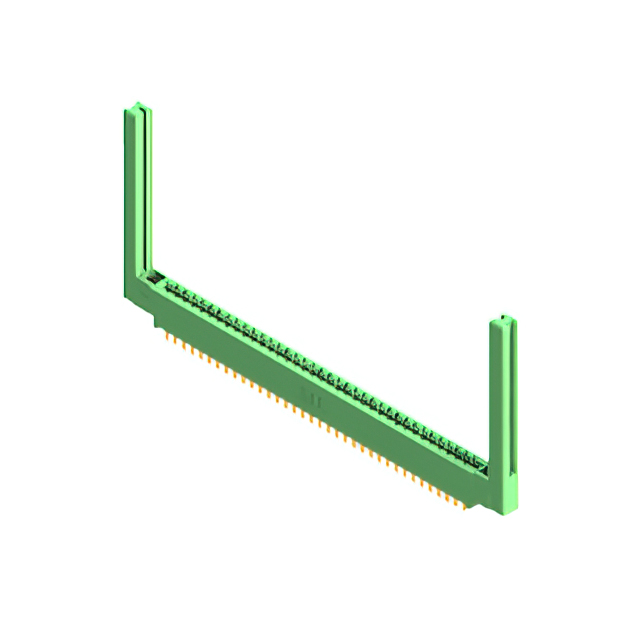

EDAC Inc. 337-072-500-858	2	Polyester Thermoplastic	Green	2	Through Hole	Card Guides	3.96 mm	0.156 in	4-40 Threaded Insert Top Mount Opening	36	72	0.25 Ám	10 Áin	Gold	Cantilever	Dual	Copper Alloy	Non Specified - Dual Edge	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Solder Eyelet(s)
EDAC Inc. 337-072-500-202	2	Polyester Thermoplastic	Green	2	Through Hole		3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	36	72	0.25 Ám	10 Áin	Gold	Cantilever	Dual	Copper Alloy	Non Specified - Dual Edge	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Solder Eyelet(s)	3.25 mm	0.128 "

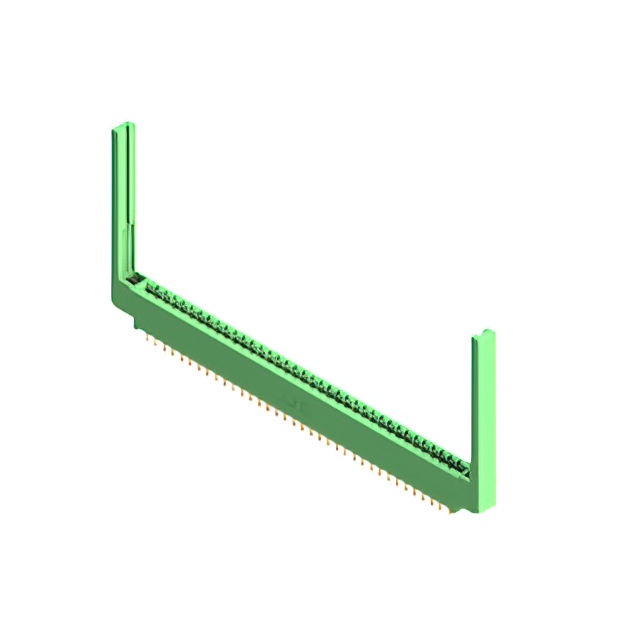

EDAC Inc. 337-072-558-868	2	Polyester Thermoplastic	Green	2	Right Angle Through Hole		3.96 mm	0.156 in	4-40 Threaded Insert Top Mount Opening	36	72	0.25 Ám	10 Áin	Gold	Cantilever	Dual	Copper Alloy	Non Specified - Dual Edge	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Wire Wrap

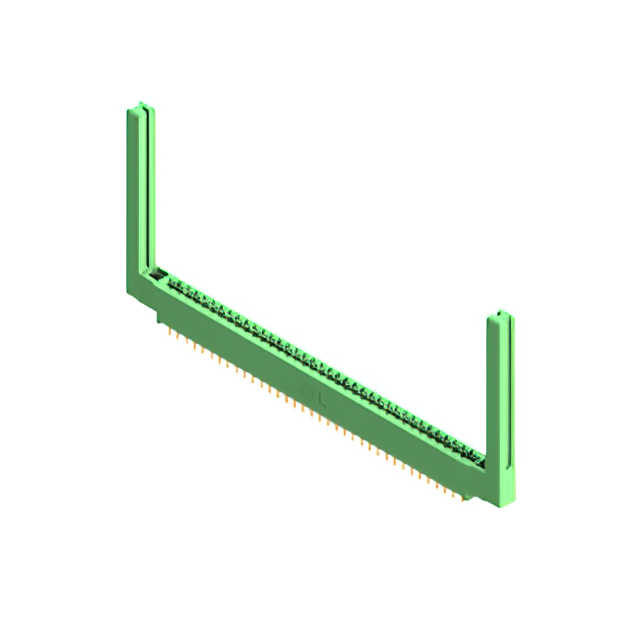

EDAC Inc. 337-072-523-858	2	Polyester Thermoplastic	Green	2	Through Hole		3.96 mm	0.156 in	4-40 Threaded Insert Top Mount Opening	36	72	0.25 Ám	10 Áin	Gold	Cantilever	Dual	Copper Alloy	Non Specified - Dual Edge	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Solder
EDAC Inc. 337-072-542-812	2	Polyester Thermoplastic	Green	2	Through Hole		3.96 mm	0.156 in	Side Mount Opening Unthreaded	36	72	0.25 Ám	10 Áin	Gold	Cantilever	Dual	Copper Alloy	Non Specified - Dual Edge	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Wire Wrap	3.25 mm	0.128 "
EDAC Inc. 337-072-560-208	2	Polyester Thermoplastic	Green	2	Board Edge Straddle Mount	Card Extender	3.96 mm	0.156 in	4-40 Flush Mount Threaded Insert Top Opening	36	72	0.25 Ám	10 Áin	Gold	Cantilever	Dual	Copper Alloy	Non Specified - Dual Edge	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Solder
EDAC Inc. 337-072-542-802	2	Polyester Thermoplastic	Green	2	Through Hole		3.96 mm	0.156 in		36	72	0.25 Ám	10 Áin	Gold	Cantilever	Dual	Copper Alloy	Non Specified - Dual Edge	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Wire Wrap	3.25 mm	0.128 "
EDAC Inc. 337-072-500-803	2	Polyester Thermoplastic	Green	2	Through Hole		3.96 mm	0.156 in	Floating Bobbin Top Mount Opening	36	72	0.25 Ám	10 Áin	Gold	Cantilever	Dual	Copper Alloy	Non Specified - Dual Edge	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Solder Eyelet(s)	2.95 mm	0.116 "

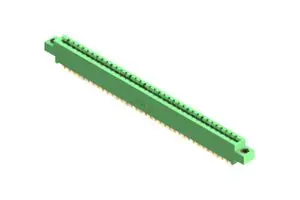

EDAC Inc. 337-072-560-807	2	Polyester Thermoplastic	Green	2	Board Edge Straddle Mount	Card Extender	3.96 mm	0.156 in	M3 Threaded Insert Top Mount Opening	36	72	0.25 Ám	10 Áin	Gold	Cantilever	Dual	Copper Alloy	Non Specified - Dual Edge	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Solder

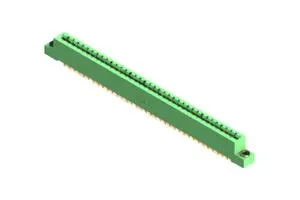

EDAC Inc. 337-072-560-203	2	Polyester Thermoplastic	Green	2	Board Edge Straddle Mount	Card Extender	3.96 mm	0.156 in	Floating Bobbin Flush Mount	36	72	0.25 Ám	10 Áin	Gold	Cantilever	Dual	Copper Alloy	Non Specified - Dual Edge	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Solder	2.95 mm	0.116 "
