EC3AB Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

LOW POWER DC-DC I/P:9-18VDC O/P:

Part	Voltage - Output 1	Type	Applications	Control Features	Efficiency	Package / Case	Power (Watts)	Approval Agency	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Number of Outputs	Current - Output (Max) [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Voltage - Output 2	Current - Output (Max)
Cincon Electronics Co. LTD EC3AB17MS	3.3 V	Isolated Module	ITE (Commercial)	Active High Enable	72 %	24-SMD Module 18 Leads	1.98 W	CE cURus	Surface Mount	31.8 mm	14 mm	0.8 "	0.55 in	20.3 mm	1.25 in	18 V	1	600 mA	Adjustable Output Remote On/Off	71 °C	-25 °C	9 V	500 V
Cincon Electronics Co. LTD EC3AB27HMT	3.3 V	Isolated Module	ITE (Commercial)	Active High Enable	74 %	24-DIP Module	1.98 W	CE cURus	Through Hole	31.8 mm		0.8 "	0.5 in		1.25 in	36 V	1	600 mA	Adjustable Output Remote On/Off	71 °C	-25 °C	18 V	1.5 kV	12.7 mm	20.3 mm	11 Leads
Cincon Electronics Co. LTD EC3AB24HMS	5 V	Isolated Module	ITE (Commercial)	Active High Enable	76 %	24-SMD Module 18 Leads	3 W	CE cURus	Surface Mount	31.8 mm	14 mm	0.8 "	0.55 in	20.3 mm	1.25 in	36 V	2	0.3 A	Adjustable Output Remote On/Off	71 °C	-25 °C	18 V	1.5 kV				-5 V
Cincon Electronics Co. LTD EC3AB27HM	3.3 V	Isolated Module	ITE (Commercial)		74 %	24-DIP Module 14 Leads	2 W	CE cURus	Through Hole	31.8 mm		0.8 "	0.5 in		1.25 in	36 V	1	600 mA	SCP	71 °C	-25 °C	18 V	1.5 kV	12.7 mm	20.3 mm
Cincon Electronics Co. LTD EC3AB35M	12 V	Isolated Module	ITE (Commercial)		76 %	24-DIP Module 14 Leads	3 W		Through Hole	31.8 mm		0.8 "	0.5 in		1.25 in	72 V	2		SCP	71 °C	-25 °C	36 V	500 V	12.7 mm	20.3 mm		-12 V	125 mA
Cincon Electronics Co. LTD EC3AB11MS	5 V	Isolated Module	ITE (Commercial)	Active High Enable	76 %	24-SMD Module 18 Leads	3 W	CE cURus	Surface Mount	31.8 mm	14 mm	0.8 "	0.55 in	20.3 mm	1.25 in	18 V	1	600 mA	Adjustable Output Remote On/Off	71 °C	-25 °C	9 V	500 V
Cincon Electronics Co. LTD EC3AB33M	15 V	Isolated Module	ITE (Commercial)		77 %	24-DIP Module 14 Leads	3 W		Through Hole	31.8 mm		0.8 "	0.5 in		1.25 in	72 V	1	200 mA	SCP	71 °C	-25 °C	36 V	500 V	12.7 mm	20.3 mm
Cincon Electronics Co. LTD EC3AB23	15 V	Isolated Module	ITE (Commercial)		80 %	24-DIP Module 14 Leads	3 W		Through Hole	31.8 mm		0.8 "	0.5 in		1.25 in	36 V	1	200 mA	SCP	71 °C	-25 °C	18 V	500 V	12.7 mm	20.3 mm

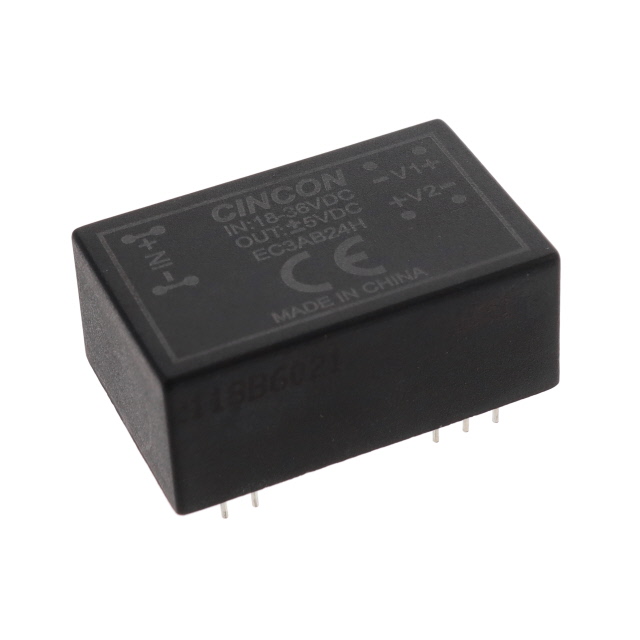

Cincon Electronics Co. LTD EC3AB24H	5 V	Isolated Module	ITE (Commercial)		76 %	24-DIP Module 14 Leads	3 W	CE cURus	Through Hole	31.8 mm		0.8 "	0.5 in		1.25 in	36 V	2	0.3 A	SCP	71 °C	-25 °C	18 V	3000 V	12.7 mm	20.3 mm		-5 V
Cincon Electronics Co. LTD EC3AB34MS	5 V	Isolated Module	ITE (Commercial)	Active High Enable	78 %	24-SMD Module 18 Leads	3 W	CE cURus	Surface Mount	31.8 mm	14 mm	0.8 "	0.55 in	20.3 mm	1.25 in	72 V	2	0.3 A	Adjustable Output Remote On/Off	71 °C	-25 °C	36 V	500 V				-5 V
