2029096 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

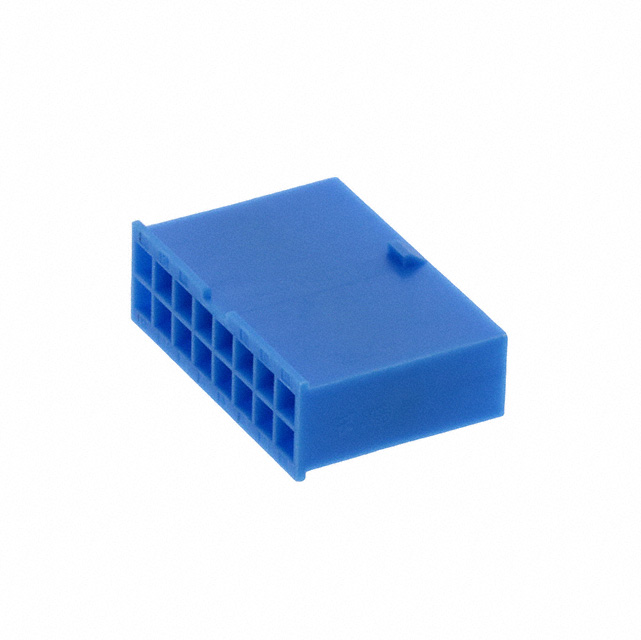

CONN PLUG HSG 16POS 4.20MM
| Part | Pitch [x] | Pitch [x] | Number of Rows | Mounting Type | Connector Type | Insulation Material | Contact Termination | Row Spacing | Row Spacing | Contact Type | Fastening Type | Number of Positions | Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 4.2 mm | 0.165 in | 2 | Free Hanging (In-Line) | Plug | Nylon Polyamide (PA) | Crimp | 4.2 mm | 0.165 in | Male Pin | Locking Ramp | 16 | Blue | -40 °C | 105 ░C | ||

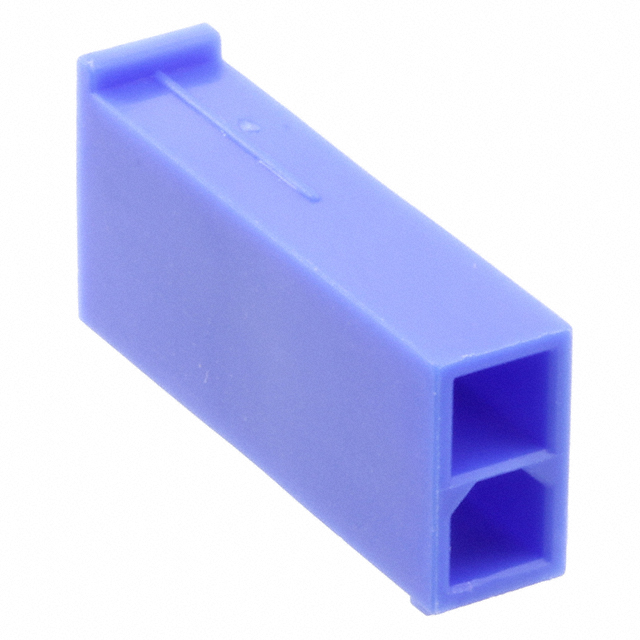

 TE Connectivity Raychem Cable Protection | 2 | Free Hanging (In-Line) | Plug | Nylon Polyamide (PA) | Crimp | 4.2 mm | 0.165 in | Male Pin | Blue | 2 | Contacts Not Included | ||||||
TE Connectivity Raychem Cable Protection | 4.2 mm | 0.165 in | 2 | Free Hanging (In-Line) | Plug | Nylon Polyamide (PA) | Crimp | 4.2 mm | 0.165 in | Male Pin | Locking Ramp | Blue | 4 | Contacts Not Included |
