DSH-31 Series

Catalog

POWER INDUCTORS - LEADED DSH STORAGE CHOKE 4A

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR)	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [z]	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type

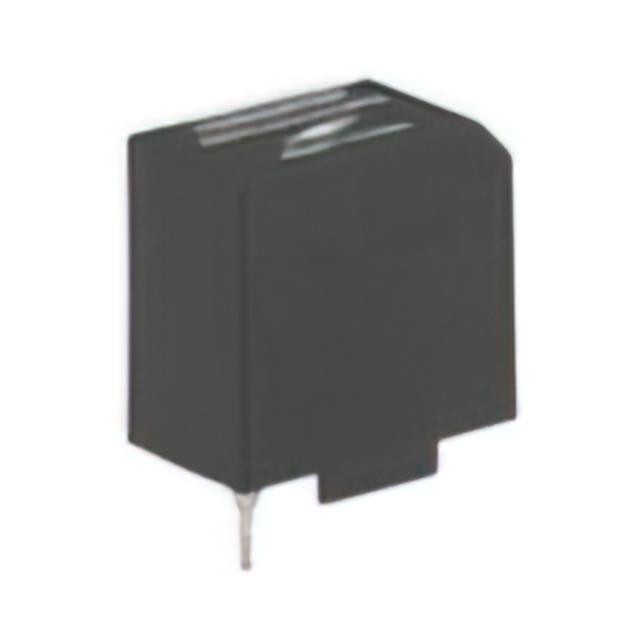

SCHURTER Inc. DSH-31-0004	1.24 in	18.5 mm	0.728 in	31.5 mm	40 mOhm	4 Leads Horizontal Radial	1.299 in	33 mm	4 A	125 °C	-40 C	Through Hole
SCHURTER Inc. DSH-31-0001	1.24 in	18.5 mm	0.728 in	31.5 mm	240 mOhm	4 Leads Horizontal Radial	1.299 in	33 mm	1.6 A	125 °C	-40 C	Through Hole
SCHURTER Inc. DSH-31-0002	1.24 in	18.5 mm	0.728 in	31.5 mm	140 mOhm	4 Leads Horizontal Radial	1.299 in	33 mm	2 A	125 °C	-40 C	Through Hole
