CPS19-NO Series

Catalog

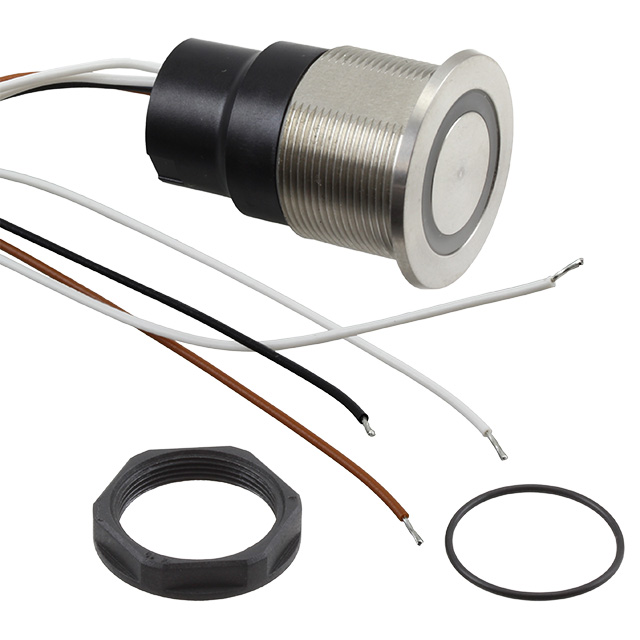

SWITCH PUSH SPST-NO 100MA 42V

Part	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Actuator Marking	Termination Style	Ingress Protection	Features	Current Rating (Amps)	Circuit	Voltage Rating - DC	Type	Illumination Type, Color	Mounting Type	Actuator Type	Switch Function	Illumination Voltage (Nominal) [Min]	Illumination Voltage (Nominal) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
SCHURTER Inc. CPS19-NO00A10-SNCSNCNF-RI0GBVAR-W1053-S	Silver	19.1 mm	42 V	CTRL	Wire Leads	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals	100 mA	SPST-NO	60 VDC	Capacitive Illuminated	Blue/Green LED	Panel Mount Front	Button Flush Round	Off-Mom	5 VDC	28 VDC	60 °C	-40 C
SCHURTER Inc. CPS19-NO00A10-SNCCWTWF-AI0WRVAR-W1059-S	Clear	19.1 mm	42 V	BACK	Wire Leads	IP67 - Dust Tight Waterproof	Ceramic Actuator Finger Guide	100 mA	SPST-NO	60 VDC	Capacitive Illuminated	LED Red White	Panel Mount Front	Button Flush Round	Off-Mom	5 VDC	28 VDC	60 °C	-40 C
SCHURTER Inc. CPS19-NO00A10-SNCSNCNF-RI0GWVAR-W0000-S	Silver	19.1 mm	42 V	No Marking	Wire Leads	IP67 - Dust Tight Waterproof	Tactile Feedback	100 mA	SPST-NO	60 VDC	Capacitive Illuminated	Green/White LED	Panel Mount Front	Button Flush Round	Off-Mom	5 VDC	28 VDC	60 °C	-40 C
SCHURTER Inc. CPS19-NO00A10-SNCSNCWF-RI0MAVAR-W0000-S	Silver	19.1 mm	42 V	No Marking	Wire Leads	IP67 - Dust Tight Waterproof	Finger Guide	100 mA	SPST-NO	60 VDC	Capacitive Illuminated	LED Magenta	Panel Mount Front	Button Flush Round	Off-Mom	5 VDC	28 VDC	60 °C	-40 C
SCHURTER Inc. CPS19-NO00A10-SNCSNCNF-RI0BRVAR-W0000-S	Silver	19.1 mm	42 V	No Marking	Wire Leads	IP67 - Dust Tight Waterproof	Sealed	100 mA	SPST-NO	60 VDC	Capacitive Illuminated	Blue LED Red	Panel Mount Front	Button Flush Round	Off-Mom	5 VDC	28 VDC	60 °C	-40 C
SCHURTER Inc. CPS19-NO00A10-SNCSNCNF-RI0WYVAR-W0000-S	Silver	19.1 mm	42 V	No Marking	Wire Leads	IP67 - Dust Tight Waterproof	Washable	100 mA	SPST-NO	60 VDC	Capacitive Illuminated		Panel Mount Front	Button Flush Round	Off-Mom	5 VDC	28 VDC	60 °C	-40 C
SCHURTER Inc. CPS19-NO00A10-SNCSNCNF-RI0MCVAR-W1018-S	Silver	19.1 mm	42 V	R	Wire Leads	IP67 - Dust Tight Waterproof		100 mA	SPST-NO	60 VDC	Capacitive Illuminated	Cyan/Magenta LED	Panel Mount Front	Button Flush Round	Off-Mom	5 VDC	28 VDC	60 °C	-40 C
SCHURTER Inc. CPS19-NO00A10-SNCSNCWF-RI0YBVAR-W0000-S	Silver	19.1 mm	42 V	No Marking	Wire Leads	IP67 - Dust Tight Waterproof	Finger Guide	100 mA	SPST-NO	60 VDC	Capacitive Illuminated	Blue/Yellow LED	Panel Mount Front	Button Flush Round	Off-Mom	5 VDC	28 VDC	60 °C	-40 C
SCHURTER Inc. CPS19-NO00A10-SNCSNCNF-RI0RDVAR-W0000-S	Silver	19.1 mm	42 V	No Marking	Wire Leads	IP67 - Dust Tight Waterproof	Tactile Feedback	100 mA	SPST-NO	60 VDC	Capacitive Illuminated	LED Red	Panel Mount Front	Button Flush Round	Off-Mom	5 VDC	28 VDC	60 °C	-40 C
SCHURTER Inc. CPS19-NO00A10-SNCSNCNF-RI0BRVAR-W1025-S	Silver	19.1 mm	42 V	Y	Wire Leads	IP67 - Dust Tight Waterproof		100 mA	SPST-NO	60 VDC	Capacitive Illuminated	Blue LED Red	Panel Mount Front	Button Flush Round	Off-Mom	5 VDC	28 VDC	60 °C	-40 C
