725-057 Series
Manufacturer: EDAC Inc.
Beta
⌘K

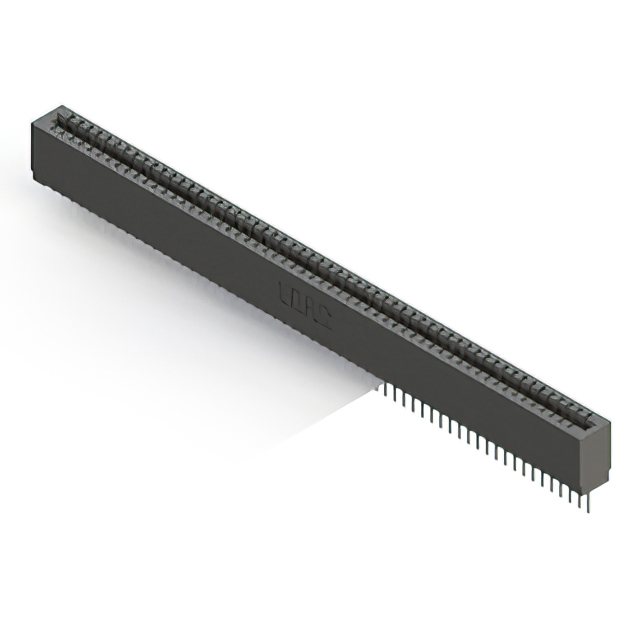

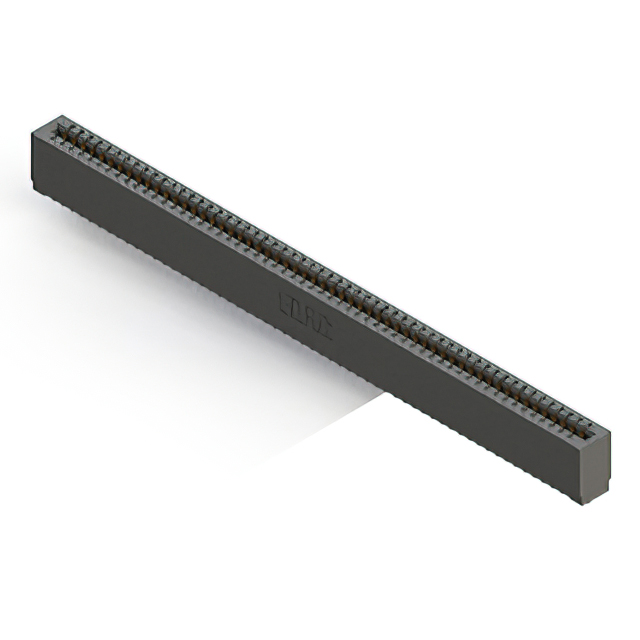

CONN EDGE SINGLE FML 57POS 0.100
| Part | Termination Rows | Material - Insulation | Number of Positions | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Color | Contact Finish | Pitch | Pitch | Termination | Mounting Type | Gender | Number of Positions/Bay/Row [custom] | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Card Type | Read Out | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 57 | 1 | -40 C | 105 ░C | Copper Alloy | Black | Gold | 0.1 " | 2.54 mm | Press-Fit Wire Wrap | Through Hole | Female | 57 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | 30 Áin | 0.76 Ám |
 EDAC Inc. | 1 | Polyester Thermoplastic | 57 | 1 | -40 C | 105 ░C | Copper Alloy | Black | Gold | 0.1 " | 2.54 mm | Press-Fit | Through Hole | Female | 57 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | 30 Áin | 0.76 Ám |
 EDAC Inc. | 1 | Polyester Thermoplastic | 57 | 1 | -40 C | 105 ░C | Copper Alloy | Black | Gold | 0.1 " | 2.54 mm | Press-Fit | Through Hole | Female | 57 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | 30 Áin | 0.76 Ám |
 EDAC Inc. | 1 | Polyester Thermoplastic | 57 | 1 | -40 C | 105 ░C | Copper Alloy | Black | Gold | 0.1 " | 2.54 mm | Press-Fit | Through Hole | Female | 57 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | 30 Áin | 0.76 Ám |
