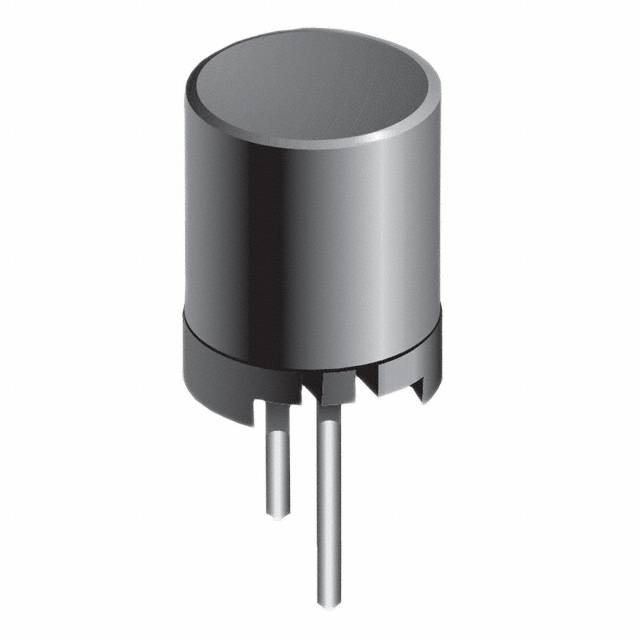

FSR1013 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 47MH 22MA 205 OHM TH
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Shielding | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Inductance | Tolerance | Package / Case | Q @ Freq | Type | Current Rating (Amps) | DC Resistance (DCR) [Max] | Size / Dimension [diameter] | Size / Dimension [diameter] | Inductance Frequency - Test | Material - Core | Frequency - Self Resonant | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | -40 C | 105 ░C | Through Hole | Shielded | 0.531 in | 13.5 mm | 47 mH | 10 % | Radial Vertical Cylinder | 30 79.6 kHz | Drum Core Wirewound | 0.022 A | 205 Ohm | 10.5 mm | 0.413 in | 1 kHz | Ferrite | 110 kHz | |
Bourns Inc. | -40 C | 105 ░C | Through Hole | Shielded | 0.531 in | 13.5 mm | 33 mH | 10 % | Radial Vertical Cylinder | 40 79.6 kHz | Drum Core Wirewound | 25 mA | 10.5 mm | 0.413 in | 1 kHz | Ferrite | 125 kHz | 115 Ohm |
