745-047 Series
Manufacturer: EDAC Inc.
Beta
⌘K

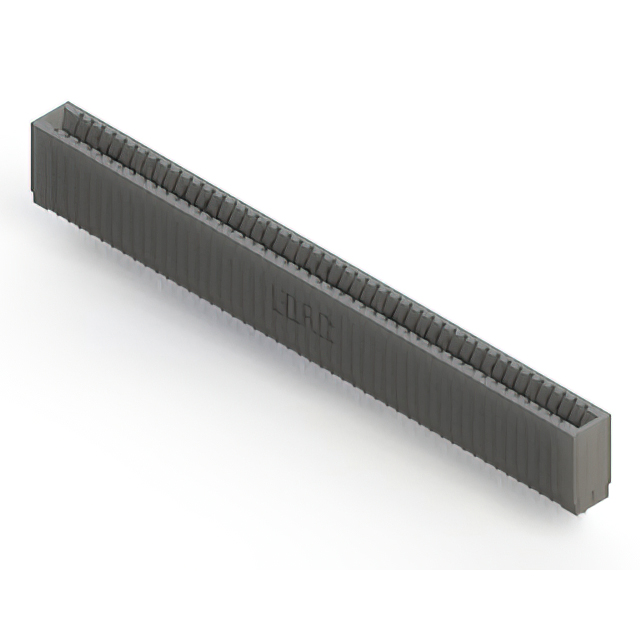

CONN EDGE SINGLE FML 47POS 0.100
| Part | Material - Insulation | Termination Rows | Card Type | Gender | Color | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Contact Finish | Read Out | Contact Material | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Termination | Number of Positions | Number of Rows | Number of Positions/Bay/Row |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Non Specified - Single Edge | Female | Black | Through Hole | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Gold | Single | Copper Alloy | Cantilever | 30 Áin | 0.76 Ám | Press-Fit | 47 | 1 | 47 |
 EDAC Inc. | Polyester Thermoplastic | 1 | Non Specified - Single Edge | Female | Black | Through Hole | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Gold | Single | Copper Alloy | Cantilever | 30 Áin | 0.76 Ám | Press-Fit | 47 | 1 | 47 |
