223R Series

Manufacturer: Serpac

Catalog

BOX ABS ALMOND 4.1"L X 2.6"W

Part	Weight [custom]	Weight [custom]	Material	Thickness	Thickness	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Container Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Features	Material Flammability Rating	Design	Color	Ratings

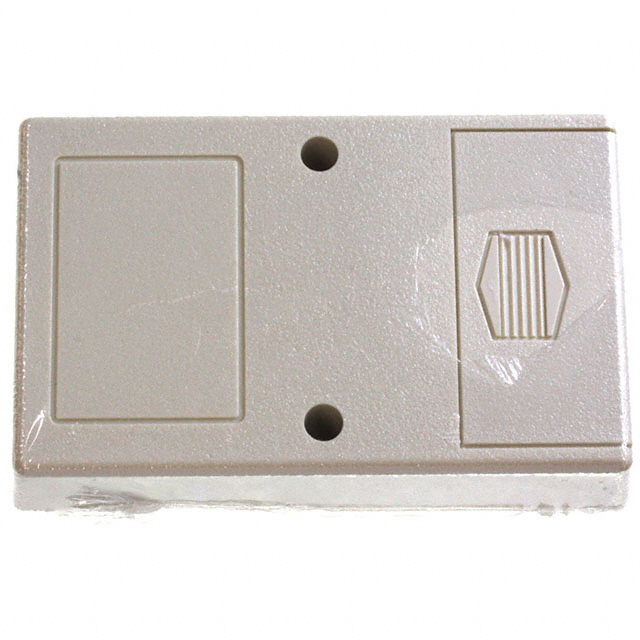

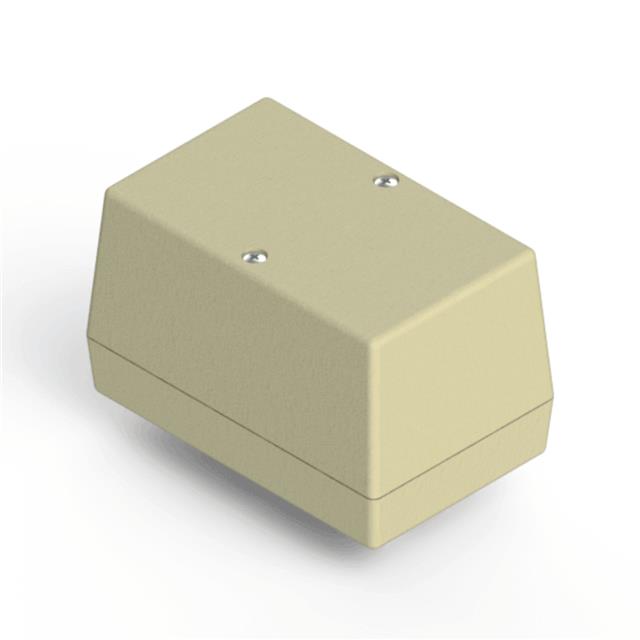

Serpac 223R,AL	0.205 lb	92.99 g	ABS Plastic	2.54 mm	0.1 in	2.5 in	63.5 mm	69 cm²	10.7 in²	Box	2.6 in	104.14 mm	4.1 "	66.04 mm	9V Battery Compartment Front Access PCB Supports	UL94 HB	Hand Held Split Sides	Almond	IP40 NEMA 1
Serpac 223RI,GY	0.205 lb	92.99 g	ABS Plastic	2.54 mm	0.1 in	2.5 in	63.5 mm	69 cm²	10.7 in²	Box	2.6 in	104.14 mm	4.1 "	66.04 mm	9V Battery Compartment Front Access PCB Supports	UL94 HB	Hand Held Split Sides	Gray	IP40 NEMA 1

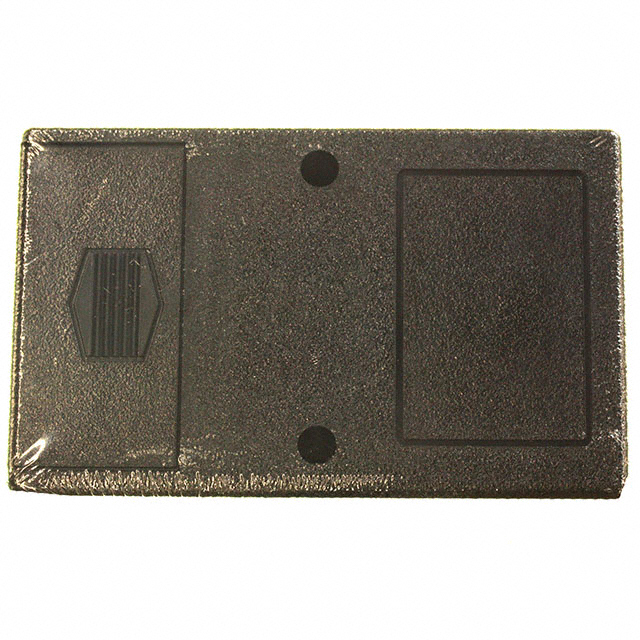

Serpac 223RI,BK	0.205 lb	92.99 g	ABS Plastic	2.54 mm	0.1 in	2.5 in	63.5 mm	69 cm²	10.7 in²	Box	2.6 in	104.14 mm	4.1 "	66.04 mm	9V Battery Compartment Front Access PCB Supports	UL94 HB	Hand Held Split Sides	Black	IP40 NEMA 1

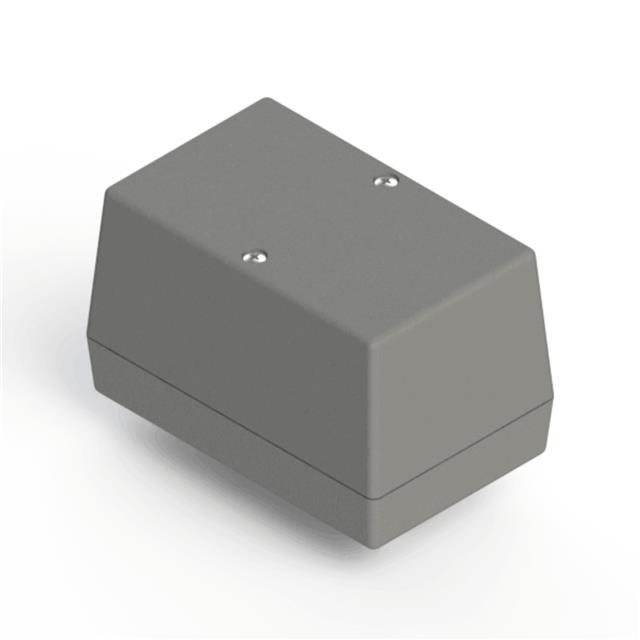

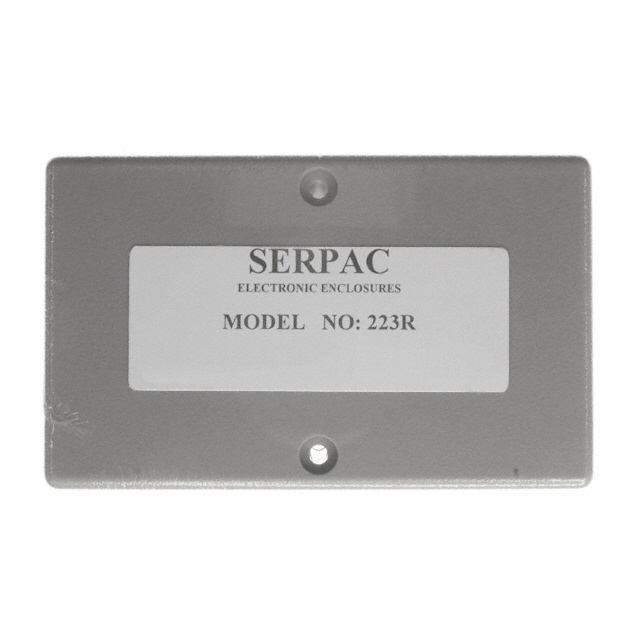

Serpac 223R,GY	0.205 lb	92.99 g	ABS Plastic	2.54 mm	0.1 in	2.5 in	63.5 mm	69 cm²	10.7 in²	Box	2.6 in	104.14 mm	4.1 "	66.04 mm	9V Battery Compartment Front Access PCB Supports	UL94 HB	Hand Held Split Sides	Gray	IP40 NEMA 1

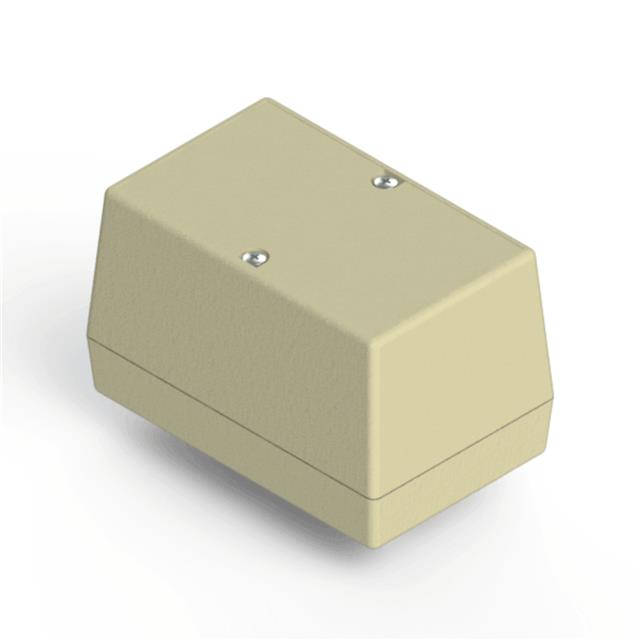

Serpac 223RI,AL	0.205 lb	92.99 g	ABS Plastic	2.54 mm	0.1 in	2.5 in	63.5 mm	69 cm²	10.7 in²	Box	2.6 in	104.14 mm	4.1 "	66.04 mm	9V Battery Compartment Front Access PCB Supports	UL94 HB	Hand Held Split Sides	Almond	IP40 NEMA 1
