APA3010 Series

Catalog

LED GREEN CLEAR SMD R/A

Part	Wavelength - Dominant	Viewing Angle	Millicandela Rating	Lens Transparency	Supplier Device Package	Lens Size [y]	Lens Size [x]	Lens Color	Current - Test	Mounting Type	Configuration	Package / Case	Lens Style	Voltage - Forward (Vf) (Typ)	Height (Max) [z]	Size / Dimension [x]	Size / Dimension [y]	Color	Wavelength - Peak	Wavelength	Operating Temperature [Max]	Operating Temperature [Min]	Radiant Intensity (Ie) Min @ If	Orientation [custom]	Current - DC Forward (If) (Max)	Type	Current - Dark (Id) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]
Kingbright APA3010MGC	570 nm	120 °	80 mcd	Clear	SMD	1 mm	2 mm	Colorless	20 mA	Right Angle Surface Mount	Standard	2-SMD No Lead	Rectangle with Domed Top	2.1 V	1 mm	3 mm	2 mm	Green

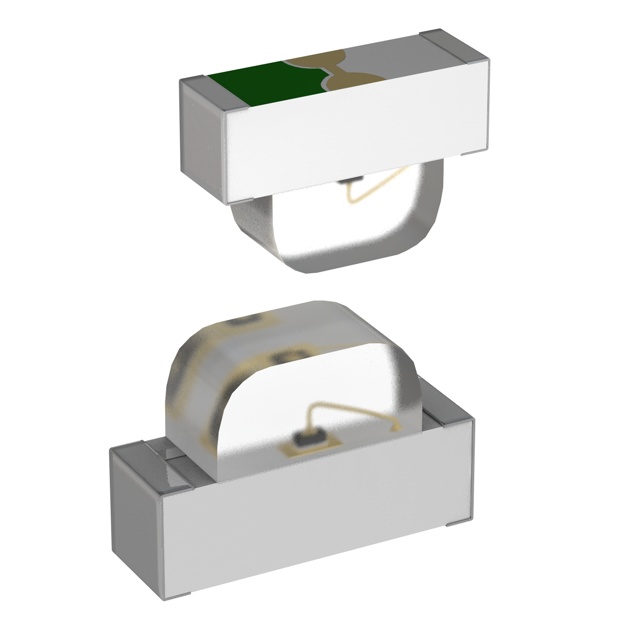

Kingbright APA3010ZGC	525 nm	120 °	250 mcd	Clear	SMD	1 mm	2 mm	Colorless	20 mA	Right Angle Surface Mount	Standard	2-SMD No Lead	Rectangle with Domed Top	3.3 V	1 mm	3 mm	2 mm	Green	515 nm
Kingbright APA3010CGCK	570 nm	120 °	60 mcd	Clear	SMD	1 mm	2 mm	Colorless	20 mA	Right Angle Surface Mount	Standard	2-SMD No Lead	Rectangle with Domed Top	2.1 V	1 mm	3 mm	2 mm	Green

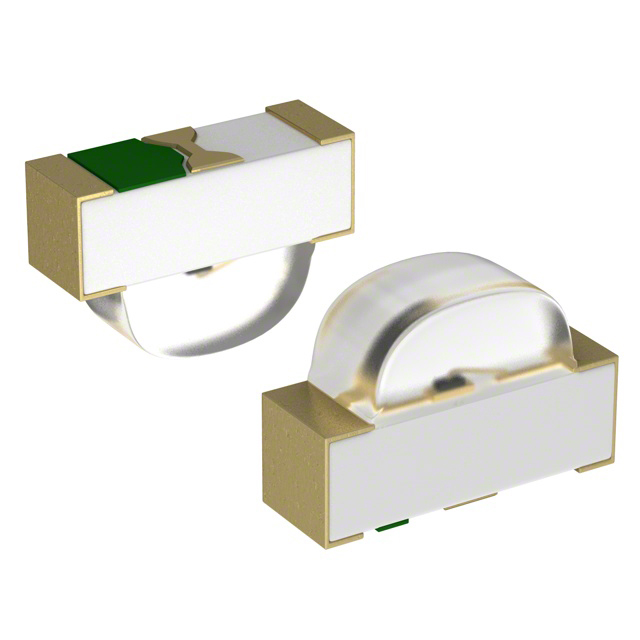

Kingbright APA3010SF4C		120 °								Right Angle Surface Mount		2-SMD No Lead		1.3 V						880 nm	85 C	-40 ¯C	0.4 mW/sr	Side View	50 mA	Infrared (IR)

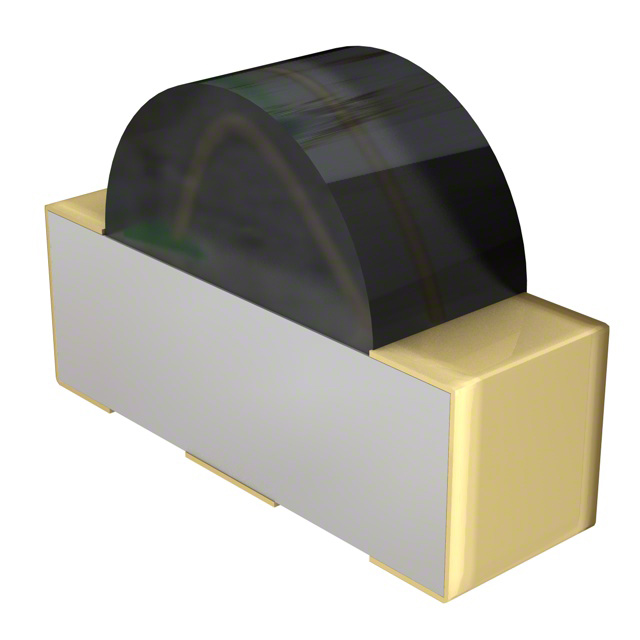

Kingbright APA3010P3BT-GX										Right Angle Surface Mount		2-SMD No Lead									85 °C	-40 C		Side View			100 nA	30 V	100 mW
Kingbright APA3010YC	588 nm	120 °	7 mcd	Clear	SMD	1 mm	2 mm	Colorless	20 mA	Right Angle Surface Mount	Standard	2-SMD No Lead	Rectangle with Domed Top	2.1 V	1 mm	3 mm	2 mm	Yellow	590 nm
Kingbright APA3010SGC	568 nm	120 °	15 mcd	Clear	SMD	1 mm	2 mm	Colorless	20 mA	Right Angle Surface Mount	Standard	2-SMD No Lead	Rectangle with Domed Top	2.2 V	1 mm	3 mm	2 mm	Green	565 nm
Kingbright APA3010YC-GX	588 nm	120 °	8 mcd	Clear	SMD	1 mm	2 mm	Colorless	20 mA	Right Angle Surface Mount	Standard	2-SMD No Lead	Rectangle with Domed Top	2.1 V	1 mm	3 mm	2 mm	Yellow	590 nm
Kingbright APA3010MGC-GX	570 nm	120 °	60 mcd	Clear	SMD	1 mm	2 mm	Colorless	20 mA	Right Angle Surface Mount	Standard	2-SMD No Lead	Rectangle with Domed Top	2.1 V	1 mm	3 mm	2 mm	Green
Kingbright APA3010SURCK-GX	630 nm	120 °	80 mcd	Clear	Chip LED	1 mm	2 mm	Colorless	20 mA	Right Angle Surface Mount	Standard	2-SMD No Lead	Rectangle with Domed Top	1.95 V	1 mm	3 mm	2 mm	Red	645 nm
