8337 Series
Manufacturer: Belden Inc.
Beta
⌘K

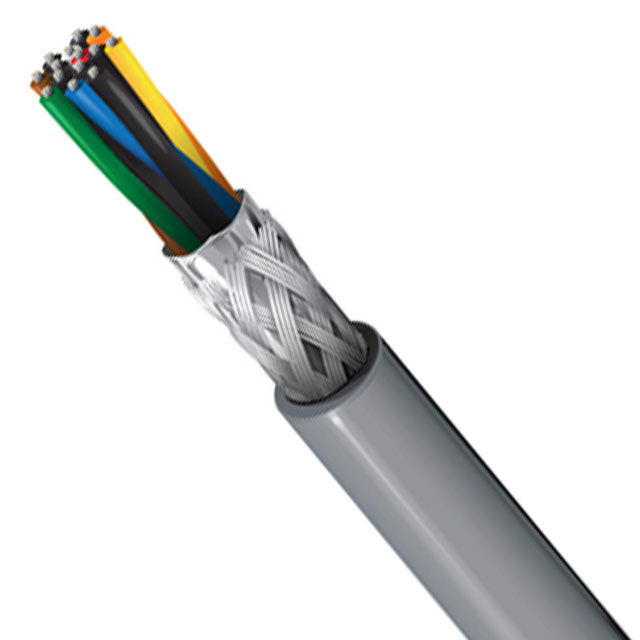

MULTI-PAIR 14COND 24AWG
| Part | Shield Coverage | Shield Material | Conductor Insulation | Usage | Ratings | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Length | Length | Conductor Material | Number of Conductors [custom] | Number of Conductors [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Cable Type | Length [x] | Length [x] | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Poly-Vinyl Chloride (PVC) | Computer | UL Style 2464 | 24 AWG | 80 °C | -30 ░C | 300 VDC | 152.4 m | 500 ft | Copper Tinned | 14 | 7 pair | 0.035 in | 0.889 mm | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | Braid Foil | 0.321 in | 8.15 mm | Chrome | Multi-Pair | |||
Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Poly-Vinyl Chloride (PVC) | Computer | UL Style 2464 | 24 AWG | 80 °C | -30 ░C | Copper Tinned | 0.035 in | 0.889 mm | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | Braid Foil | 0.321 in | 8.15 mm | Chrome | Multi-Pair | 100 ft | 30.5 m | 14 |
