RBB10 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN EDGE DUAL FMALE 20POS 0.050

Part	Material - Insulation	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions/Bay/Row	Read Out	Features	Contact Finish Thickness	Contact Finish Thickness	Card Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Mounting Type	Contact Type	Contact Finish	Card Thickness	Card Thickness	Pitch	Pitch	Number of Positions	Gender	Termination	Color	Flange Feature [custom]	Flange Feature [custom]
Sullins Connector Solutions RBB10DYRD	Polyphenylene Sulfide (PPS)	2	-65 ░C	125 °C	Phosphor Bronze	10	Dual	Card Extender	0.25 Ám	10 Áin	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "	Board Edge Straddle Mount	Cantilever	Gold	1.57 mm	0.062 in	0.05 in	1.27 mm	20	Female	Solder	Black
Sullins Connector Solutions RBB10DYHT	Polyphenylene Sulfide (PPS)	2	-65 ░C	125 °C	Phosphor Bronze	10	Dual		0.25 Ám	10 Áin	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening			Through Hole	Cantilever	Gold	1.57 mm	0.062 in	0.05 in	1.27 mm	20	Female	Solder Staggered	Black
Sullins Connector Solutions RBB10DHBD	Polyphenylene Sulfide (PPS)	2	-65 ░C	125 °C	Phosphor Bronze	10	Dual		0.25 Ám	10 Áin	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "	Right Angle Through Hole	Hairpin Bellows	Gold	1.57 mm	0.062 in	0.05 in	1.27 mm	20	Female	Solder Staggered	Black
Sullins Connector Solutions RBB10DYRQ	Polyphenylene Sulfide (PPS)	2	-65 ░C	125 °C	Phosphor Bronze	10	Dual	Card Extender	0.25 Ám	10 Áin	Non Specified - Dual Edge	Straddle Mount Opening Unthreaded			Board Edge Straddle Mount	Cantilever	Gold	1.57 mm	0.062 in	0.05 in	1.27 mm	20	Female	Solder	Black	1.98 mm	0.078 "
Sullins Connector Solutions RBB10DHFN	Polyphenylene Sulfide (PPS)	2	-65 ░C	125 °C	Phosphor Bronze	10	Dual		0.25 Ám	10 Áin	Non Specified - Dual Edge				Surface Mount	Hairpin Bellows	Gold	1.57 mm	0.062 in	0.05 in	1.27 mm	20	Female	Solder	Black
Sullins Connector Solutions RBB10DYHR	Polyphenylene Sulfide (PPS)	2	-65 ░C	125 °C	Phosphor Bronze	10	Dual	Board Lock	0.25 Ám	10 Áin	Non Specified - Dual Edge				Through Hole	Cantilever	Gold	1.57 mm	0.062 in	0.05 in	1.27 mm	20	Female	Solder Staggered	Black
Sullins Connector Solutions RBB10DHLD	Polyphenylene Sulfide (PPS)	2	-65 ░C	125 °C	Phosphor Bronze	10	Dual		0.25 Ám	10 Áin	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "	Through Hole	Hairpin Bellows	Gold	1.57 mm	0.062 in	0.05 in	1.27 mm	20	Female	Solder	Black
Sullins Connector Solutions RBB10DYFR	Polyphenylene Sulfide (PPS)	2	-65 ░C	125 °C	Phosphor Bronze	10	Dual	Board Lock	0.25 Ám	10 Áin	Non Specified - Dual Edge				Surface Mount	Cantilever	Gold	1.57 mm	0.062 in	0.05 in	1.27 mm	20	Female	Solder	Black

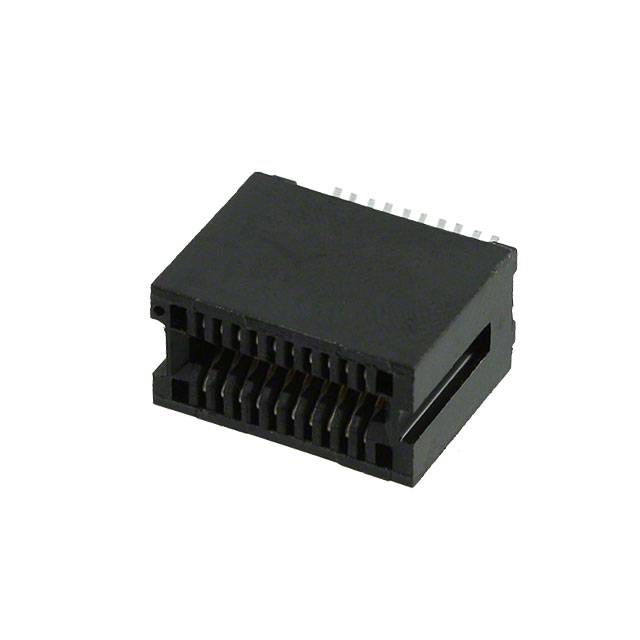

Sullins Connector Solutions RBB10DHRN	Polyphenylene Sulfide (PPS)	2	-65 ░C	125 °C	Phosphor Bronze	10	Dual	Card Extender	0.25 Ám	10 Áin	Non Specified - Dual Edge				Board Edge Straddle Mount	Hairpin Bellows	Gold	1.57 mm	0.062 in	0.05 in	1.27 mm	20	Female	Solder	Black
Sullins Connector Solutions RBB10DHAT	Polyphenylene Sulfide (PPS)	2	-65 ░C	125 °C	Phosphor Bronze	10	Dual		0.25 Ám	10 Áin	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening			Right Angle Through Hole	Hairpin Bellows	Gold	1.57 mm	0.062 in	0.05 in	1.27 mm	20	Female	Solder Staggered	Black
