PPPC331 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 33POS 0.1 GOLD PCB

Part	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Material Flammability Rating	Mounting Type	Insulation Height	Insulation Height	Number of Positions [custom]	Contact Finish Thickness - Mating	Contact Finish - Mating	Voltage Rating	Contact Type	Number of Rows	Fastening Type	Number of Positions Loaded	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Length - Post	Contact Length - Post

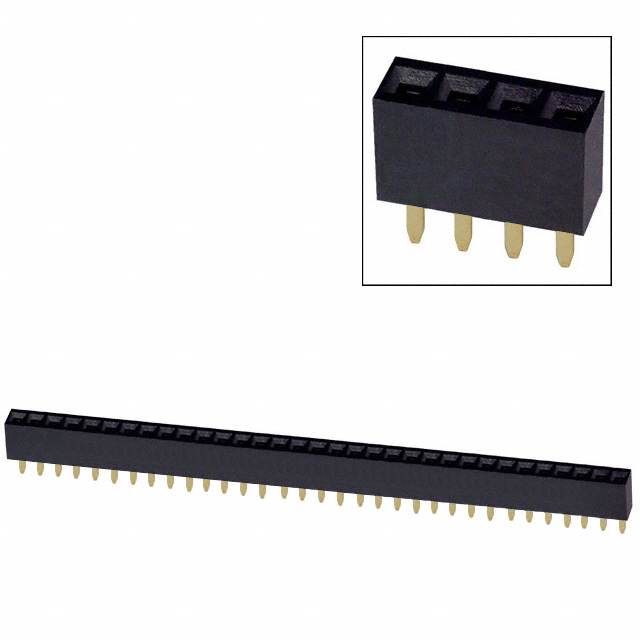

Sullins Connector Solutions PPPC331LFBN-RC	Flash	Square	Polyester	Phosphor Bronze	-40 C	105 ░C	Solder	Gold	0.126 "	3.2 mm	Header	UL94 V-0	Through Hole	0.335 "	8.51 mm	33	Flash	Gold	250 V	Female Socket	1	Push-Pull	All	3 A	0.1 "	2.54 mm	Black
Sullins Connector Solutions PPPC331LGBN-RC	Flash	Square	Polyester	Phosphor Bronze	-40 C	105 ░C	Solder	Gold			Header	UL94 V-0	Right Angle Through Hole	0.1 in	2.54 mm	33	Flash	Gold	250 V	Female Socket	1	Push-Pull	All	3 A	0.1 "	2.54 mm	Black	0.124 in	3.15 mm
Sullins Connector Solutions PPPC331LGBN	Flash	Square	Polyester	Phosphor Bronze	-40 C	105 ░C	Solder	Gold			Header	UL94 V-0	Right Angle Through Hole	0.1 in	2.54 mm	33	Flash	Gold	250 V	Female Socket	1	Push-Pull	All	3 A	0.1 "	2.54 mm	Black	0.124 in	3.15 mm
Sullins Connector Solutions PPPC331LFBN	Flash	Square	Polyester	Phosphor Bronze	-40 C	105 ░C	Solder	Gold	0.126 "	3.2 mm	Header	UL94 V-0	Through Hole	0.335 "	8.51 mm	33	Flash	Gold	250 V	Female Socket	1	Push-Pull	All	3 A	0.1 "	2.54 mm	Black
Sullins Connector Solutions PPPC331KFXC	Flash	Square	Polyester	Phosphor Bronze	-40 C	105 ░C	Solder	Gold			Header Top or Bottom Entry	UL94 V-0	Surface Mount	0.28 in	7.1 mm	33	Flash	Gold	250 V	Female Socket	1	Push-Pull	All	3 A	0.1 "	2.54 mm	Black
