9GV1424 Series

Catalog

FAN AXIAL 140X38MM 24VDC WIRE

Part	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Lifetime @ Temp.	Material - Blade	Current Rating (Amps)	Air Flow	Air Flow	Power (Watts)	Fan Type	Features	Static Pressure	Static Pressure	Width [y]	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight	Approval Agency	RPM	Bearing Type	Noise

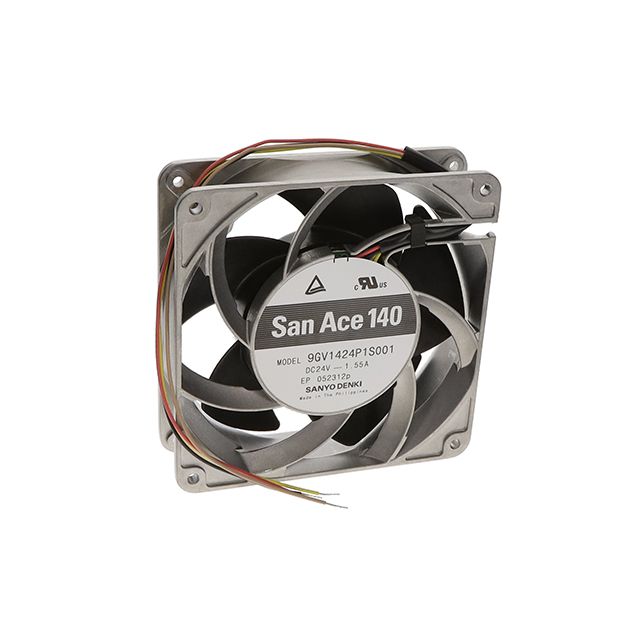

Sanyo Denki America Inc. 9GV1424P1S001	26.4 VDC	21.6 VDC	Aluminum	40000 Hrs	Plastic	1.55 A	7.62 m³/min	272 CFM	37.2 W	Tubeaxial	PWM Control Speed Sensor (Tach)	480.8 Pa	1.93 in H2O	38 mm	24 VDC	-20 ░C	70 °C	4 Wire Leads	140 mm	140 mm	635 g	1.4 lbs	CSA TUV UL	6650 RPM	Ball	67 dB
Sanyo Denki America Inc. 9GV1424P1H001	26.4 VDC	21.6 VDC	Aluminum	40000 Hrs	Plastic	0.85 A	5.94 m³/min	212 CFM	20.4 W	Tubeaxial	PWM Control Speed Sensor (Tach)	298.9 Pa	1.2 in H2O	38 mm	24 VDC	-20 ░C	70 °C	4 Wire Leads	140 mm	140 mm	635 g	1.4 lbs	CSA TUV UL	5200 RPM	Ball	62 dB(A)
Sanyo Denki America Inc. 9GV1424P1G001	26.4 VDC	21.6 VDC	Aluminum	40000 Hrs	Plastic	2.3 A	8.68 m³/min	310 CFM	55.2 W	Tubeaxial	PWM Control Speed Sensor (Tach)	640.1 Pa	2.57 in H2O	38 mm	24 VDC	-20 ░C	70 °C	4 Wire Leads	140 mm	140 mm	635 g	1.4 lbs	CSA TUV UL	7600 RPM	Ball	70 dB(A)
