M5 Series

Catalog

SENSOR CABLES / ACTUATOR CABLES M5 4 POS FEMALE STRAIGHT/BLUNT 3 MTR

Part	2nd Connector Type	Cable Material	1st Connector Type	Usage	1st Connector Mounting Type	1st Connector Number of Positions	1st Connector Orientation	1st Connector Gender	1st Connector Shell Size - Insert	Color	Shielding	Ingress Protection	Length	Length	1st Connector Number of Positions Loaded	Assembly Configuration	Cable Type	Features	Shell Finish	Material Flammability Rating	Contact Material	Fastening Type	Contact Finish Thickness - Mating	Mounting Type	Contact Finish - Mating	Orientation	Voltage Rating	Connector Type	Shell Material	Primary Material	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Insert Material	Mounting Feature	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	2nd Connector Number of Positions	2nd Connector Mounting Type	2nd Connector Gender	2nd Connector Number of Positions Loaded	2nd Connector Shell Size - Insert
NorComp Inc. CCA-000-M03R203	Wire Leads	Polyvinyl Chloride (PVC)	Plug	Industrial Environments	Free Hanging (In-Line)	4	Keyed	Female Sockets	M5	Black	Shielded	IP67 - Dust Tight Waterproof	3 m	9.84 ft	All	Standard	Round

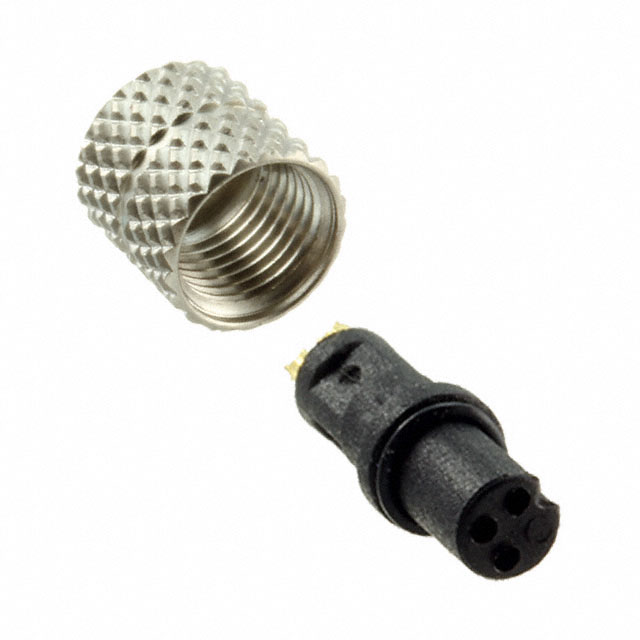

NorComp Inc. 850-003-203RLU1										Silver	Unshielded	IP67 - Dust Tight Waterproof						Coupling Nut	Nickel	UL94 V-0	Phosphor Bronze	Threaded	Flash	Free Hanging (In-Line)	Gold	Keyed	60 VDC	Plug Female Sockets	Brass	Metal	M5-3	85 °C	-40 C	Industrial Medical	Thermoplastic Polyurethane (TPU)

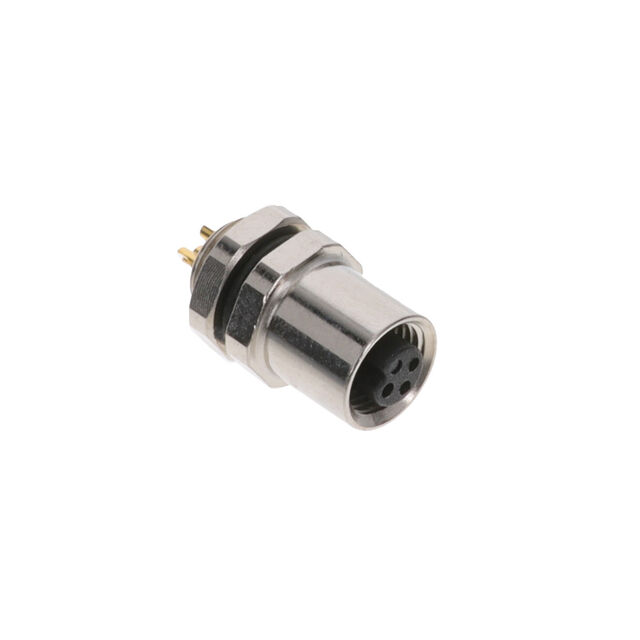

NorComp Inc. 851-003-203R004										Silver	Shielded	IP67 - Dust Tight Waterproof							Nickel	UL94 V-0	Brass	Threaded		Panel Mount	Gold	Keyed	60 VDC	Plug Female Sockets	Brass	Metal	M5-3	85 °C	-40 C	Industrial Medical	Polybutylene Terephthalate (PBT)	Bulkhead - Rear Side Nut	0.25 µm	10 µin

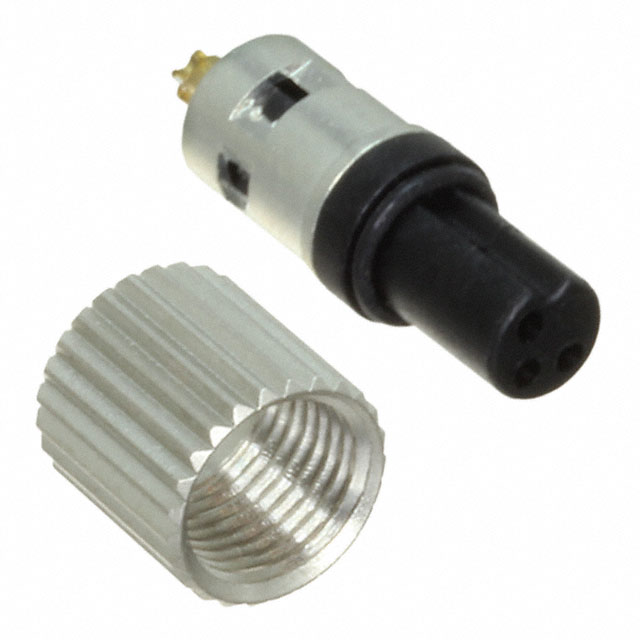

NorComp Inc. 850-003-203RSS4										Silver	Shielded	IP67 - Dust Tight Waterproof						Coupling Nut	Tin	UL94 V-0	Phosphor Bronze	Threaded		Free Hanging (In-Line)	Gold	Keyed	60 VDC	Plug Female Sockets	Brass	Metal	M5-3	85 °C	-40 C	Industrial Medical	Thermoplastic Polyurethane (TPU)		0.25 µm	10 µin
NorComp Inc. CCA-000-M03R234	Plug	Polyvinyl Chloride (PVC)	Plug	Industrial Environments	Free Hanging (In-Line)	3	Keyed	Female Sockets	M5	Black	Shielded	IP67 - Dust Tight Waterproof	3 m	9.84 ft	All	Standard	Round																						3	Free Hanging (In-Line)	Female Sockets	All	M5
NorComp Inc. CCA-000-M01R187	Wire Leads	Polyvinyl Chloride (PVC)	Receptacle	Industrial Environments	Free Hanging (In-Line)	4	Keyed	Male Pins	M5	Black	Shielded	IP67 - Dust Tight Waterproof	1 m	3.28 ft	All	Standard	Round
NorComp Inc. CCA-000-M03R186	Receptacle	Polyvinyl Chloride (PVC)	Receptacle	Industrial Environments	Free Hanging (In-Line)	4	Keyed	Male Pins	M5	Black	Shielded	IP67 - Dust Tight Waterproof	3 m	9.84 ft	All	Standard	Round																						4	Free Hanging (In-Line)	Male Pins	All	M5
