LP5813 Series

Synchronous boost 4 x 3 matrix RGB LED driver with I2C and auto animation control

Catalog

Synchronous boost 4 x 3 matrix RGB LED driver with I2C and auto animation control

Part	Dimming	Current - Output / Channel	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Number of Outputs	Supplier Device Package	Voltage - Output [Max]	Voltage - Output [Min]	Voltage - Supply (Max)	Type	Mounting Type	Applications	Package / Case	Voltage - Supply (Min) [Min]	Topology	Supplier Device Package [x]	Supplier Device Package [y]
Texas Instruments LP5813CDRRR	Analog PWM	50 mA	85 °C	-40 °C	1 MHz 500 kHz	1	12-WSON (3x3)	5.5 V	3 V	5.5 V	DC DC Regulator	Surface Mount	General Purpose	12-WFDFN Exposed Pad	500 mV	Step-Up (Boost)

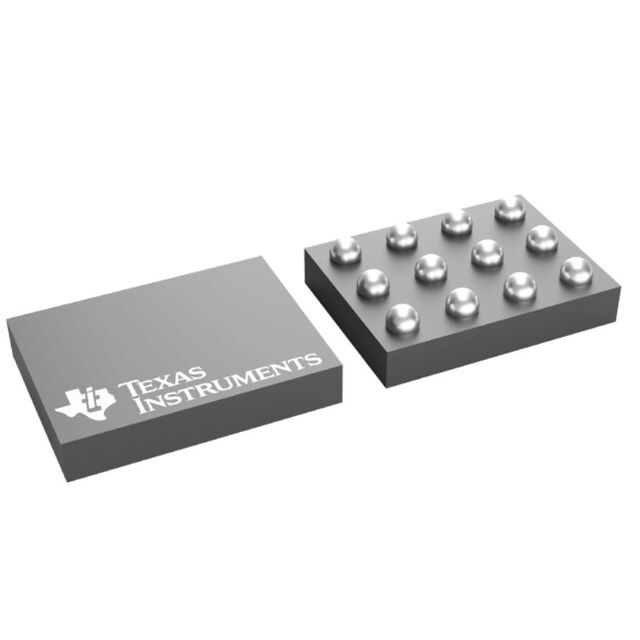

Texas Instruments LP5813AYBHR	Analog PWM	1.6 A	85 °C	-40 °C	1 MHz 500 kHz	1	12-DSBGA	5.5 V	3 V	5.5 V	DC DC Regulator	Surface Mount	General Purpose	12-BGA DSBGA	500 mV	Step-Up (Boost)	1.84	1.43
Texas Instruments LP5813BDRRR	Analog PWM	50 mA	85 °C	-40 °C	1 MHz 500 kHz	1	12-WSON (3x3)	5.5 V	3 V	5.5 V	DC DC Regulator	Surface Mount	General Purpose	12-WFDFN Exposed Pad	500 mV	Step-Up (Boost)

Catalog

Synchronous boost 4 x 3 matrix RGB LED driver with I2C and auto animation control

Key Features

• Operating voltage range:Input voltage (VIN) range: 0.5V to 5.5V1.8V minimum input voltage for start-upLogic pins compatible with 1.8V, 3.3V, and 5VHigh efficiency synchronous boost converterOutput voltage (VOUT) range: 3V to 5.5V140mΩ (HS) / 60mΩ (LS) MOSFETs1.6A valley switching current limit95% efficiency at VIN = 4.2V, VOUT = 5.0V, IOUT = 300mAPass-through mode when VIN > VOUT settingTrue disconnection between input and output during shutdownTime-cross-multiplexing (TCM) topology:Drives up to 12 LEDs or 4 RGB LEDs¼, ⅓, ½, 1 multiplexing ratioSupports direct, TCM, and mix-drive modes4 constant current sinks with high precision:0.1mA to 51mA per current sinkDevice-to-device error: max ±5%Channel-to-channel error: max ±5%Ultra-low headroom voltage: 110mV (typ.) at 25.5mA; 210mV (typ.) at 51mAPWM phase shift configurable for each LEDUltra-low power consumption:Shutdown: ISD = 0.1µA (typical) when EN = LowStandby: ISTB = 26µA (typical) when EN = High and CHIP_EN = 0 (data retained)Active: INOR = 0.45mA (typical) when LED current = 25.5mAAnalog dimming (current gain control)Global 1-bit Maximum Current (MC): 25.5mA or 51mAIndividual 8-bit Dot Current (DC) settingPWM dimming up to audible-noise-free 24kHzIndividual 8-bit PWM dimming resolutionLinear or exponential dimming curvesAutonomous animation engine controlIndividual LED dot open/short detectionIntegrated de-ghosting function1MHz (max.) I2C interface–40°C to 85°C operating temperature rangeOperating voltage range:Input voltage (VIN) range: 0.5V to 5.5V1.8V minimum input voltage for start-upLogic pins compatible with 1.8V, 3.3V, and 5VHigh efficiency synchronous boost converterOutput voltage (VOUT) range: 3V to 5.5V140mΩ (HS) / 60mΩ (LS) MOSFETs1.6A valley switching current limit95% efficiency at VIN = 4.2V, VOUT = 5.0V, IOUT = 300mAPass-through mode when VIN > VOUT settingTrue disconnection between input and output during shutdownTime-cross-multiplexing (TCM) topology:Drives up to 12 LEDs or 4 RGB LEDs¼, ⅓, ½, 1 multiplexing ratioSupports direct, TCM, and mix-drive modes4 constant current sinks with high precision:0.1mA to 51mA per current sinkDevice-to-device error: max ±5%Channel-to-channel error: max ±5%Ultra-low headroom voltage: 110mV (typ.) at 25.5mA; 210mV (typ.) at 51mAPWM phase shift configurable for each LEDUltra-low power consumption:Shutdown: ISD = 0.1µA (typical) when EN = LowStandby: ISTB = 26µA (typical) when EN = High and CHIP_EN = 0 (data retained)Active: INOR = 0.45mA (typical) when LED current = 25.5mAAnalog dimming (current gain control)Global 1-bit Maximum Current (MC): 25.5mA or 51mAIndividual 8-bit Dot Current (DC) settingPWM dimming up to audible-noise-free 24kHzIndividual 8-bit PWM dimming resolutionLinear or exponential dimming curvesAutonomous animation engine controlIndividual LED dot open/short detectionIntegrated de-ghosting function1MHz (max.) I2C interface–40°C to 85°C operating temperature range

Description

The LP5813 is a synchronous boost 4 × 3 matrix RGB LED driver with autonomous animation engine control. The device is ideal to support battery-powered applications with 0.5V to 5.5V input voltage range, and it has ultra-low normal operation current with 0.4mA (typical) when illuminate LEDs. The integrated synchronous boost converter maintains excellent efficiency and keeps the brightness of LEDs stable over a wide operating voltage range. Output voltage can be selected for different LED forward voltage from 3V to 5.5V with 0.1V step. The boost converter can power not only the LEDs driven by the device itself, but also other loads in the system. If the boost converter need to be bypassed, VOUT is used as the power supply input for the LED driver blocks. The time-cross-multiplexing (TCM) structure is adopted, which uses 4 output pins to control 12 LED dots individually. Both high-side scan switch and low-side current sink are contained in one output. The total solution size are minimized for space limited system. The autonomous animation engine can significantly reduce the real-time loading of controller. Each LED can be configured through the related registers to realize vivid and fancy lighting effects. The device can generate 6MHz clock signal and use it for synchronizing the lighting effects among multiple devices. The LP5813 is a synchronous boost 4 × 3 matrix RGB LED driver with autonomous animation engine control. The device is ideal to support battery-powered applications with 0.5V to 5.5V input voltage range, and it has ultra-low normal operation current with 0.4mA (typical) when illuminate LEDs. The integrated synchronous boost converter maintains excellent efficiency and keeps the brightness of LEDs stable over a wide operating voltage range. Output voltage can be selected for different LED forward voltage from 3V to 5.5V with 0.1V step. The boost converter can power not only the LEDs driven by the device itself, but also other loads in the system. If the boost converter need to be bypassed, VOUT is used as the power supply input for the LED driver blocks. The time-cross-multiplexing (TCM) structure is adopted, which uses 4 output pins to control 12 LED dots individually. Both high-side scan switch and low-side current sink are contained in one output. The total solution size are minimized for space limited system. The autonomous animation engine can significantly reduce the real-time loading of controller. Each LED can be configured through the related registers to realize vivid and fancy lighting effects. The device can generate 6MHz clock signal and use it for synchronizing the lighting effects among multiple devices.
