KN01L Series

Catalog

CONN PIN INSULATOR BLOCK 50 POSI

Part	Housing Material	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Connector Type	Size	Number of Positions	Voltage Rating	Color	Contact Finish	Contact Material	Current Rating (Amps)

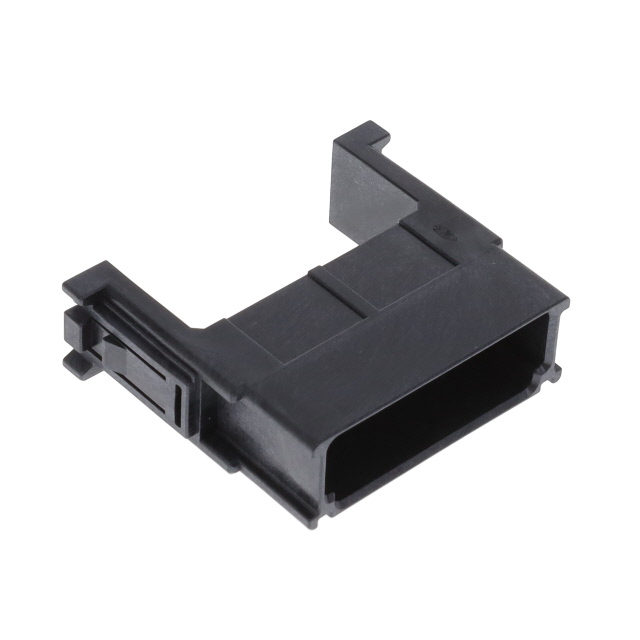

JAE Electronics KN01L50PL	Resin	Crimp	-20 ░C	105 ░C	Male	Insert without Contacts	L	50	24 VDC

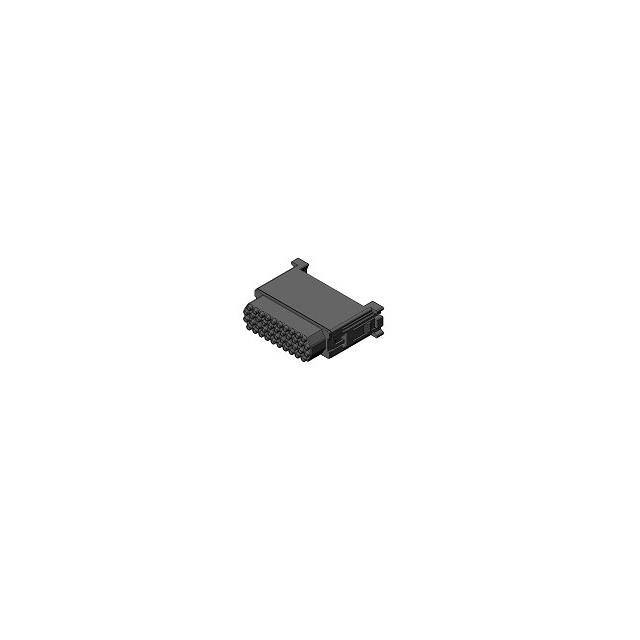

JAE Electronics KN01L42SM	Resin	Crimp	-20 ░C	105 ░C	Female	Insert without Contacts	L	42	24 VDC	Black	Gold	Copper Alloy
JAE Electronics KN01L12PG-B	Resin	Crimp	-20 ░C	105 ░C	Male	Insert without Contacts	L	12	250 V	Black	Gold	Copper Alloy	23 A

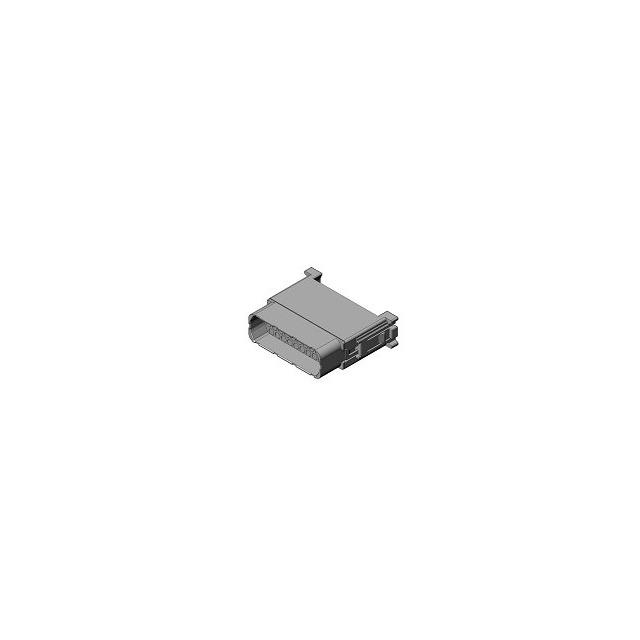

JAE Electronics KN01L42PM	Resin	Crimp	-20 ░C	105 ░C	Male	Insert without Contacts	L	42	24 VDC	Black	Gold	Copper Alloy

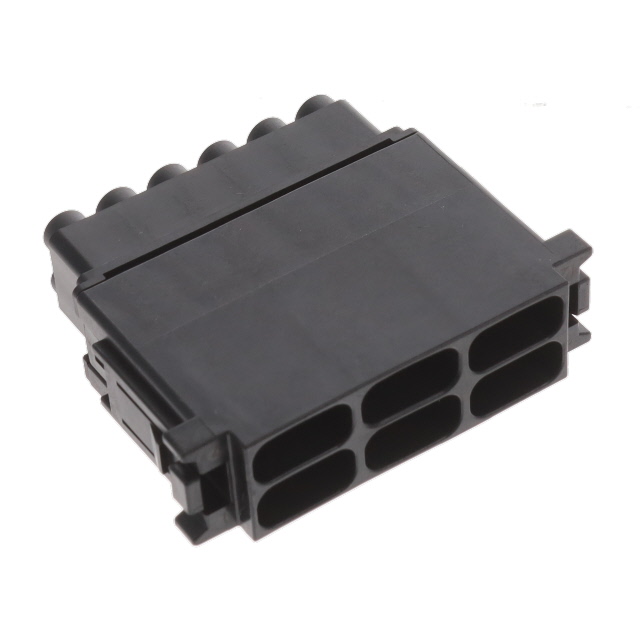

JAE Electronics KN01L12SGW	Resin	Crimp	-20 ░C	105 ░C	Female	Insert without Contacts	L	12	250 V				23 A

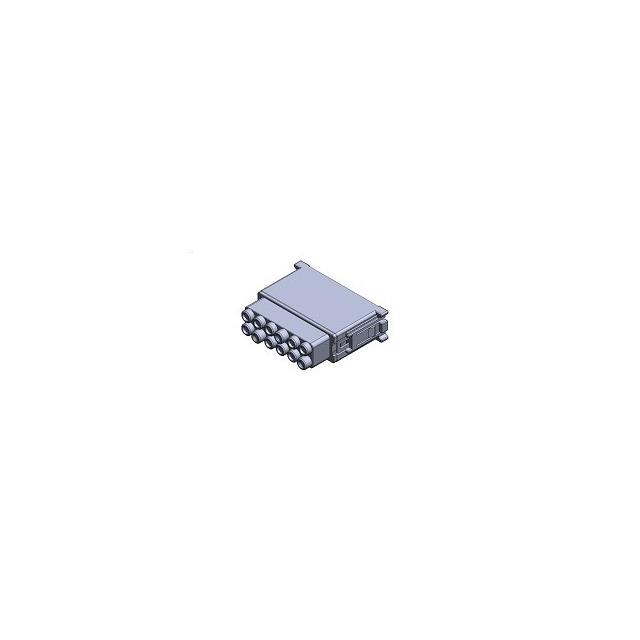

JAE Electronics KN01L12SG-B	Resin	Crimp	-20 ░C	105 ░C	Female	Insert without Contacts	L	12	250 V	Gray	Gold	Copper Alloy	23 A

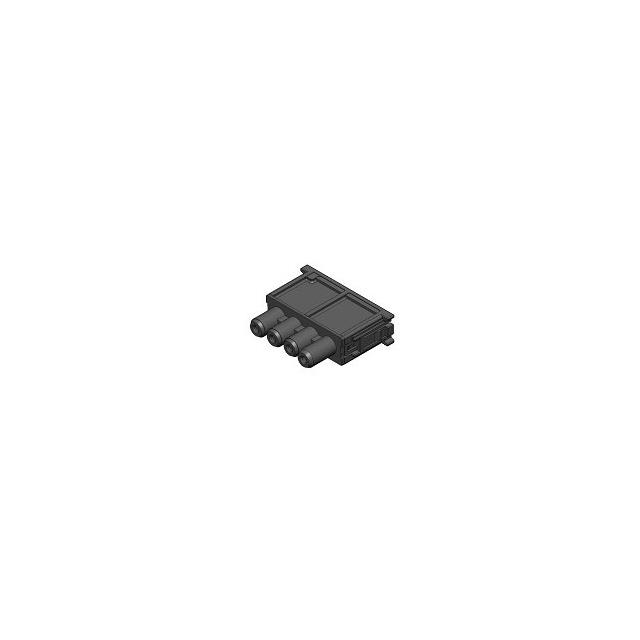

JAE Electronics KN01L04SF	Resin	Crimp	-20 ░C	105 ░C	Female	Insert without Contacts	L	4		Gray	Gold	Copper Alloy

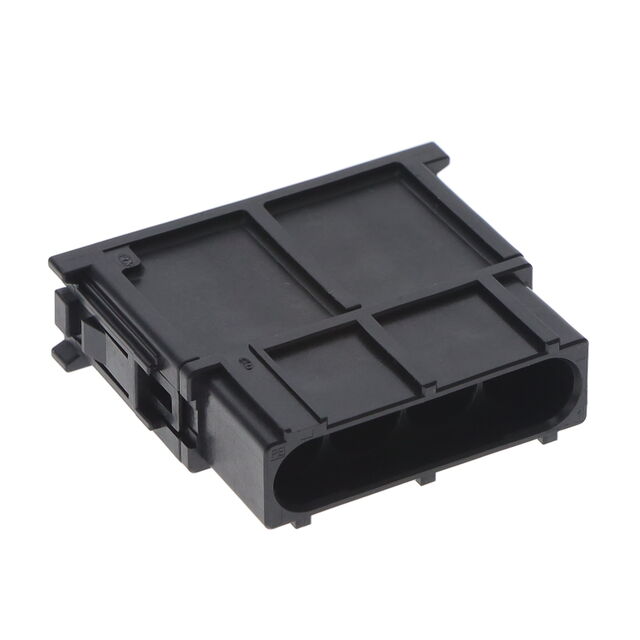

JAE Electronics KN01L04PF	Resin	Crimp	-20 ░C	105 ░C	Male	Insert without Contacts	L	4			Gold	Copper Alloy

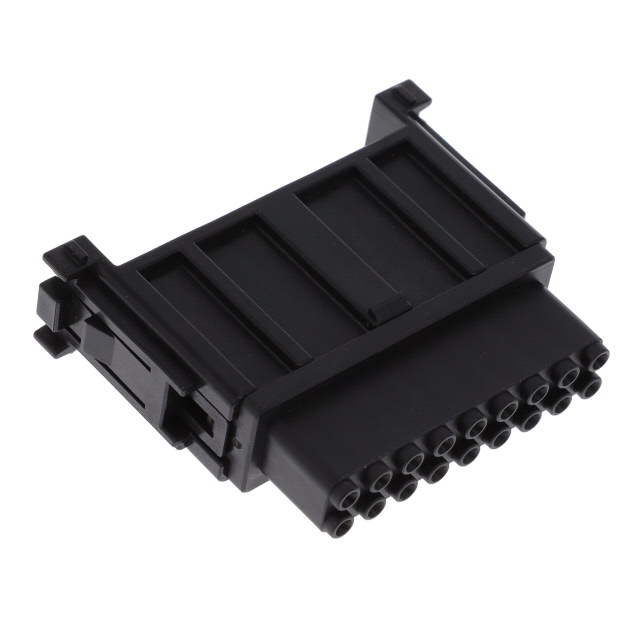

JAE Electronics KN01L18SKS	Resin	Crimp	-20 ░C	105 ░C	Female	Insert without Contacts	L	18	24 VDC				3 A
