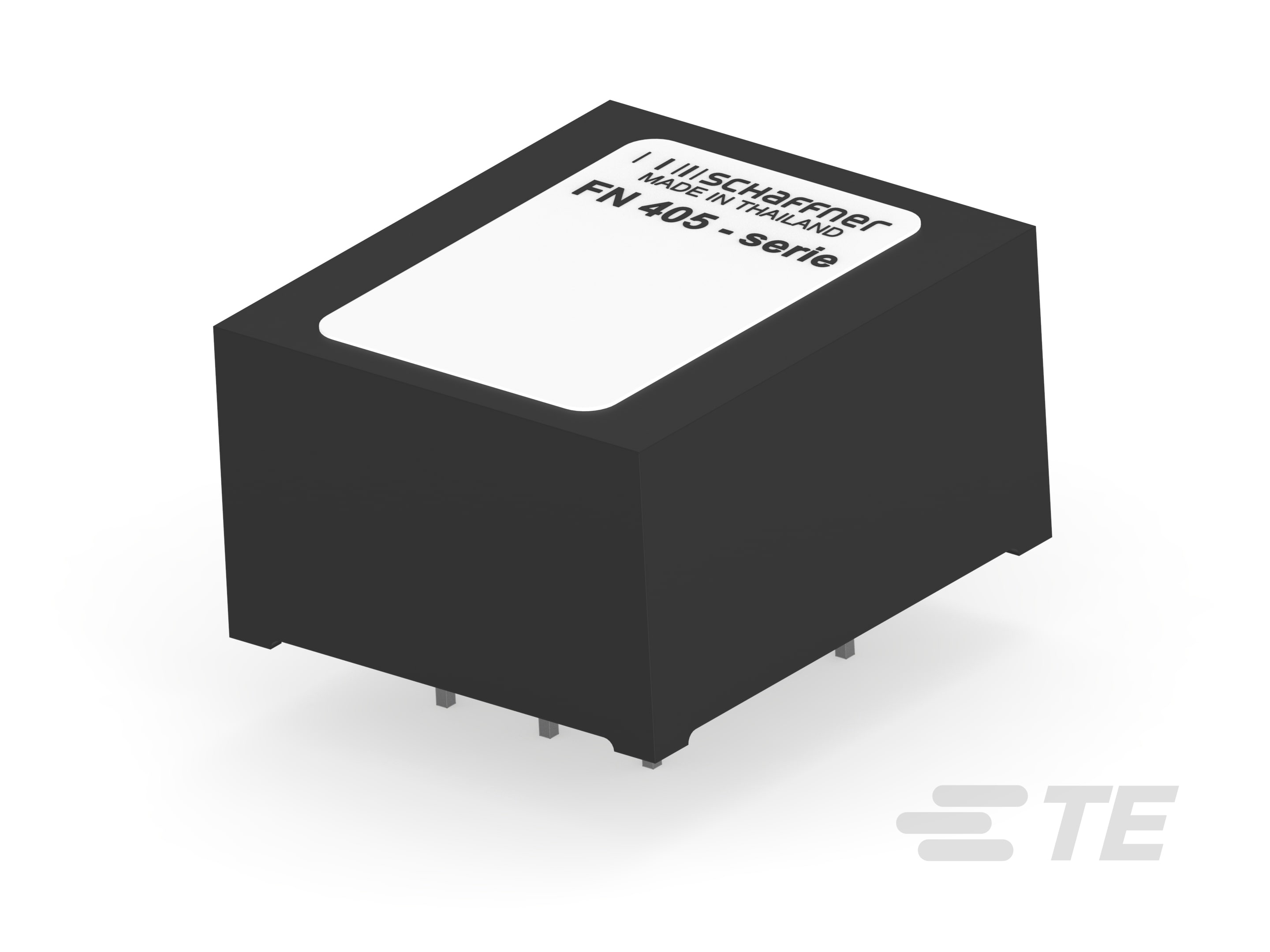

Schaffner FN405 Series

Catalog

LINE FILTER 250VAC 3A TH

Part	Inductance	Frequency - Operating	Termination Style	Current	Approval Agency	Filter Type	Configuration	Applications	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated AC
TE Connectivity AMP Connectors FN405-3-02	2 mH	DC ~ 400Hz	PC Pins	3 A	CSA ENEC UR	Single Phase	Single Stage	General Purpose	Through Hole	100 °C	-25 °C	250 V

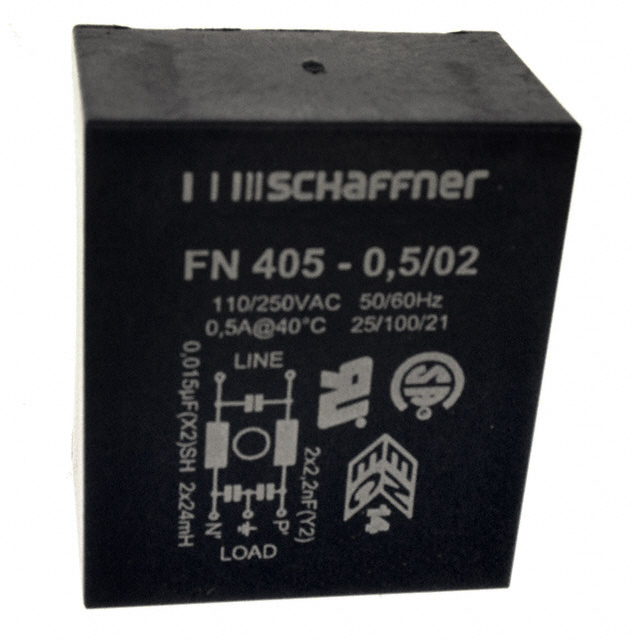

TE Connectivity AMP Connectors FN405-0.5-02	24 mH	DC ~ 400Hz	PC Pins	500 mA	CSA ENEC UR	Single Phase	Single Stage	General Purpose	Through Hole	100 °C	-25 °C	250 V
TE Connectivity AMP Connectors FN405-6-02	800 µH	DC ~ 400Hz	PC Pins	6 A	CSA ENEC UR	Single Phase	Single Stage	General Purpose	Through Hole	100 °C	-25 °C	250 V
TE Connectivity AMP Connectors FN405-1-02	10 mH	DC ~ 400Hz	PC Pins	1 A	CSA ENEC UR	Single Phase	Single Stage	General Purpose	Through Hole	100 °C	-25 °C	250 V
TE Connectivity AMP Connectors FN405-3-02	2 mH	DC ~ 400Hz	PC Pins	3 A	CSA ENEC UR	Single Phase	Single Stage	General Purpose	Through Hole	100 °C	-25 °C	250 V

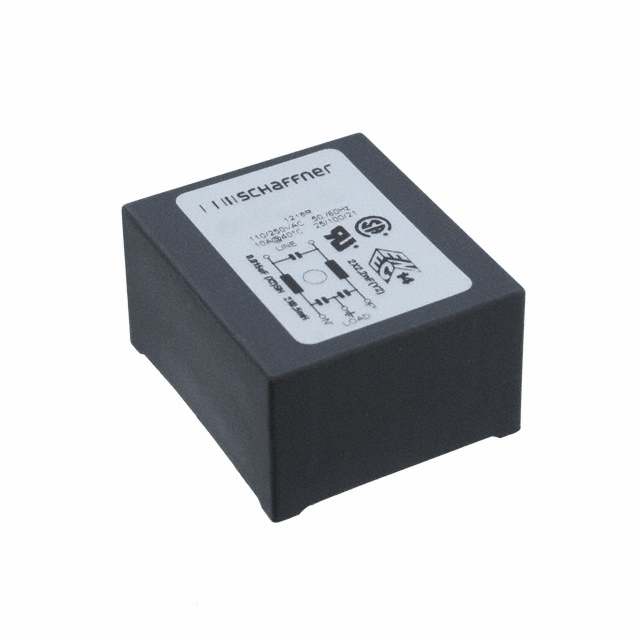

TE Connectivity AMP Connectors FN405-10-02	500 µH	DC ~ 400Hz	PC Pins	10 A	CSA ENEC UR	Single Phase	Single Stage	General Purpose	Through Hole	100 °C	-25 °C	250 V
TE Connectivity AMP Connectors FN405-10-02	500 µH	DC ~ 400Hz	PC Pins	10 A	CSA ENEC UR	Single Phase	Single Stage	General Purpose	Through Hole	100 °C	-25 °C	250 V
TE Connectivity AMP Connectors FN405-0.5-02	24 mH	DC ~ 400Hz	PC Pins	500 mA	CSA ENEC UR	Single Phase	Single Stage	General Purpose	Through Hole	100 °C	-25 °C	250 V
