ADC101S051-Q1 Series

Automotive 10-bit 500-kSPS 1-channel SAR ADC with SPI

Catalog

Automotive 10-bit 500-kSPS 1-channel SAR ADC with SPI

Part	Package / Case	Number of Bits [custom]	Data Interface	Configuration	Supplier Device Package	Mounting Type	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Architecture	Number of Inputs	Input Type	Reference Type	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Number of A/D Converters	Ratio - S/H:ADC	Sampling Rate (Per Second)	Qualification	Grade

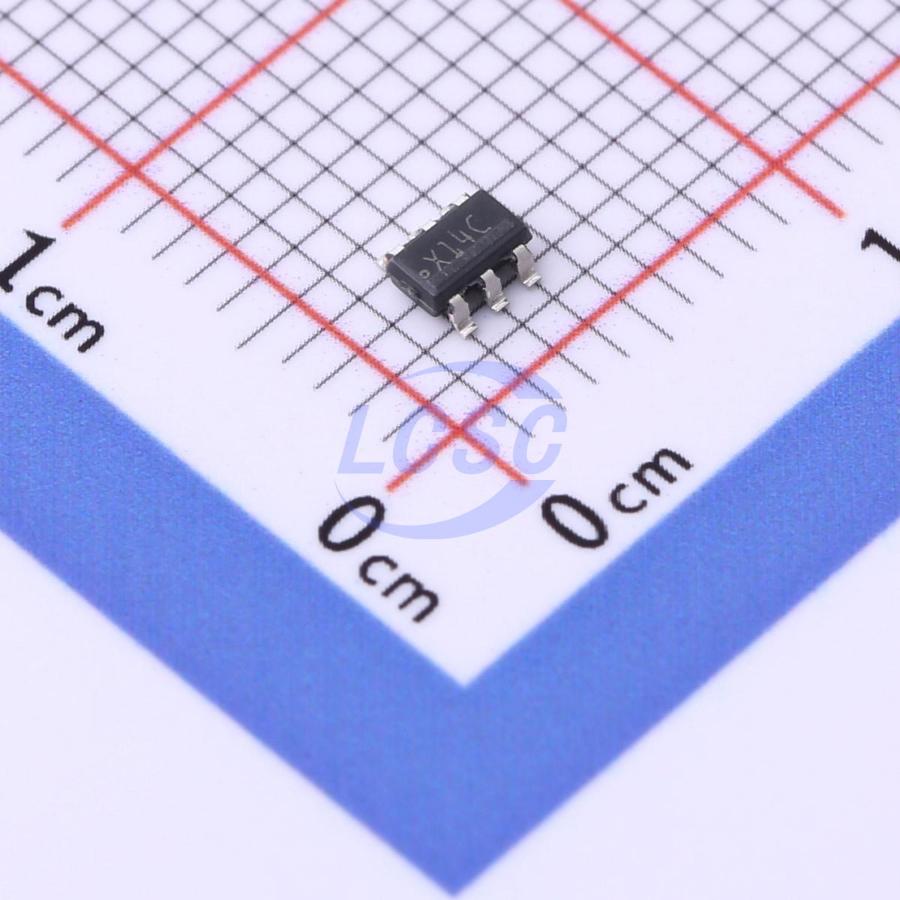

Texas Instruments ADC101S051CIMF/NOPB	SOT-23-6	10	DSP SPI	S/H-ADC	SOT-23-6	Surface Mount	2.7 V	5.25 V	SAR	1	Single Ended	Supply	5.25 V	2.7 V	85 °C	-40 °C	1	1:1	500k
Texas Instruments ADC101S051CIMFX/NOPB	SOT-23-6	10	DSP SPI	S/H-ADC	SOT-23-6	Surface Mount	2.7 V	5.25 V	SAR	1	Single Ended	Supply	5.25 V	2.7 V	85 °C	-40 °C	1	1:1	500k
Texas Instruments ADC101S051QIMF/NOPB	SOT-23-6	10	DSP SPI	S/H-ADC	SOT-23-6	Surface Mount	2.7 V	5.25 V	SAR	1	Single Ended	Supply	5.25 V	2.7 V	125 °C	-40 °C	1	1:1	500k	AEC-Q100	Automotive

Catalog

Automotive 10-bit 500-kSPS 1-channel SAR ADC with SPI

Key Features

• Specified Over a Range of Sample Rates.6-lead WSON and SOT-23 PackagesVariable Power ManagementSingle Power Supply with 2.7V – 5.25V RangeSPI™/QSPI™/MICROWIRE/DSP CompatibleAECQ100 Grade 1 QualifiedSpecified Over a Range of Sample Rates.6-lead WSON and SOT-23 PackagesVariable Power ManagementSingle Power Supply with 2.7V – 5.25V RangeSPI™/QSPI™/MICROWIRE/DSP CompatibleAECQ100 Grade 1 Qualified

Description

The ADC101S051 is a low-power, single channel CMOS 10-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC101S051 is fully specified over a sample rate range of 200 ksps to 500 ksps. The converter is based upon a successive-approximation register architecture with an internal track-and-hold circuit. The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE, and many common DSP serial interfaces. The ADC101S051 operates with a single supply that can range from +2.7V to +5.25V. Normal power consumption using a +3.6V or +5.25V supply is 2.7 mW and 9.7 mW, respectively. The power-down feature reduces the power consumption to as low as 2.6 µW using a +5.25V supply. The ADC101S051 is packaged in 6-lead WSON and SOT-23 packages. Operation is specified over the temperature range of −40°C to +85°C for the ADC101S051 and −40°C to +125°C for the ADC101S051Q. The ADC101S051 is a low-power, single channel CMOS 10-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC101S051 is fully specified over a sample rate range of 200 ksps to 500 ksps. The converter is based upon a successive-approximation register architecture with an internal track-and-hold circuit. The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE, and many common DSP serial interfaces. The ADC101S051 operates with a single supply that can range from +2.7V to +5.25V. Normal power consumption using a +3.6V or +5.25V supply is 2.7 mW and 9.7 mW, respectively. The power-down feature reduces the power consumption to as low as 2.6 µW using a +5.25V supply. The ADC101S051 is packaged in 6-lead WSON and SOT-23 packages. Operation is specified over the temperature range of −40°C to +85°C for the ADC101S051 and −40°C to +125°C for the ADC101S051Q.
