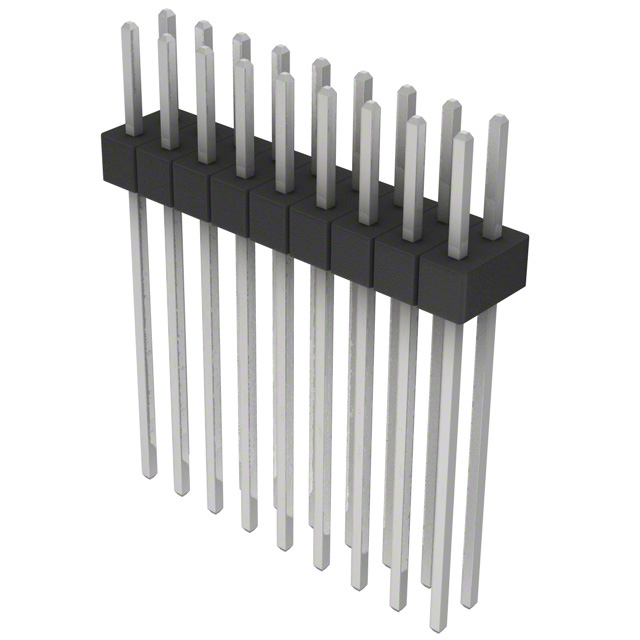

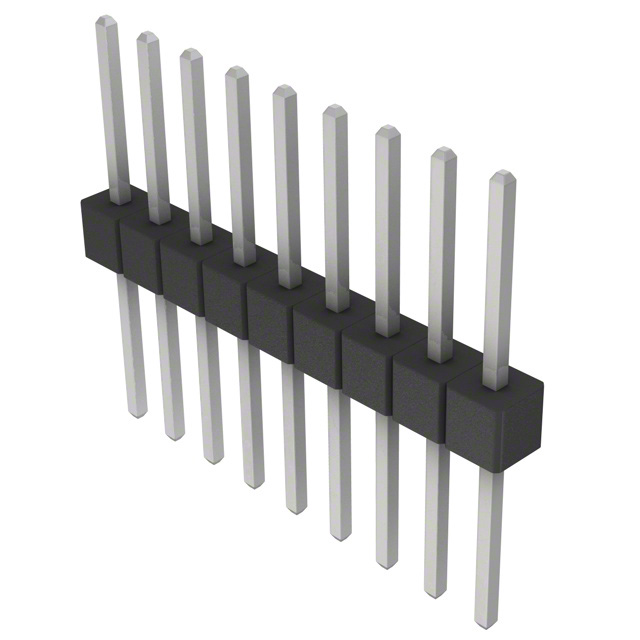

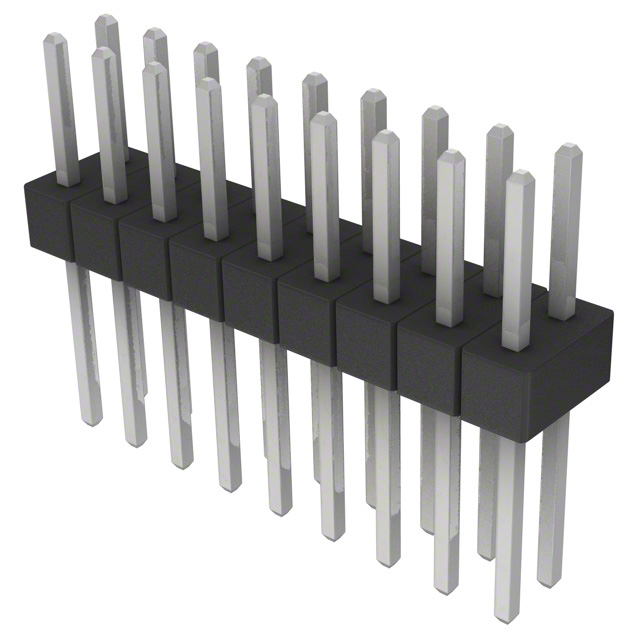

PEC09 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 9POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Contact Length - Mating	Contact Length - Mating	Connector Type	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Material	Contact Length - Post	Contact Length - Post	Shrouding	Insulation Height	Insulation Height	Insulation Material	Contact Type	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Finish - Post	Material Flammability Rating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Insulation Color	Mounting Type	Number of Positions	Current Rating (Amps)	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Post [custom]	Contact Length - Post [custom]	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]

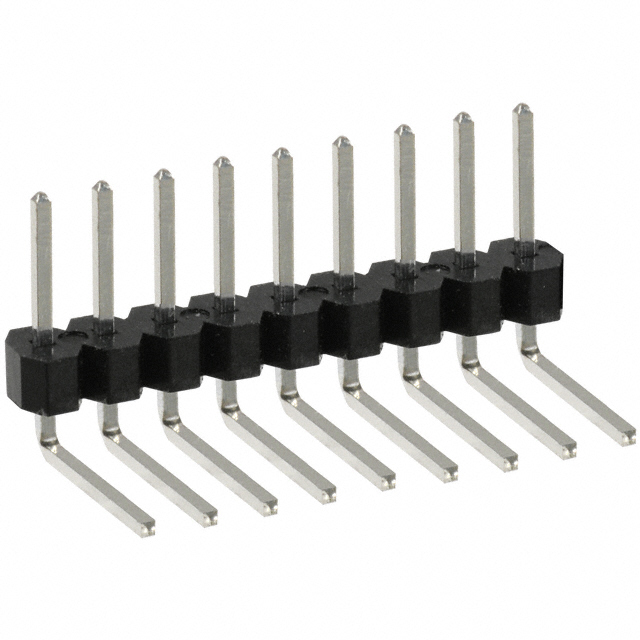

Sullins Connector Solutions PEC09SBCN	2.54 µm	100 µin	Solder	0.23 in	5.84 mm	Header Breakaway	0.1 "	2.54 mm	Square	Phosphor Bronze	0.3 in	7.62 mm	Unshrouded	3.56 mm	0.14 in	Polybutylene Terephthalate (PBT)	Male Pin	Board to Board Cable	100 çin	2.54 çm	1	Tin	UL94 V-0	Push-Pull	-65 ░C	125 °C	All	Black	Right Angle Through Hole	9	3 A

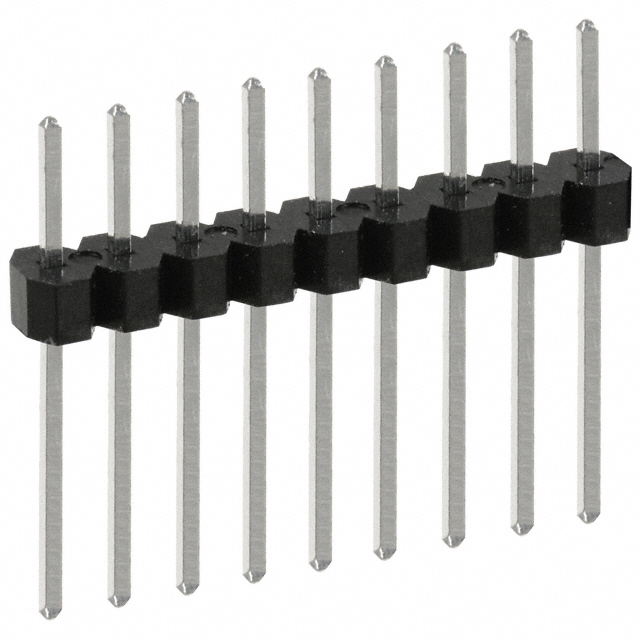

Sullins Connector Solutions PEC09SADN	2.54 µm	100 µin	Solder	0.23 in	5.84 mm	Header Breakaway	0.1 "	2.54 mm	Square	Phosphor Bronze	0.42 in	10.67 mm	Unshrouded	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	Male Pin	Board to Board Cable	100 çin	2.54 çm	1	Tin	UL94 V-0	Push-Pull	-65 ░C	125 °C	All	Black	Through Hole	9	3 A	19.05 mm	0.75 in

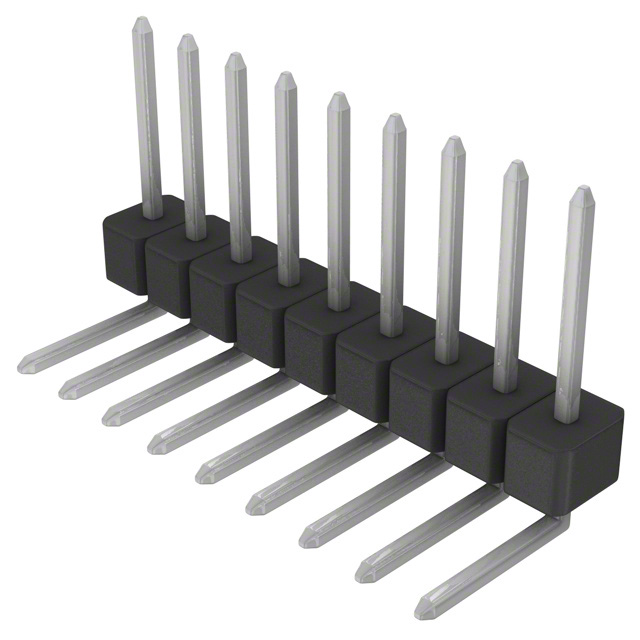

Sullins Connector Solutions PEC09SGBN	2.54 µm	100 µin	Solder	0.318 in	8.08 mm	Header Breakaway	0.1 "	2.54 mm	Square	Phosphor Bronze			Unshrouded	3.56 mm	0.14 in	Polybutylene Terephthalate (PBT)	Male Pin	Board to Board Cable	100 çin	2.54 çm	1	Tin	UL94 V-0	Push-Pull	-65 ░C	125 °C	All	Black	Right Angle Through Hole	9	3 A			5.08 mm	0.2 "

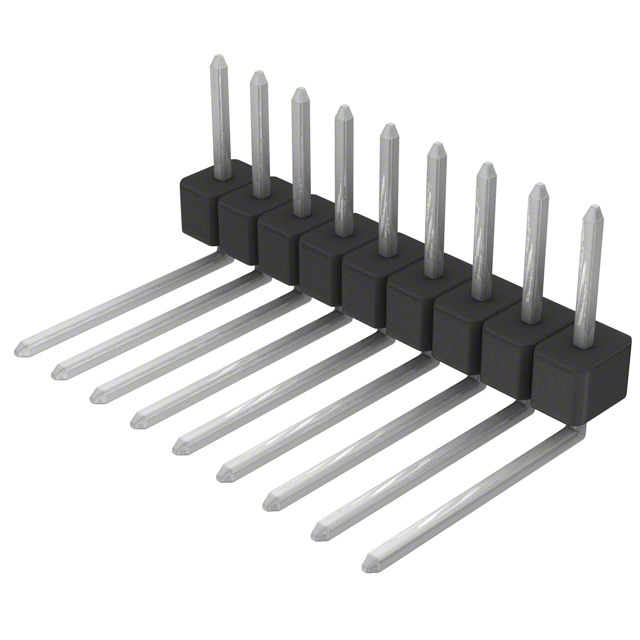

Sullins Connector Solutions PEC09SBDN	2.54 µm	100 µin	Solder	0.23 in	5.84 mm	Header Breakaway	0.1 "	2.54 mm	Square	Phosphor Bronze	0.4 in	10.16 mm	Unshrouded	3.56 mm	0.14 in	Polybutylene Terephthalate (PBT)	Male Pin	Board to Board Cable	100 çin	2.54 çm	1	Tin	UL94 V-0	Push-Pull	-65 ░C	125 °C	All	Black	Right Angle Through Hole	9	3 A

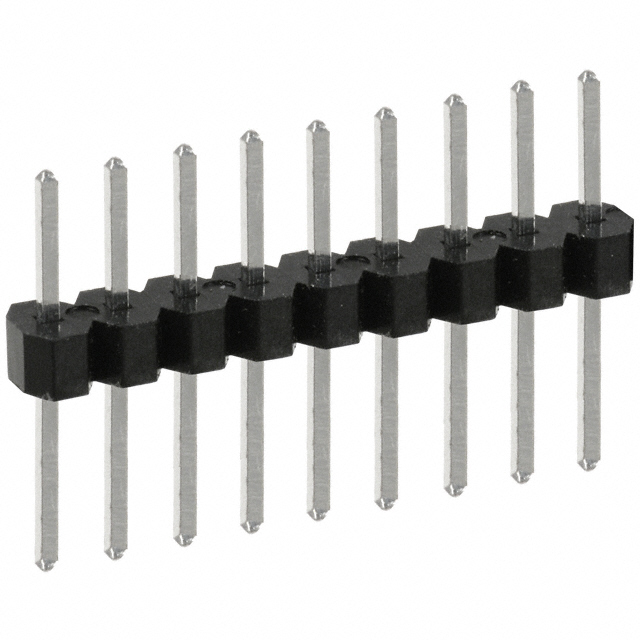

Sullins Connector Solutions PEC09SACN	2.54 µm	100 µin	Solder	0.23 in	5.84 mm	Header Breakaway	0.1 "	2.54 mm	Square	Phosphor Bronze	0.32 in	8.13 mm	Unshrouded	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	Male Pin	Board to Board Cable	100 çin	2.54 çm	1	Tin	UL94 V-0	Push-Pull	-65 ░C	125 °C	All	Black	Through Hole	9	3 A					16.51 mm	0.65 in
Sullins Connector Solutions PEC09DAHN	2.54 µm	100 µin	Solder	0.23 in	5.84 mm	Header Breakaway	0.1 "	2.54 mm	Square	Phosphor Bronze	0.82 in	20.83 mm	Unshrouded	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	Male Pin	Board to Board Cable	100 çin	2.54 çm		Tin	UL94 V-0	Push-Pull	-65 ░C	125 °C	All	Black	Through Hole	18	3 A					29.21 mm	1.15 in	0.1 in	2.54 mm	2

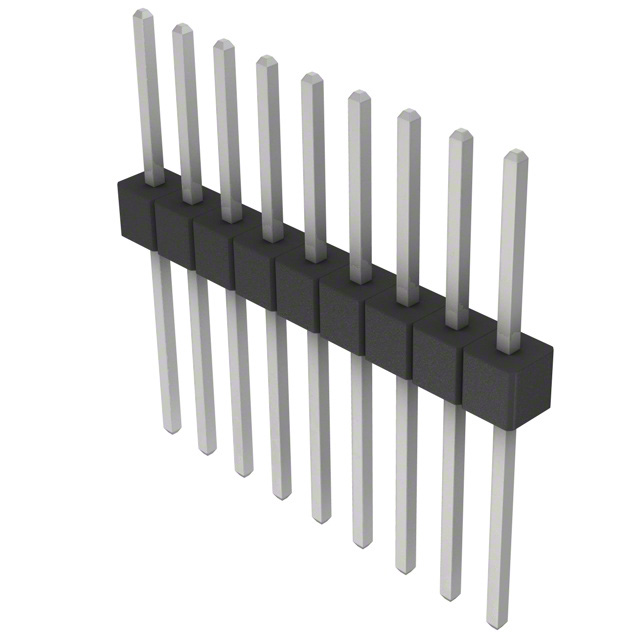

Sullins Connector Solutions PEC09SFDN	2.54 µm	100 µin	Solder	0.318 in	8.08 mm	Header Breakaway	0.1 "	2.54 mm	Square	Phosphor Bronze	0.42 in	10.67 mm	Unshrouded	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	Male Pin	Board to Board Cable	100 çin	2.54 çm	1	Tin	UL94 V-0	Push-Pull	-65 ░C	125 °C	All	Black	Through Hole	9	3 A					21.29 mm	0.838 in

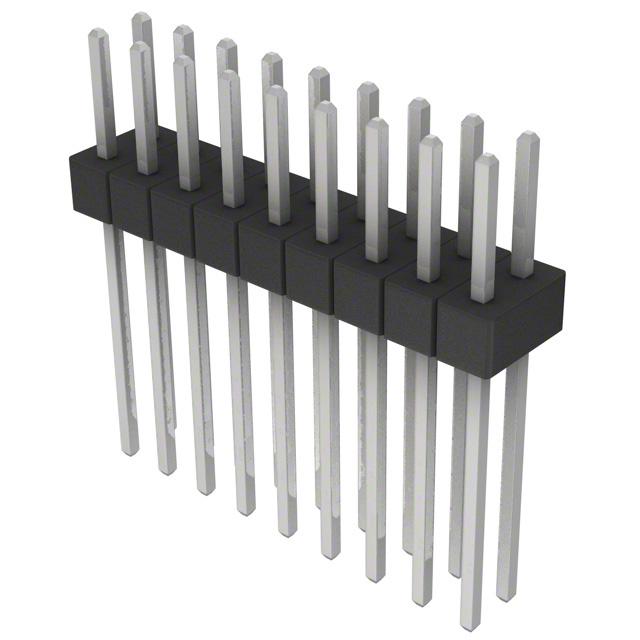

Sullins Connector Solutions PEC09DAEN	2.54 µm	100 µin	Solder	0.23 in	5.84 mm	Header Breakaway	0.1 "	2.54 mm	Square	Phosphor Bronze	0.52 in	13.21 mm	Unshrouded	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	Male Pin	Board to Board Cable	100 çin	2.54 çm		Tin	UL94 V-0	Push-Pull	-65 ░C	125 °C	All	Black	Through Hole	18	3 A					21.59 mm	0.85 in	0.1 in	2.54 mm	2
Sullins Connector Solutions PEC09DGBN	2.54 µm	100 µin	Solder	0.318 in	8.08 mm	Header Breakaway	0.1 "	2.54 mm	Square	Phosphor Bronze			Unshrouded			Polybutylene Terephthalate (PBT)	Male Pin	Board to Board Cable	100 çin	2.54 çm		Tin	UL94 V-0	Push-Pull	-65 ░C	125 °C	All	Black	Right Angle Through Hole	18	3 A			5.08 mm	0.2 "			0.1 in	2.54 mm	2	6.1 mm	0.24 in
Sullins Connector Solutions PEC09SAEN	2.54 µm	100 µin	Solder	0.23 in	5.84 mm	Header Breakaway	0.1 "	2.54 mm	Square	Phosphor Bronze	0.52 in	13.21 mm	Unshrouded	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	Male Pin	Board to Board Cable	100 çin	2.54 çm	1	Tin	UL94 V-0	Push-Pull	-65 ░C	125 °C	All	Black	Through Hole	9	3 A					21.59 mm	0.85 in
