JF15CP Series

Catalog

TACTILE SWITCH, JF SERIES, TOP ACTUATED, THROUGH HOLE, ROUND BUTTON, 300 GF, 50MA AT 24VDC

Part	Actuator Material	Mechanical Life	Switch Travel	Actuator Height off PCB, Vertical	Operating Force	Illumination	Circuit	Outline [diameter]	Actuator Orientation	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Type	Features	Termination Style	Contact Rating @ Voltage

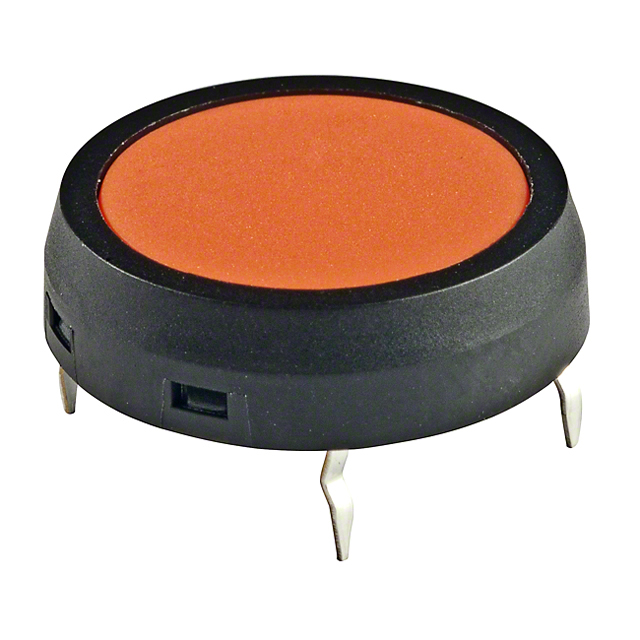

NKK Switches JF15CP2D	Polyamide (PA) Nylon	500000 Cycles	0.4 mm	5.08 mm	300 gf	Non-Illuminated	SPST-NO	17.7 mm	Top Actuated	Off-Mom	85 °C	-25 °C	Through Hole	Round Button	Process Sealed	PC Pin	0.05 A 24 VDC

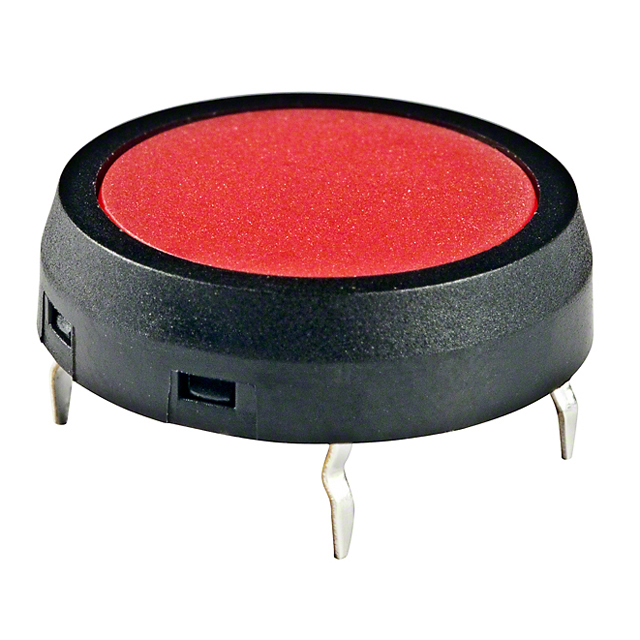

NKK Switches JF15CP2C	Polyamide (PA) Nylon	500000 Cycles	0.4 mm	5.08 mm	300 gf	Non-Illuminated	SPST-NO	17.7 mm	Top Actuated	Off-Mom	85 °C	-25 °C	Through Hole	Round Button	Process Sealed	PC Pin	0.05 A 24 VDC

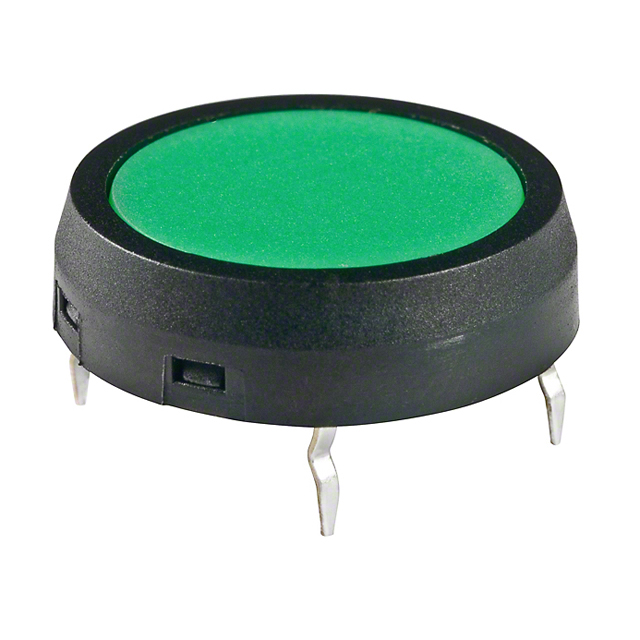

NKK Switches JF15CP2F	Polyamide (PA) Nylon	500000 Cycles	0.4 mm	5.08 mm	300 gf	Non-Illuminated	SPST-NO	17.7 mm	Top Actuated	Off-Mom	85 °C	-25 °C	Through Hole	Round Button	Process Sealed	PC Pin	0.05 A 24 VDC
NKK Switches JF15CP1G	Polyamide (PA) Nylon	500000 Cycles	0.4 mm	5.08 mm	300 gf	Non-Illuminated	SPST-NO	17.7 mm	Top Actuated	Off-Mom	85 °C	-25 °C	Through Hole	Round Button	Process Sealed	PC Pin	0.05 A 24 VDC

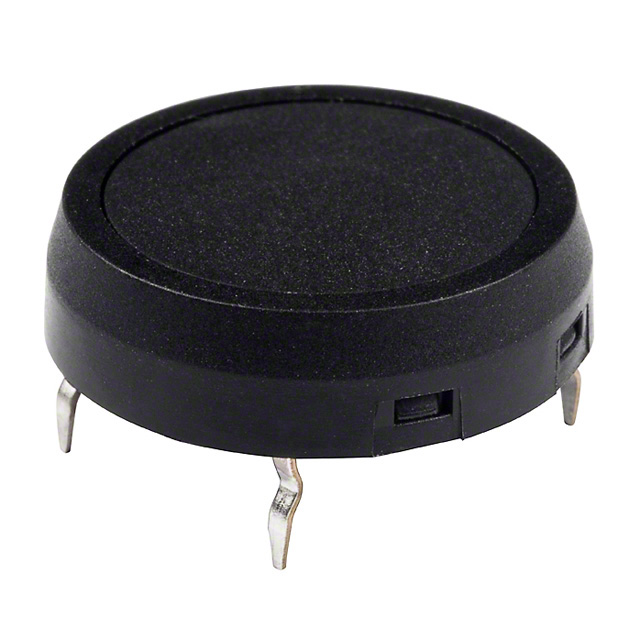

NKK Switches JF15CP2A	Polyamide (PA) Nylon	500000 Cycles	0.4 mm	5.08 mm	300 gf	Non-Illuminated	SPST-NO	17.7 mm	Top Actuated	Off-Mom	85 °C	-25 °C	Through Hole	Round Button	Process Sealed	PC Pin	0.05 A 24 VDC

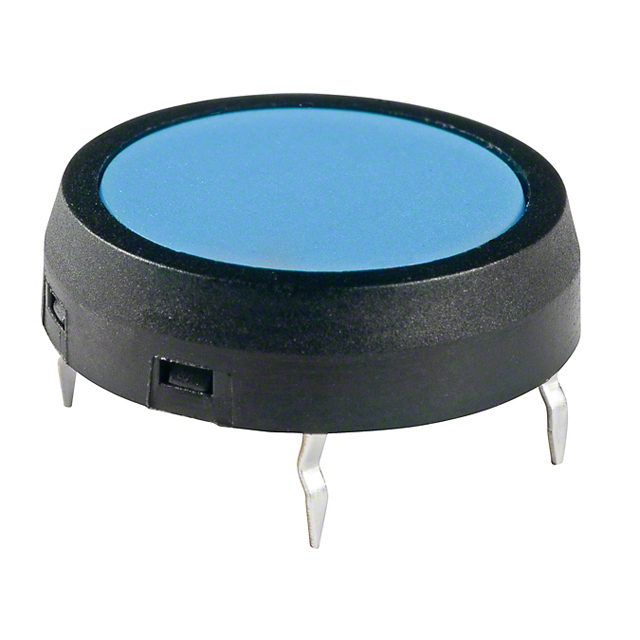

NKK Switches JF15CP2G	Polyamide (PA) Nylon	500000 Cycles	0.4 mm	5.08 mm	300 gf	Non-Illuminated	SPST-NO	17.7 mm	Top Actuated	Off-Mom	85 °C	-25 °C	Through Hole	Round Button	Process Sealed	PC Pin	0.05 A 24 VDC
