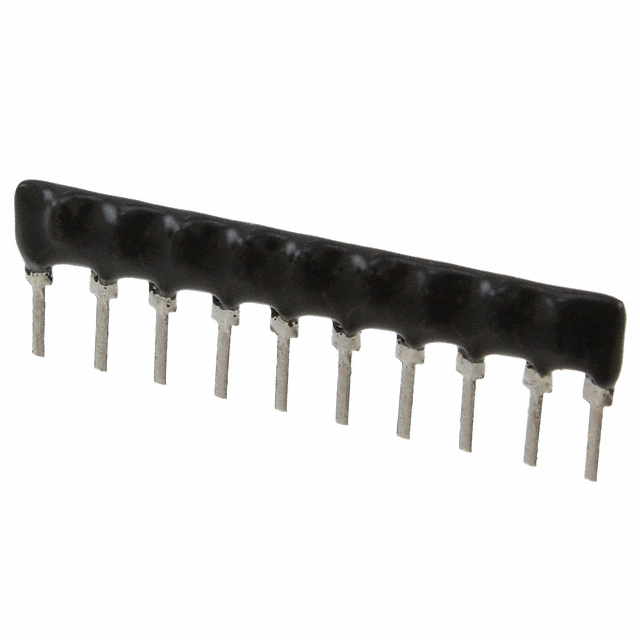

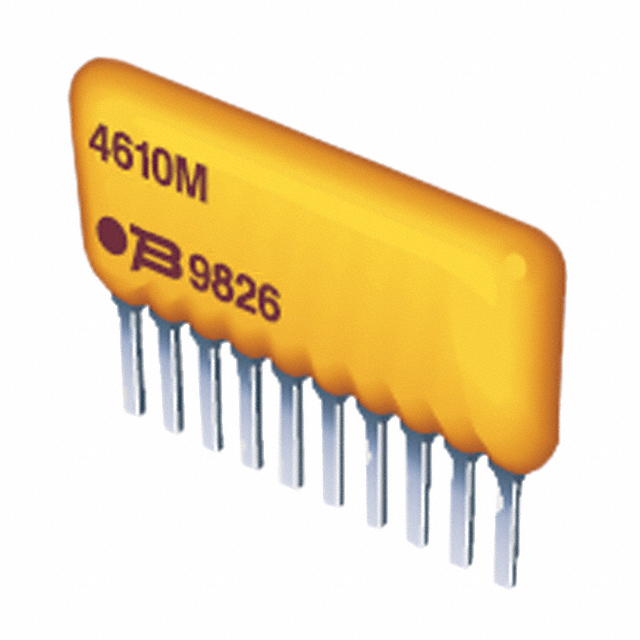

4610M Series
Manufacturer: Bourns Inc.
Beta
⌘K
CAP ARRAY 1000PF 50V X7R 10SIP
| Part | Number of Capacitors | Circuit Type | Mounting Type | Capacitance | Tolerance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Temperature Coefficient | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Rated | Package / Case | Temperature Coefficient | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Supplier Device Package | Resistor-Ratio-Drift | Operating Temperature [Min] | Operating Temperature [Max] | Resistance (Ohms) [custom] | Number of Pins | Power Per Element | Number of Resistors | Resistance (Ohms) | Resistance (Ohms) | Number of Resistors [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 9 | Bussed | Through Hole | 0.001 µF | 20 % | 5.08 mm | 0.2 in | X7R | 3.81 mm | 0.998 in | 25.35 mm | 0.15 " | 50 VDC | 10-SIP | ||||||||||||||
 Bourns Inc. | Bussed | Through Hole | 2 % | 2.49 mm | 0.998 in | 25.35 mm | 0.098 in | 10-SIP | 100 ppm/°C | 6.35 mm | 0.25 in | 10-SIP | 50 ppm/°C | -55 C | 125 °C | 2.7 k | 10 | 250 mW | 9 | |||||||||
Bourns Inc. | Bussed | Through Hole | 2 % | 2.49 mm | 0.998 in | 25.35 mm | 0.098 in | 10-SIP | 100 ppm/°C | 6.35 mm | 0.25 in | 10-SIP | 50 ppm/°C | -55 C | 125 °C | 10 | 250 mW | 9 | 33 kOhms | |||||||||
Bourns Inc. | 9 | Bussed | Through Hole | 100000 pF | 20 % | 5.08 mm | 0.2 in | X7R | 3.81 mm | 0.998 in | 25.35 mm | 0.15 " | 50 VDC | 10-SIP | ||||||||||||||
Bourns Inc. | Isolated | Through Hole | 2 % | 2.49 mm | 0.998 in | 25.35 mm | 0.098 in | 10-SIP | 100 ppm/°C | 6.35 mm | 0.25 in | 10-SIP | 50 ppm/°C | -55 C | 125 °C | 100 Ohms | 10 | 400 mW | 5 | |||||||||
Bourns Inc. | Bussed | Through Hole | 2 % | 2.49 mm | 0.998 in | 25.35 mm | 0.098 in | 10-SIP | 100 ppm/°C | 6.35 mm | 0.25 in | 10-SIP | 50 ppm/°C | -55 C | 125 °C | 3.3 kOhms | 10 | 250 mW | 9 | |||||||||
Bourns Inc. | Bussed | Through Hole | 2 % | 2.49 mm | 0.998 in | 25.35 mm | 0.098 in | 10-SIP | 100 ppm/°C | 6.35 mm | 0.25 in | 10-SIP | 50 ppm/°C | -55 C | 125 °C | 10 | 250 mW | 9 | 10k | |||||||||
Bourns Inc. | Dual Terminator | Through Hole | 2 % | 2.49 mm | 0.998 in | 25.35 mm | 0.098 in | 10-SIP | 100 ppm/°C | 6.35 mm | 0.25 in | 10-SIP | 50 ppm/°C | -55 C | 125 °C | 120 Ohms 150 Ohms | 10 | 250 mW | 16 | |||||||||
Bourns Inc. | Dual Terminator | Through Hole | 2 % 2 Ohm | 2.49 mm | 0.998 in | 25.35 mm | 0.098 in | 10-SIP | 100 ppm/°C | 6.35 mm | 0.25 in | 10-SIP | 50 ppm/°C | -55 C | 125 °C | 10 | 250 mW | 50 Ohms | 10k | 16 | ||||||||
Bourns Inc. | Dual Terminator | Through Hole | 2 % | 2.49 mm | 0.998 in | 25.35 mm | 0.098 in | 10-SIP | 100 ppm/°C | 6.35 mm | 0.25 in | 10-SIP | 50 ppm/°C | -55 C | 125 °C | 10 | 250 mW | 25k 50k | 16 |
