SST-90 Series

Catalog

LED SST-90 RED 623NM SMD

Part	Thermal Resistance of Package	Color	Supplier Device Package	Temperature - Test	Luminous Flux @ Current/Temperature	Viewing Angle	Lumens/Watt @ Current - Test	Package / Case	Voltage - Forward (Vf) (Typ)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Test	Mounting Type	Current - Max [Max]	Wavelength	Wavelength [Max]	Wavelength [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Type	Light Emitting Surface (LES) [diameter]	Height [z]	Lens Type	CRI (Color Rendering Index)	Configuration	CCT (K)

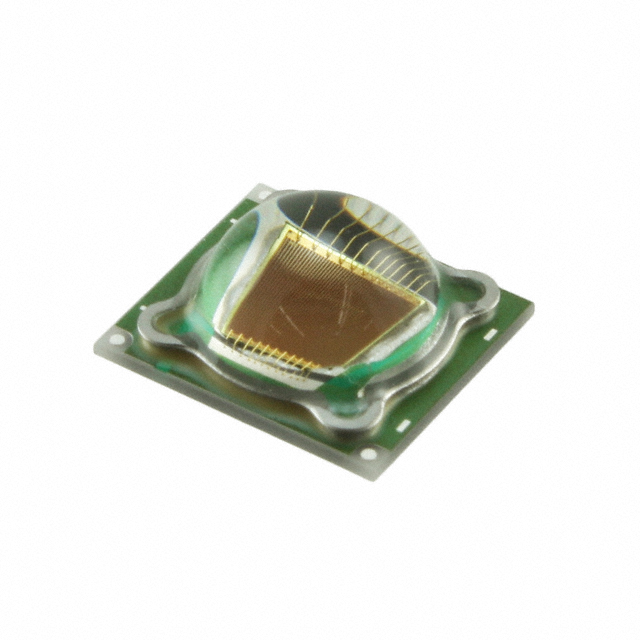

Luminus Devices Inc. SST-90-R-F11-HH101	0.64 °C/W	Red	SMD	25 °C	350 lm	28 °	53 lm/W	0404 (1010 Metric)	2.1 V	5.45 mm	0.215 in	3.15 A	Surface Mount	18 A	623 nm	627 nm	619 nm	0.433 in	0.394 in	10 mm	11 mm

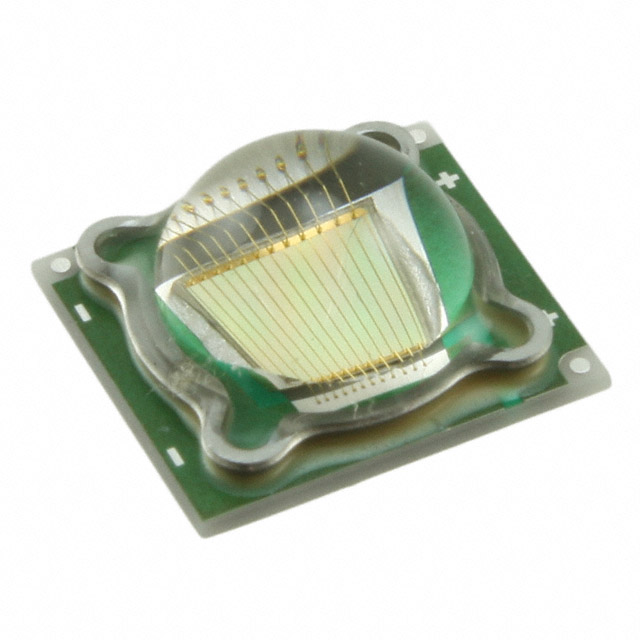

Luminus Devices Inc. SST-90-G-F11-JG201		Green		25 °C	855 lm	100 °	80 lm/W		3.4 V			3.15 A		27 A	537 nm			11 mm	10 mm			Chip On Board (COB)	8 mm	5.4 mm	Domed	70	Square
Luminus Devices Inc. SST-90-G-F11-JJ201		Green		25 °C	855 lm	100 °	80 lm/W		3.4 V			3.15 A		27 A	537 nm			11 mm	10 mm			Chip On Board (COB)	8 mm	5.4 mm	Domed	70	Square

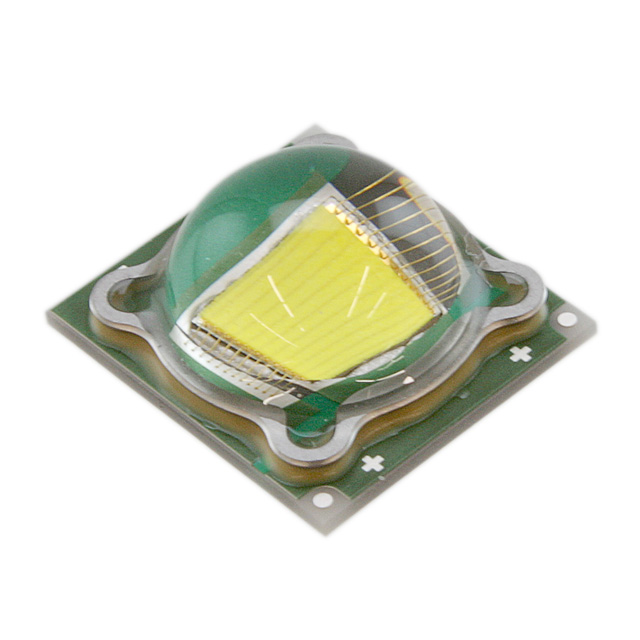

Luminus Devices Inc. SST-90-W57S-F11-N2200		Cool White		25 °C	925 lm	100 °	90 lm/W		3.25 V			3.15 A		9 A				11 mm	10 mm			Chip On Board (COB)	8 mm	5.4 mm	Domed	70	Square	5700 K

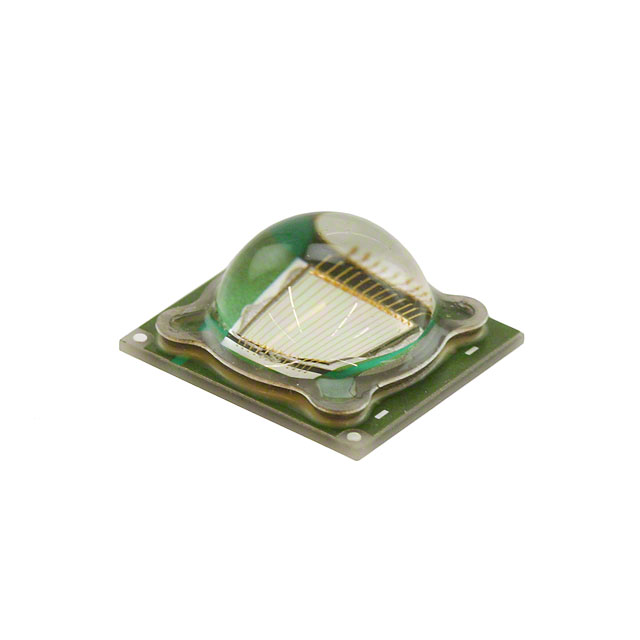

Luminus Devices Inc. SST-90-B-F11-KG300		Blue		25 °C	180 lm	100 °	17 lm/W		3.4 V			3.15 A		27 A	465 nm			11 mm	10 mm			Chip On Board (COB)	8 mm	5.4 mm	Domed	70	Square
Luminus Devices Inc. SST-90-W65S-T11-N3102		Cool White		25 °C	975 lm	100 °	95 lm/W		3.25 V			3.15 A		9 A				11 mm	10 mm			Chip On Board (COB)	8 mm	5.4 mm	Domed	70	Square	6500 K
