2304525 Series

Catalog

AMP DUOPLUG MK2 CONNECTOR 6P

Part	Features	Contact Type	Number of Positions	Connector Type	Number of Rows	Mounting Type	Cable Termination	Pitch [x]	Pitch [x]	Wire Gauge [Max]	Wire Gauge [Min]	Wire Type
TE Connectivity Raychem Cable Protection 1-2304525-6	Glow Wire Compliant Mates to PCB	Female Blade Socket	6	Receptacle	1	Free Hanging (In-Line) Right Angle	IDC	0.098 in	2.5 mm	24 AWG	22 AWG	Discrete

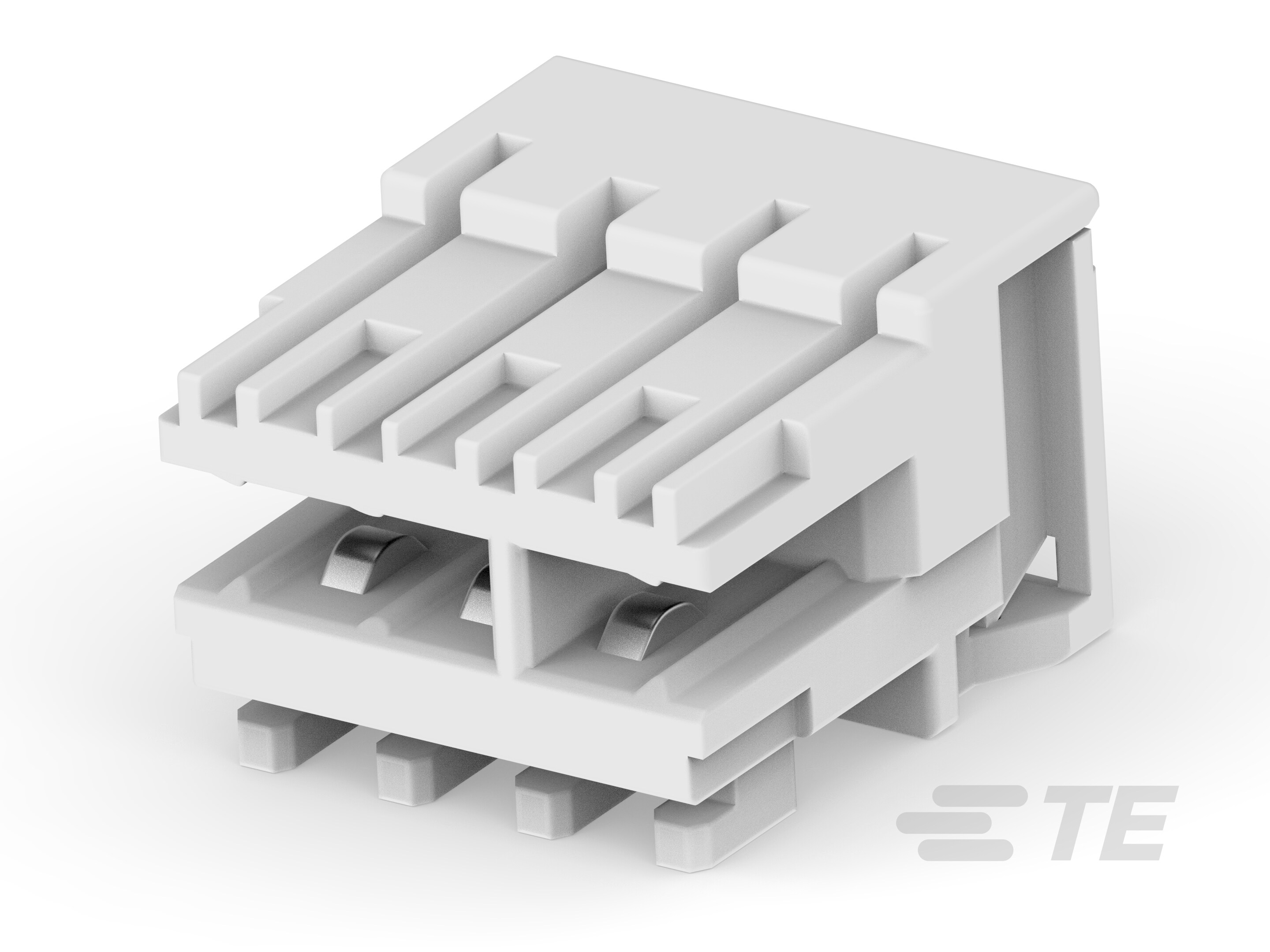

TE Connectivity Raychem Cable Protection 3-2304525-3	Glow Wire Compliant Mates to PCB	Female Blade Socket		Receptacle	1	Free Hanging (In-Line) Right Angle	IDC	0.098 in	2.5 mm	24 AWG	22 AWG	Discrete
TE Connectivity Raychem Cable Protection 2-2304525-4	Glow Wire Compliant Mates to PCB	Female Blade Socket	4	Receptacle	1	Free Hanging (In-Line) Right Angle	IDC	0.098 in	2.5 mm	24 AWG	22 AWG	Discrete
TE Connectivity Raychem Cable Protection 1-2304525-3	Glow Wire Compliant Mates to PCB	Female Blade Socket		Receptacle	1	Free Hanging (In-Line) Right Angle	IDC	0.098 in	2.5 mm	24 AWG	22 AWG	Discrete
TE Connectivity Raychem Cable Protection 2304525-7	Glow Wire Compliant Mates to PCB	Female Blade Socket	7	Receptacle	1	Free Hanging (In-Line) Right Angle	IDC	0.098 in	2.5 mm	24 AWG	22 AWG	Discrete
